Four Zone Casino

Audio System Requirements

  1. 4 zones, each with stereo BGM (background music) and wall panel controllers for source selection/volume control.
  2. Support for mobile device control of source selection/volume control in each zone.
  3. 2 remotely located page microphones connected to a single DSP processor via a Dante™ network.
  4. Page zone selection using a 4-button wall panel at each page station location.
  5. Programmable automatic page over music “ducking” of BGM in all zones.
  6. Ambient noise controlled automatic music volume adjustment in each zone.
  7. Secure super-user Windows® control screen located in the managers office.
  8. Audio system MUTE ALL function triggered from a fire/emergency alarm system.
  9. Comprehensive loudspeaker management in all four zones to include parametric EQ, high and low pass 48dB/octave filter, comp/liming, delay and mute.

Symetrix Components

QTY Description Notes
1 Radius 12×8 EX 12 mic/line in, 8 line out DSP (uses Dante network for expansion).
1 xIn 4 Analog input expander (uses Dante network to link to DSP).
4 ARC-3 Capacitive touch wall panel controller with graphic display.
2 ARC-SW4e Programmable 4 push-button wall panel.
1 ARC-PSe Power supply for ARC-3’s and ARC-SW4e’s.
1 Composer Windows software – design & configure items 1-5, 7, 8.
1 SymVue Windows runtime control interface software – generated from Composer.
1 ARC-WEB Embedded control server running on Radius 12×8 EX.

Solution Overview

Requirement Notes
BGM selection on volume control An ARC-3 wall panel is installed in each of the four zones.
Two paging microphones The mics are connected to the xIn 4. Page signals transmitted via Dante network to Radius 12×8 EX
Zone selection from each page mic An ARC-SW4e is mounted in close proximity to each page mic for destination zone selection.
Ambient level control of music in 4 zones Radius 12×8 EX programmed with Symetrix proprietary SPL algorithms.
Secure super-user control screen Composer generated Windows file for use by administrative staff only.
Fire/emergency audio MUTE ALL Third-party alarm system logic wired to Radius 12×8 EX external control input triggers a Mute All state.
Mobile BYOD browser based control of music source and volume in each zone Radius 12×8 EX embedded ARC-WEB server is programmed from Composer to control source selection and volume in parallel with ARC-SW4e wall panels in each zone.
Comprehensive loudspeaker management Radius 12×8 EX programmed from Composer with Speaker Manager and Compressor modules.
Automatic ducking Radius 12×8 EX programmed from Composer with Ducker modules in all 4 zones.
Radius 12x8 EX with Composer and ARC-WEB

Radius 12x8 EX

  • Universal DSP building block with a 64×64 channel Dante™ network audio port.
  • 12 analog mic/line inputs and 8 analog outputs.
  • Configurable input/output option card slot reduces total system cost.
  • Industry leading audio performance specifications..

View Product

Dante I/O Expanders

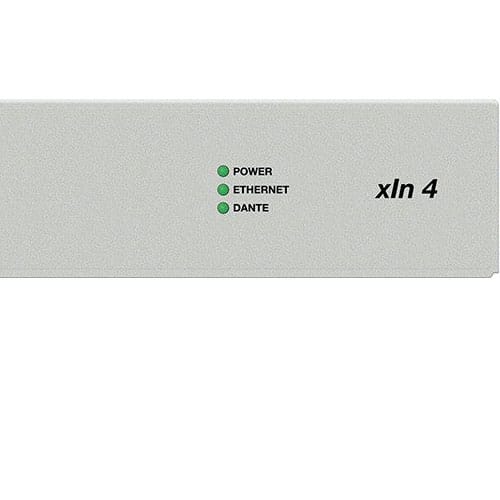

xIn 4

  • 4 channel analog input expander with a 4 channel Dante™ network audio output.
  • Programmed using Composer.
  • Industry leading audio performance specifications.
  • 1/2 rack form factor. Options for surface or rack mounting.

View Product

ARC-PSe Front and Rear

ARC-PSe

  • Versatile half-rack power supply distributes power and data to multiple ARC wall panels via eight RJ-45 connectors over long distances.
  • Connects directly to Edge, Radius, Prism and Jupiter DSPs using standard CAT5/6 cables.
  • Supports flexible ‘star’ configuration, ‘daisy-chain’ or a hybrid of the two.

View Product

ARC-SW4e Front

ARC-SW4e

  • Modular user wall panel with four buttons that are programmable as momentary, latched or radio.
  • Well-suited for control of mute, source selection and presets.
  • Tri-color LEDs provide user feedback. LEDs and buttons may be linked programmed independently.

View Product

ARC-3 Front

ARC-3

  • 32 menus, each with up to 32 items for controlling basic audio functions or complex logic-based events including volume, preset and source selection, room combining and more.
  • Bright, crisp 256×64 pixel OLED display is graphic and multi-lingual capable.
  • Capacitive touch user interface with LED side lighting provides instant operational feedback.

View Product

Composer Software

Composer

  • Composer is an award winning CAD program used to create site file designs perfectly suited to each and every application.
  • Management of all aspects of audio routing, processing, mixing, user control and security for Edge, Radius and Prism series DSPs and accessories.
  • Native configuration and control of select Dante third-party endpoints.
  • Over 600 DSP modules and dozens of control and logic modules.

View Product

House of Worship SymVue Screen

SymVue

  • SymVue is a network-based application for Windows PCs, touchscreen PCs, and tablets.
  • Control screens are authored in Composer from which SymVue runtime versions are generated.
  • Important control parameters from one or multiple DSPs are easily consolidated onto user friendly screens.
  • Multiple and concurrent instances of SymVue may be deployed across a control network.
  • Parameter changes are always in sync between Composer, ARC Wall Panels, ARC-WEB, third-party controllers, and SymVue.

View Product

ARC-WEB

ARC-WEB

  • Use a web browser running on a mobile and desktop device to control audio via embedded web servers running on Edge, Radius, Prism and Jupiter DSPs.
  • End users control volume, mute, source selection and other parameters of their sound systems using favorite browsers.
  • Flexible and secure. Up to four users can be assigned a different ARC-WEB with unique privileges and security.
  • Installation is simple. Just connect the DSP to a low cost wireless access point.
  • Using a mobile device, management can roam between zones to adjust source and volume, matching the functionality of the local ARC wall panels in each zone.

View Product

System Hookup Diagram

CasinoDiagram_01_200dpi

Downloads and Links

Four Zone Casino – Composer Site File
Four Zone Casino – SymVue Windows File
Four Zone Casino – System Hookup Diagram
Four Zone Casino – Download Application Note
Questions? / Comments? – Symetrix Tech Support
