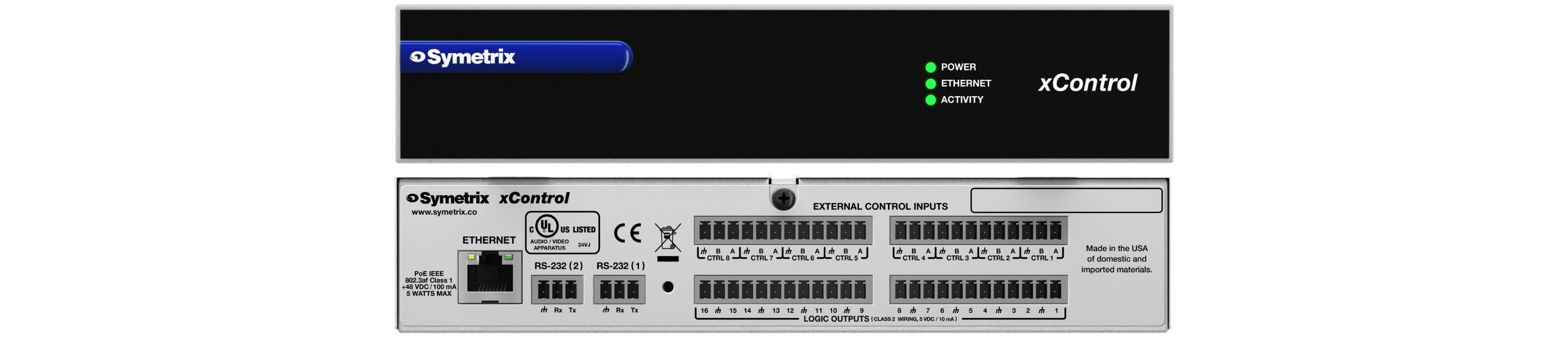

xControl Expander

Add and Scale External Control

xControl expands external control capabilities of Symetrix IP DSP’s making it especially useful in conferencing and paging applications.

Scaling Up Your Control Capabilities

PoE
Integrated Applications
RS-232 control

Additional GPIO for Control

Capabilities

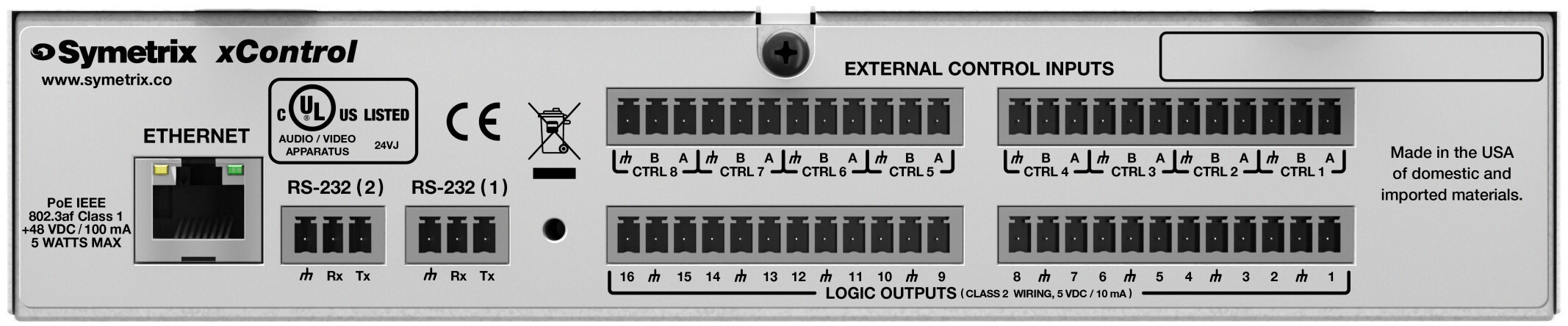

Control Inputs

Configure each of the 8 analog control inputs with either 1 potentiometer or 2 switches for flexible usage.

Logic Outputs

Use the versatile 16 logic outputs to drive LEDs, trigger external relays, or control contact closure ports.

RS-232

Configure either of the 2 RS-232 ports to issue or receive commands to or from third-party control systems.

PoE

Keep installation simple with single cable connectivity utilize power over Ethernet eliminating the need for external power supplies and a half-rack form factor to mount where convenient.

Key Features

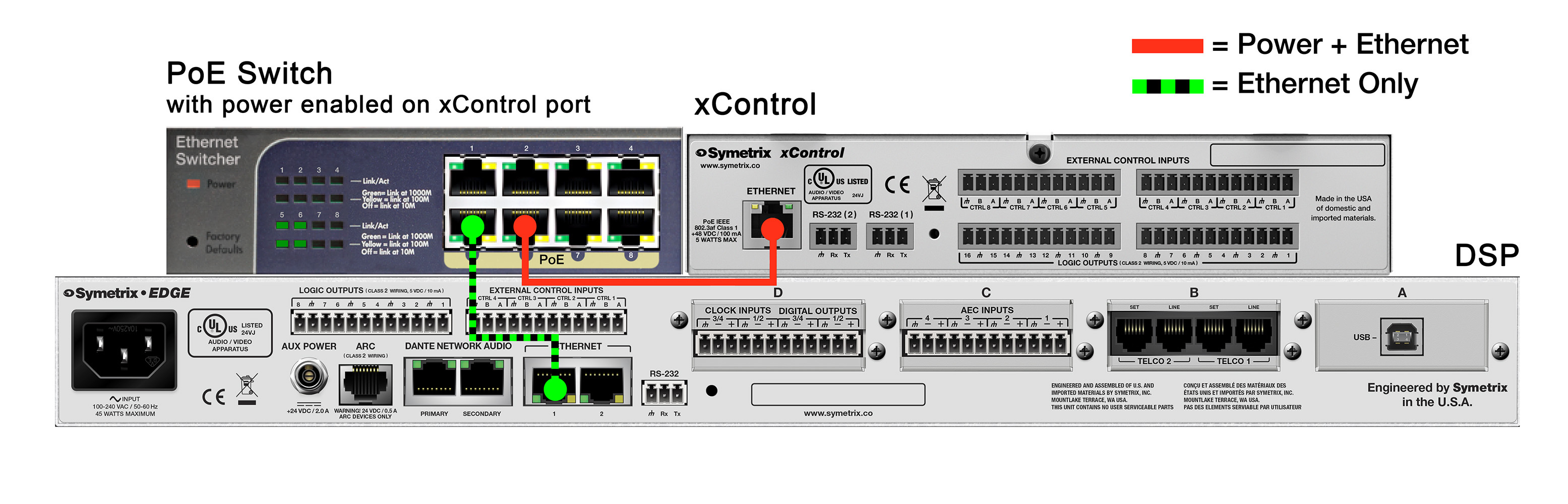

Powered via PoE with switch or injector
Applications include adding push-to-talk capability and LED activity indication in conferencing and paging applications.

RS-232 projector, camera, and lighting control.

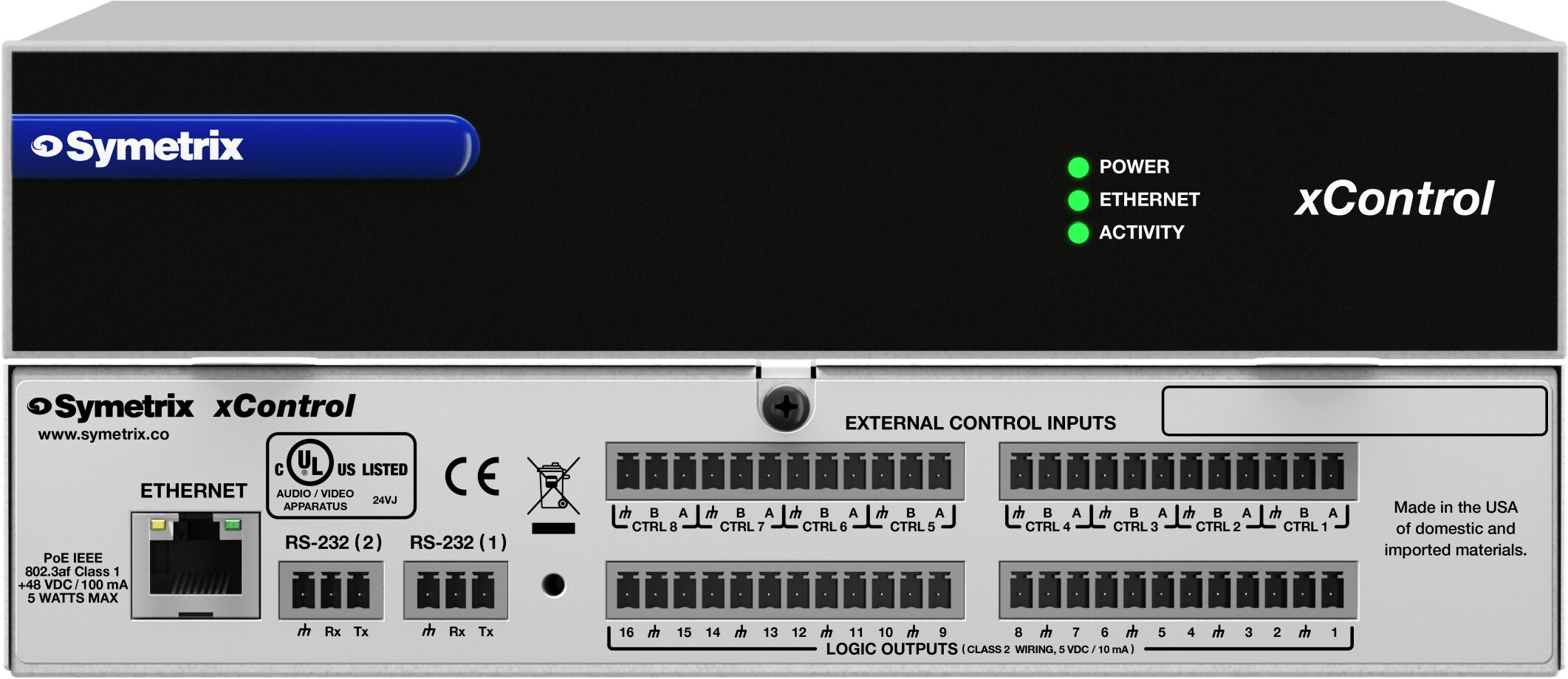

Multiple xControls may be combined.
Half-rack form factor design for mounting in optional 1U rack tray or surface mount with optional bracket.

Control Capabilities

Programmable with Symetrix Composer software
Analog/ Logic Control Inputs, Logic Outputs
The 8 flexible analog control inputs are configurable for 1 potentiometer or 2 switches.
16 logic outputs to drive LEDs, external relays, or control contact closure ports.
Either of the 2 RS-232 ports is configurable to receive commands from, or issue commands to third-party control systems and devices.

Power and Connectivity

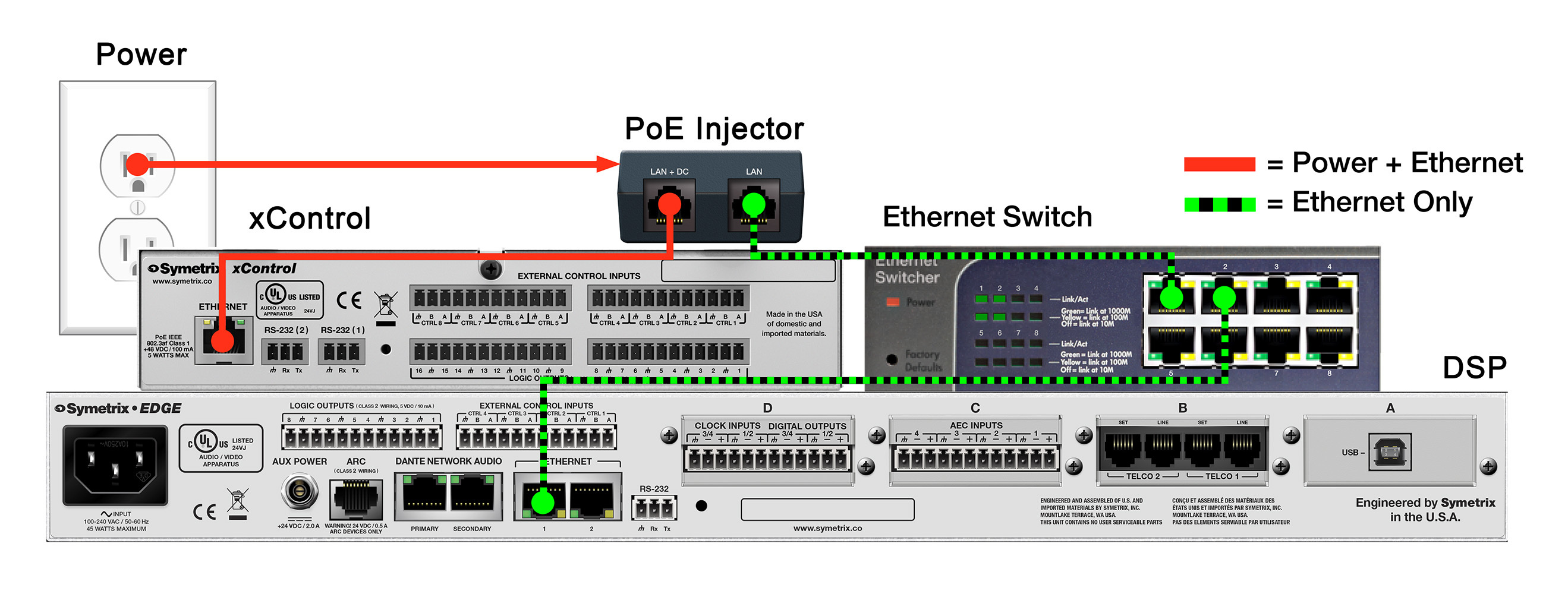

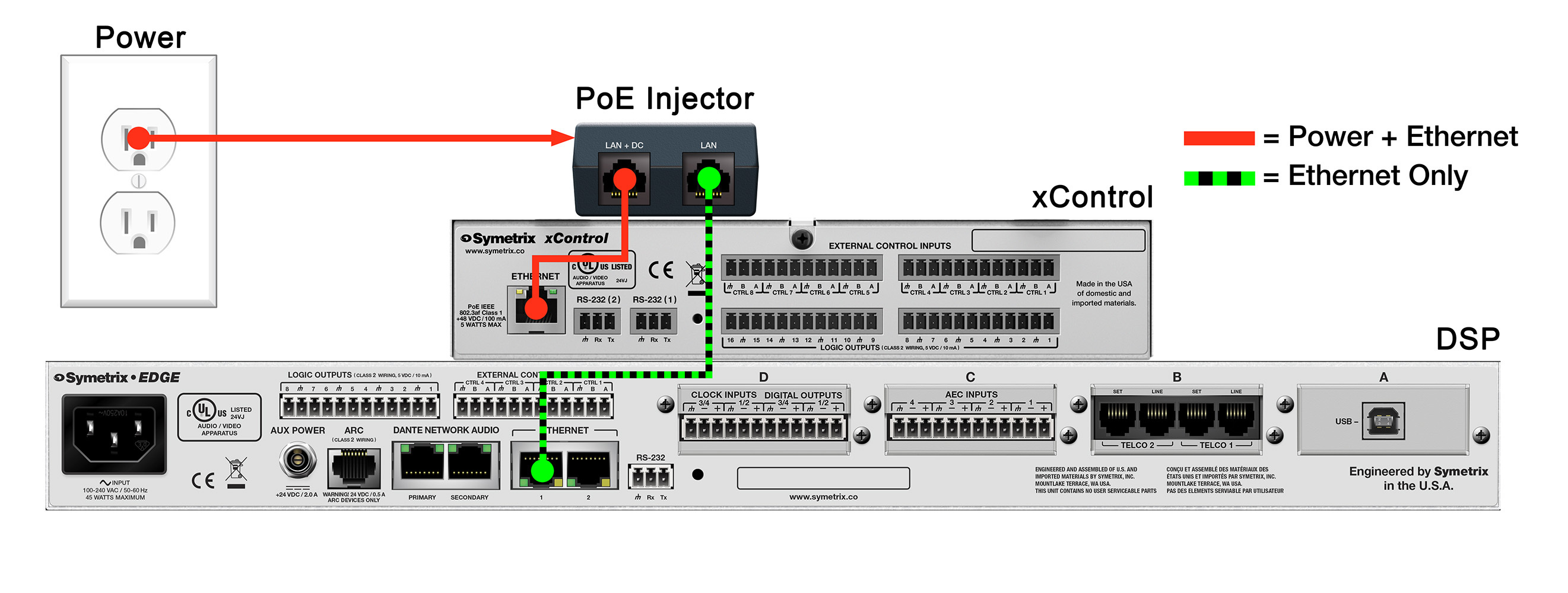

Powered via PoE (Switch or Injector). PoE injector included.
Multiple xControls may be combined.

Use Cases

Applications include adding push-to-talk capability and LED activity indication
in conferencing and paging applications.

Form Factor

Flexible 1/2 rack form factor for mounting in an optional 1U rack tray or surface mount with optional bracket.

Models	P/N
xControl	80-0089

	Specification	Detail
System Specifications	Reference Voltage	3.3 VDC

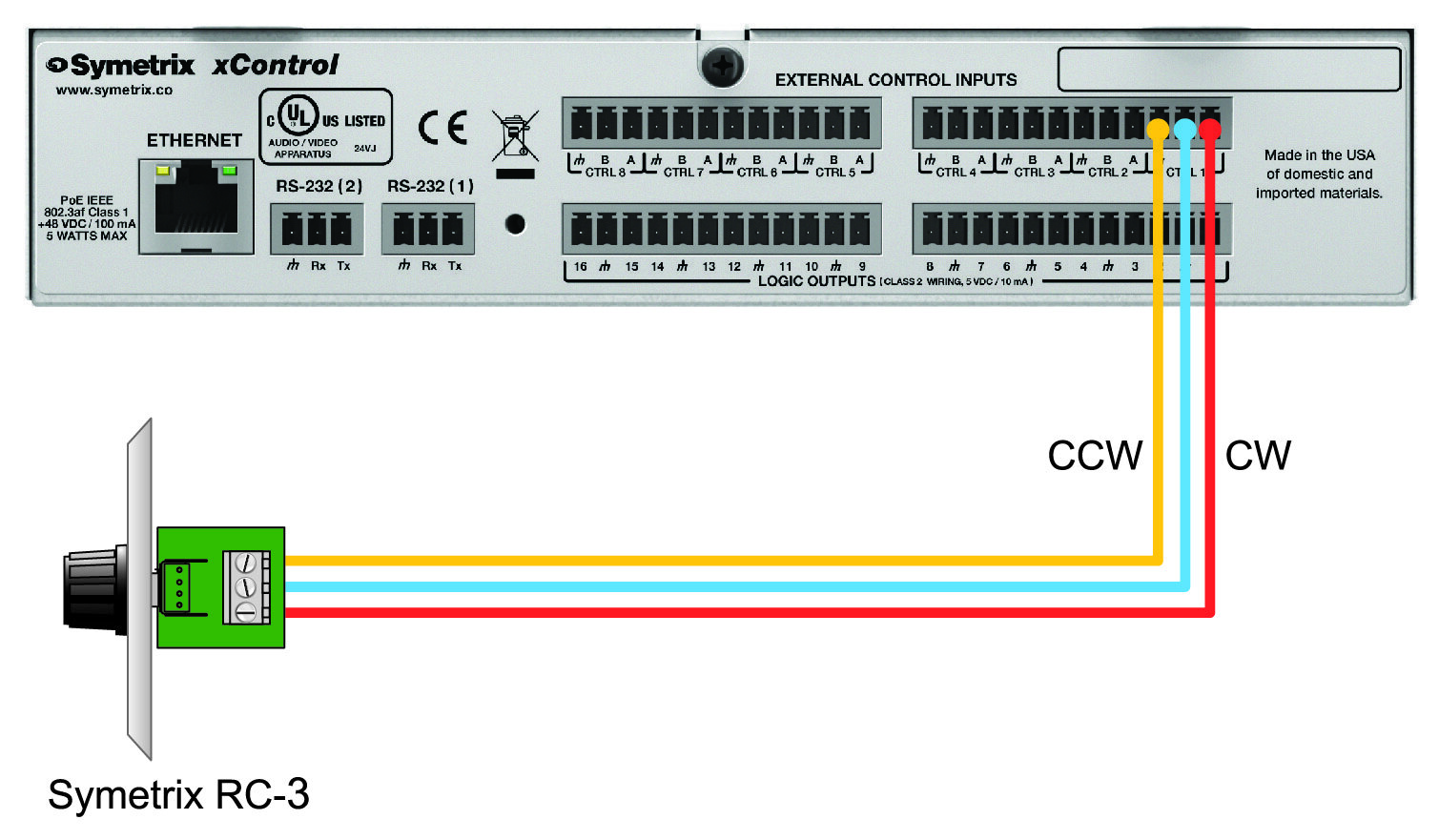

	Recommended External Control Potentiometer	10k Ohms linear taper
	Logic Output Maximum Output Current	10 mA
	Logic Output Maximum External Power Supply / Current Sinking	50 mA
	Ethernet Cable	Standard CAT5/6, maximum device-to-device length = 100 m
Mechanical Specifications	Space Required	Half rack unit; WDH: 8.2 in. (20.83 cm) x 9 in. (22.86 cm) x 1.72 in. (4.37 cm); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
	Electrical	PoE IEEE 802.3af Class 1, 6 Watts maximum. No line voltage switching required.
	Ventilation	Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
	Certifications and Compliance	UL 60065; cUL 60065; IEC 60065; EN 55103-1; EN 55103-2; FCC Part 15; RoHS
	Shipping Weight	4.4 lbs. (2.0 kg)
Inputs and Outputs	Number of External Control Inputs	8 to 16 total; each configurable to accommodate 1 potentiometer or 2 closures for a maximum of 8 potentiometers or 16 closures.
	Connector	3.81 mm terminal blocks
	Number of Logic Outputs	16; each capable of driving an LED directly, triggering an external relay or sinking external voltage/current. Low (0 VDC) when active, pulled high (5 VDC) when inactive.
	Logic Output Connectors	3.81 mm terminal blocks
	Logic Output Maximum Voltage	5 VDC
	Maximum External Power Supply Voltage	24 VDC
	Number of RS-232 Ports	2
	RS-232 Port Connectors	3.81 mm terminal blocks
	RS-232 Port Parameter	57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required.
