xIO Audio Expanders with Dante
- Designed for Use with Symetrix Dante-enabled DSPs
- Software Setup Using Composer
- Low Cost Way to Increase System Analog I/O Capacity
- Ultra Low Latency – No Audible Delays
- Top of the Line Specifications
Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.
xIO Stage 4×4
- Premium 4 IN x 4 OUT Dante digital snake.
- Neutrik metal body DL series XLR connectors.
- 14 gauge A1008 steel construction.
- Easy Installation
- Wall or floor mounted.
- Easily mounts in 8″ x 8″ x 4″ NEMA Junction Box with 7″ opening.

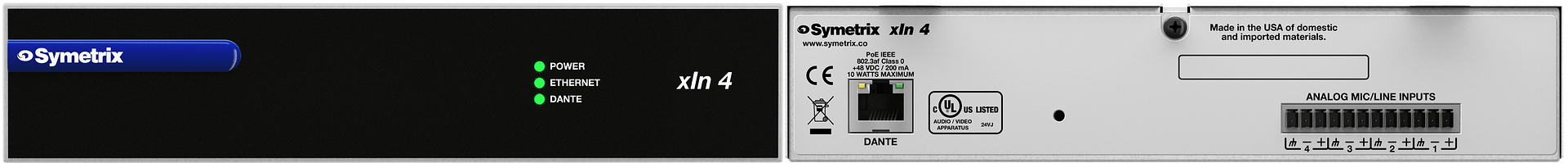

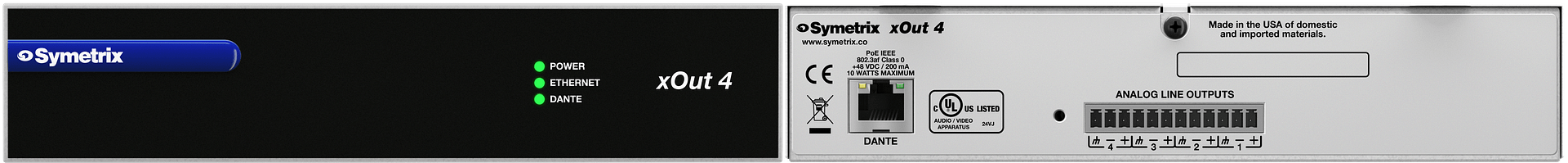

xIn 4 | xOut 4 | xIO 4×4
- 1/2 Rack Form Factor.
- PoE – injectors included.
- xIn 4 – 4 analog mic/line inputs.
- xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs.
- xOut 4 – 4 analog outputs.
- Optional rack and surface mounting kits sold separately.

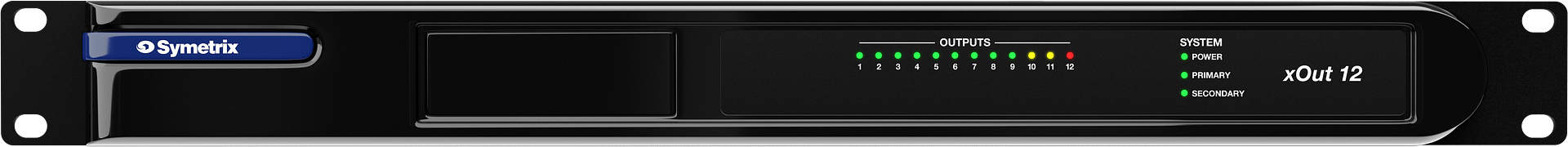

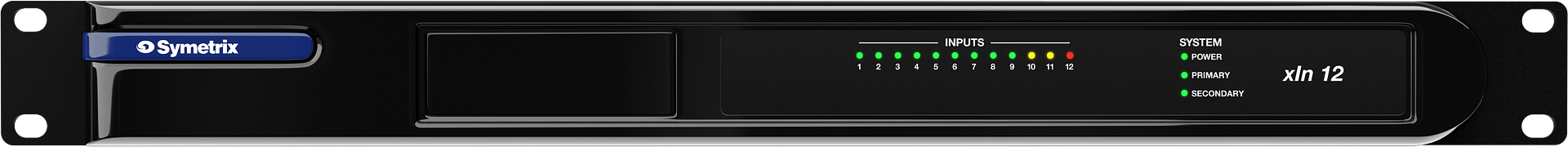

xIn 12 | xOut 12
- Built-in network switches. Direct connections to Radius, Prism and Edge DSP’s.
- Internal power supplies.
- xIn 12 – 12 analog mic/line inputs.
- xOut 12 – 12 analog mic/line outputs.
Hover over image to enlarge
AutoCAD File
- xIO 4×4 AutoCAD Files
- xIn 12 AutoCAD Files
- xIn 4 AutoCAD Files
- xOut 12 AutoCAD Files
- xOut 4 AutoCAD Files
Data Sheets and Product Briefs
Full Line Catalog
Quick Start Guides
- xIO Stage 4×4 Quick Start Guide
- xIn 4, xIO 4×4, xOut 4 Quick Start Guide
- xIn12 and xOut 12 Quick Start Guide
Software and Supporting Documentation
Analog Inputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 110 dB @ 1 kHz, +24 dBu. |
| Connectors | Female Neutrik metal body DL series XLR connectors. |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Nominal Input Level | +4 dBu with 20 dB of headroom (digital). |
| Maximum Input Level | +23 dBu (1% distortion). |
| Mic pre-amp gain | 0, 12, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -125dB with 150 ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom Power (per input) | +48 VDC 10 mA maximum. |
| Dynamic Range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +16 dBu with 0 dB gain. |
| ADC Latency | 0.30 mS. |
Analog Outputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 110 dB @ 1 kHz, +24 dBu. |
| Connectors | Male Neutrik metal body DL series XLR connectors. |
| Number of Outputs | Four (4) balanced line level. |
| Nominal Output Level | +4 dBu with 20 dB of headroom. |
| Maximum Output Level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic Range | > 116 dB, A-weighted. |
| THD + Noise | < -94 dB, unweighted; 1 kHz @ +20 dBu with 0 dB gain. |
| DAC Latency | 0.60 mS. |
System
| Sampling Rate | 48 kHz. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
| Latency | 1.92 mS (input to output, 1mS Dante latency). |
Mechanical Specifications
| Space Required | Minimum requirement of 8”x8”x4” electrical enclosure with 7" opening. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. |
| Certification of Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109, FCC 15.109(g), FCC 15.107, EN 55032, EN 55103-2, EN 61000-3-3, EN 61000-3-2, ICES-003, RoHS. |
| Shipping Weight | 3.7lbs (1.678kg) |
Architect and Engineer Specifications: xIO Stage 4×4
The xIO Stage 4×4 shall provide four XLR analog mic/line inputs that are adjustable from line to mic level with coarse gain and phantom power and four XLR analog line outputs. Levels and phantom power shall be controllable via DSP modules in software. Network audio expansion shall be provided by the Dante protocol. The connector shall be 100 Base-T RJ45 utilizing CAT6 cable. A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® 7 or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the devices via Dante. The front panel shall include indicators for POWER, ETHERNET, and AUDIO BUS. Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 112 dB, A-weighted with a maximum input level of +23 dBu and maximum output level of +24 dBu. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel and is designed to mount in a standard 8”x8”x4” NEMA junction, pull, or switch box. The device shall be a Symetrix xIO Stage 4×4.
Analog Inputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix® connectors. |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127dB with 150 ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
System
| Sampling Rate | 48 kHz, ± 100 ppm. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
Mechanical Specifications
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz). |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
Architect and Engineer Specifications: xIn 4.
The half rack device shall provide four analog mic/line inputs that are adjustable from line to mic level with coarse gain and phantom power. Levels and phantom power shall be controllable via DSP modules in software. Audio connections shall be accessed via rear panel 3.5 mm Phoenix® connectors.
Network audio expansion shall be provided by the Dante protocol. The connector shall be 100 Base-T RJ45 utilizing CAT6 cable.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® 7 or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the devices via Dante.
The front panel shall include indicators for POWER, ETHERNET, and DANTE.
Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 115 dB, A-weighted with a maximum input level of +23 dBu.
The device shall be powered over Ethernet (PoE) by an included 802.3af Class 0 PoE injector. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel, and may be surface mounted or mount into a standard 19” 1U EIA rack using available mounting kits. The device shall be a Symetrix xIn 4.
Analog Inputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix® connectors. |
| Number of Inputs | Four (4) switchable balanced mic or line level. |
| Nominal Input Level | +4 dBu with 20 dB of headroom. |
| Maximum Input Level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127dB with 150 ohm source impedance. |
| CMRR | > 76 dB @ 1 kHz, unity gain. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
Analog Outputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix® connectors. |
| Number of outputs | Four (4) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic range | > 118 dB, A-weighted. |
| THD + Noise | < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
System
| Sampling Rate | 48 kHz, ± 100 ppm. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
Mechanical Specifications
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz). |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
Architect and Engineer Specifications: xIO 4×4.
The half rack device shall provide four analog mic/line inputs that are adjustable from line to mic level with coarse gain and phantom power and four analog line outputs. Levels and phantom power shall be controllable via DSP modules in software. Audio connections shall be accessed via rear panel 3.5 mm Phoenix® connectors.
Network audio expansion shall be provided by the Dante protocol. The connector shall be 100 Base-T RJ45 utilizing CAT6 cable.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® 7 or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the devices via Dante.
The front panel shall include indicators for POWER, ETHERNET, and DANTE.
Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 115 dB, A-weighted with a maximum input level of +23 dBu and maximum output level of +24 dBu.
The device shall be powered over Ethernet (PoE) by an included 802.3af Class 0 PoE injector. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel, and may be surface mounted or mount into a standard 19” 1U EIA rack using available mounting kits. The device shall be a Symetrix xIO 4×4.
Analog Outputs
| Frequency Response | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel Separation | > 111 dB @ 1 kHz, +24 dBu. |
| Connectors | 3.5 mm Phoenix® connectors. |
| Number of outputs | Four (4) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic range | > 118 dB, A-weighted. |
| THD + Noise | < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
System
| Sampling Rate | 48 kHz, ± 100 ppm. |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters. |
Mechanical Specifications
| Space Required | Half rack unit (WDH: 20.83 cm x 22.86 cm x 4.37 cm / 8.2 in. x 9 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz). |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, FCC 15.109:2015, FCC 15.109(g):2015, FCC 15.107:2015, (CISPR 32), EN 55032:2012, EN 55103-2:2009, EN 61000-3-3:2013, EN 61000-3-2:2006, ICES-003:2012, RoHS. |
| Shipping Weight | 4.4 lbs. (2.0 kg) |
Architect and Engineer Specifications: xOut 4.
The half rack device shall provide four analog line outputs. Levels shall be controllable via DSP modules in software. Audio connections shall be accessed via rear panel 3.5 mm Phoenix® connectors.
Network audio expansion shall be provided by the Dante protocol. The connector shall be 100 Base-T RJ45 utilizing CAT6 cable.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® 7 or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the devices via Dante.
The front panel shall include indicators for POWER, ETHERNET, and DANTE.
Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 115 dB, A-weighted with a maximum output level of +24 dBu.
The device shall be powered over Ethernet (PoE) by an included 802.3af Class 0 PoE injector. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel, and may be surface mounted or mount into a standard 19” 1U EIA rack using available mounting kits. The device shall be a Symetrix xOut 4.
General Specifications
| Sampling rate | 48 kHz, ± 100 ppm. |
| Frequency response (A/D) | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel separation (A/D) | > 111 dB @ 1 kHz, +24 dBu. |
| Dante cable | Standard CAT6, maximum device to device length = 100 meters. |
| Connectors | 3.81 mm terminal blocks. |
| Number of inputs | Twelve (12) switchable balanced mic or line level. |
| Nominal input level | +4 dBu with 20 dB of headroom. |
| Maximum input level | +23 dBu. |
| Mic pre-amp gain | 0, 11.8, 24, 44 or 54 dB switchable. |
| Mic pre-amp EIN | < -127 dB with 150 Ohm source impedance. |
| Input impedance | 8k Ohms balanced, 4k Ohms unbalanced. |
| Phantom power (per input) | +48 VDC @ 10 mA maximum. |
| Dynamic range | > 116 dB, A-weighted. |
| THD + Noise | < -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.28 mS. |
Mechanical Data
| Space Required | 1U (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 100-240 VAC, 50/60 Hz, 25 Watts maximum universal input. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 12 lbs. (5.4 kg). |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
Architect and Engineer Specifications: xIn 12.
The device shall provide twelve analog mic/line inputs that are adjustable from line to mic level with coarse gain and phantom power. Levels and phantom power shall be controllable via online connection with software only. Audio connections shall be accessed via rear panel 3.81 mm terminal block connectors.
Network audio expansion shall be provided by the Dante protocol. Primary and Secondary Dante network audio connections shall be provided for redundant network implementation. Connectors shall be gigabit RJ45 utilizing CAT6 cable.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® XP or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the device via Dante.
The front panel shall include input signal level indicators as well as indicators for POWER and DANTE (PRIMARY and SECONDARY).
Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 116 dB, A-weighted with a maximum input level of +23 dBu.
The device shall have an IEC power input socket for 120-240 VAC. The device shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits. The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel and moulded plastic, and mount into a standard 19” 1U EIA rack. The device shall be a Symetrix xIn 12.
General Specifications
| Sampling rate | 48 kHz, ± 100 ppm. |
| Frequency response (D/A) | 20 Hz – 20 kHz, ± 0.5 dB. |
| Channel separation (D/A) | > 111 dB @ 1 kHz, +24 dBu. |
| Dante cable | Standard CAT6, maximum device to device length = 100 meters. |
| Connectors | 3.81 mm terminal blocks. |
| Number of outputs | Twelve (12) balanced line level. |
| Nominal output level | +4 dBu with 20 dB of headroom. |
| Maximum output level | +24 dBu (+22.8 dBu into a 2k Ohm minimum load). |
| Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced. |
| Dynamic Range | > 118 dB, A-weighted. |
| THD+Noise | < -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain. |
| Latency | 0.60 mS. |
Mechanical Data
| Space Required | 1U (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 100-240 VAC, 50/60 Hz, 25 Watts maximum universal input. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 12 lbs. (5.4 kg). |
| Certifications or Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS. |
Architect and Engineer Specifications: xOut 12.
The device shall provide twelve analog line outputs. Levels and phantom power shall be controllable via DSP modules in software. Audio connections shall be accessed via rear panel 3.81 mm terminal block connectors.
Network audio expansion shall be provided by the Dante protocol. Primary and Secondary Dante network audio connections shall be provided for redundant network implementation. Connectors shall be gigabit RJ45 utilizing CAT6 cable.
A designer software application shall be provided that operates on a Windows computer, with network interface installed, running Windows® XP or higher operating system. Computer connection for configuration shall be via a hosting DSP unit’s rear panel Ethernet connector that communicates with the device via Dante.
The front panel shall include output signal level indicators as well as indicators for POWER and DANTE (PRIMARY and SECONDARY).
Audio conversion shall be 24-bit, 48 kHz and the dynamic range shall not be lower than 118 dB, A-weighted with a maximum output level of +24 dBu.
The device shall have an IEC power input socket for 120-240 VAC. The devices shall meet UL/CSA and CE safety requirements and comply with CE and FCC Part 15 emissions limits.
The device shall be RoHS compliant. The chassis shall be constructed of cold rolled steel and moulded plastic, and mount into a standard 19” 1U EIA rack. The device shall be Symetrix xOut12.
