Adaptive Remote Control
ARC-Series remotes can be mixed and matched seamlessly with a complete family of flexible and modular ARCs to provide any acoustic space with optimal multi-user, multi-location control.
Secure Control at Your Fingertips
- Control of Symetrix DSP Systems
- Various control input types
- Available in white and black with Decora plates

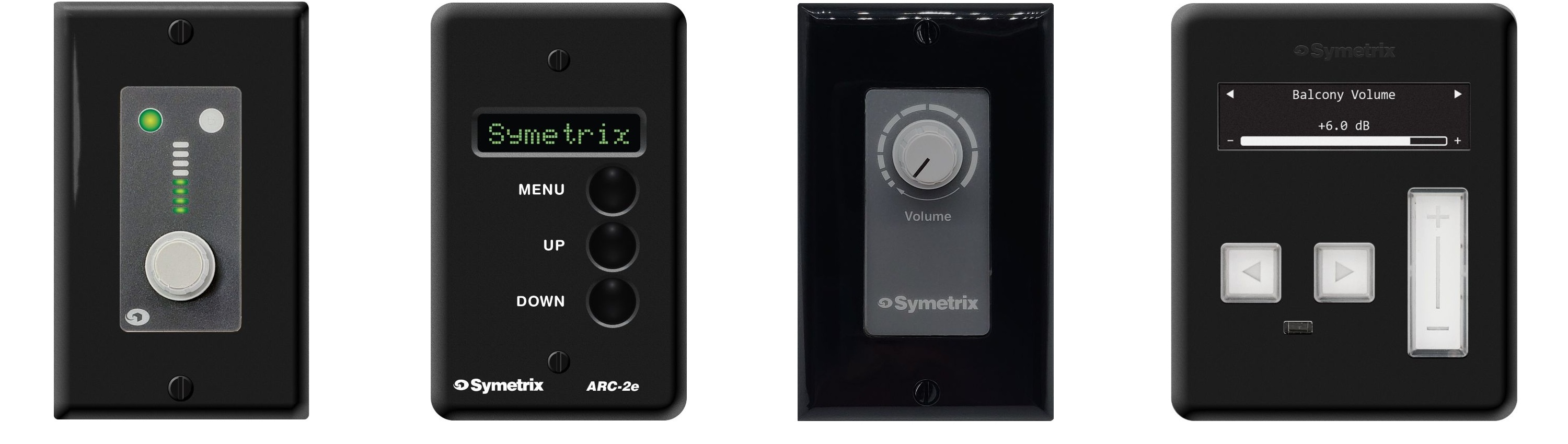

Choose from a Mix of Touch, Buttons, Switches, and Rotary Encoders
ARC-Series
DSP Control
Set up and configure the ARC-2e, ARC-K1e, ARC-SW4e, ARC-EX4e, and RC-3 remotes with the Jupiter or Zone Mix 761 DSP software applications.
System Operation

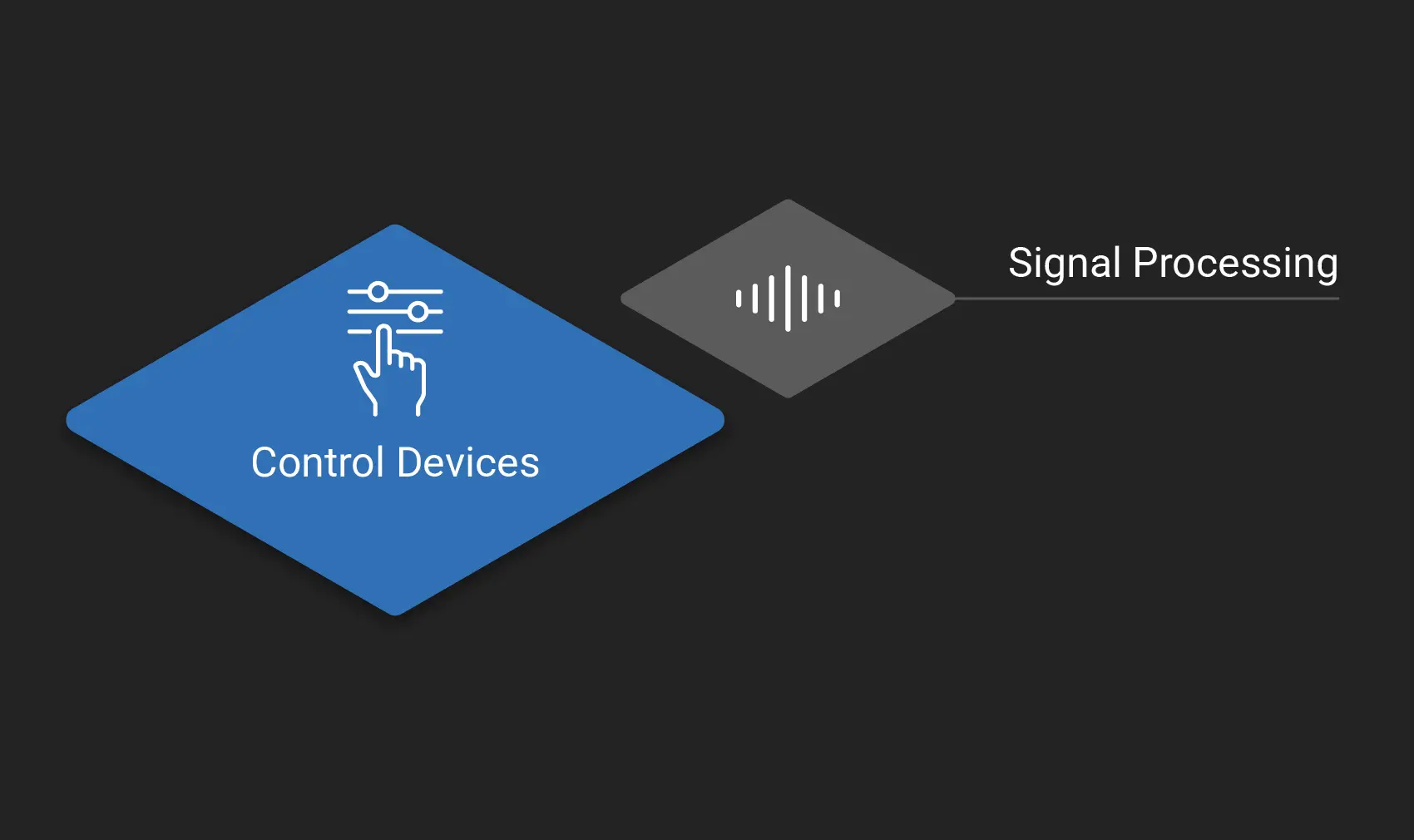

Integrate ARC-Series remotes into audio systems for flexible and extensible control.
Key Features
- User Control of Symetrix DSP Systems
- Easy to install with standard CAT 5/6 cables using RS-485
- Available in white and black
- Single-gang Decora faceplates
- Mounts in North American electrical box
- Capacitive touch or rotary encoder or buttons or potentiometer controls
- ARC-Pse Distributes power and data to multiple ARC remotes and connects directly to Symetrix DSPs. It supports flexible ‘star’ configuration, ‘daisy-chain’, or hybrid.
ARC-3
- 32 menus, 32 items.
- Control basic audio functions or complex logic events.
- Volume/mute, preset selection, room combining, and more.
- Capacitive touch with LED highlighting.
- Available in white and black.
- In-wall or surface mounting, US or EU.
Not compatible with Jupiter, or Zone Mix 761 DSP’s.
ARC-K1e
- Rotary encoder with pushbutton, typically controlling volume.
- 8-segment LED ladder indicates relative levels.
- Additional LEDs indicating selected active control.
- Idle mode for LED dimming in light-sensitive environments.
- Hardware lockout pins for the installer-provided key switch.
- Available in white and black.
- Single-gang US box mounting with Decora faceplate
ARC-SW4e
- Four switches programmable as latched, momentary, radio buttons.
- Control of mute, source selection, and presets
- Button linking to tri-color LEDs, or program LED’d independently.
- Idle mode for LED dimming in light-sensitive environments.
- Hardware lockout pins for the installer-provided key switch.
- Available in white and black.
- Single-gang US box mounting with Decora faceplate.
ARC-EX4e
- Low-cost expansion for ARC-K1e and ARC-SW4e.
- Identical in function to ARC-SW4e.
- Combine up to 4 ARC-EX4e and up to 3 ARC-SW4e.
- Accommodates Decora faceplates (not provided).
- Single-gang US box mounting.
RC-3
- Basic potentiometer-based analog remote control for single point-of-control applications
- Interfaces with external control inputs to provide volume, source, or preset selection.
ARC-PSe
- Distributes long distance power and data to multiple ARC remotes via eight RJ-45 connectors.
- Connects directly to Symetrix Jupiter and ZoneMix 761 with standard CAT5/6 cables.
- Supports flexible ‘star’ configuration, ‘daisy-chain’, or a hybrid of the two.
- Versatile half-rack design. Mounts in an optional 1U rack tray or surface mount with an optional bracket.
| Models | P/N |
|---|---|
| ARC-3 Black | 80-0135 |
| ARC-3 White | 80-0103 |
| ARC-2e Black | 80-0155 |
| ARC-2e White | 80-0056 |
| ARC-K1e Black | 80-0137 |
| ARC-K1e White | 80-0078 |
| ARC-SW4e Black | 80-0138 |
| ARC-SW4e White | 80-0079 |
| ARC-EX4e | 80-0080 |
| RC-3 Black | 80-0146 |
| RC-3 White | 80-0145 |
| ARC-PSe | 80-0093 |
ARC-PSe
| Specification | Detail | |
| System Specifications | ARC Cable | Standard CAT5/6, maximum total cable length = 4000 ft. / 1219 m for RS-485 data. (Total ARC Cable Length (RS-485 from DSP to furthest ARC) |
| Number of ARCs Supported | The power draw is dependent upon ARC types used, number of each type, and total cable length. At least 8 ARC-2e with 800 feet / 243 meters of cable supported. | |
| Mechanical Specifications | Space Required | Half rack unit; WDH: 8.2 in. (20.83 cm) x 9 in. (22.86 cm) x 1.72 in. (4.37 cm); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 24 VDC @ 1 Amps (24 Watts) maximum; No line voltage switching required | |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm / 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. | |
| Shipping Weight | 4.4 lbs. (2.0 kg) | |
| Certifications and Compliance | EN 55103-1; EN 55103-2; FCC Part 15; RoHS |
Quick Start Guide
Declaration of Conformity
