Just the right amount of processing for various environments
Prism meets the needs of many typical applications being available in 4 models with a variety of common channel configurations. A Dante option enables IP media connectivity. There is a Prism model to match different requirements without spending on unneeded capabilities.
Capabilities
- 4×4, 8×8, 12×12, and 16×16 IO Models.
- 64×64 Dante Option
Networked Audio DSP for a Connected AVC Ecosystem
Scale Smart, Control Seamlessly
Sizing Choices
Choose among four models with common channel configurations from 4×4 to16×16, providing the right amount of processing for various environments without spending on extra features.
I/O Expansion
Easily increase analog input and output counts by adding Symetrix I/O expanders to match specific requirements without the need for an additional DSP unit.
Network Audio
Include an optional 64×64 channel Dante module to enable multi-channel audio networking over IP to manage a variety of networked systems and devices, including third-party components.
Comprehensive Control
Meet diverse application requirements with extensive control options, including computers, tablets, touchscreens, and remotes.
Key Features

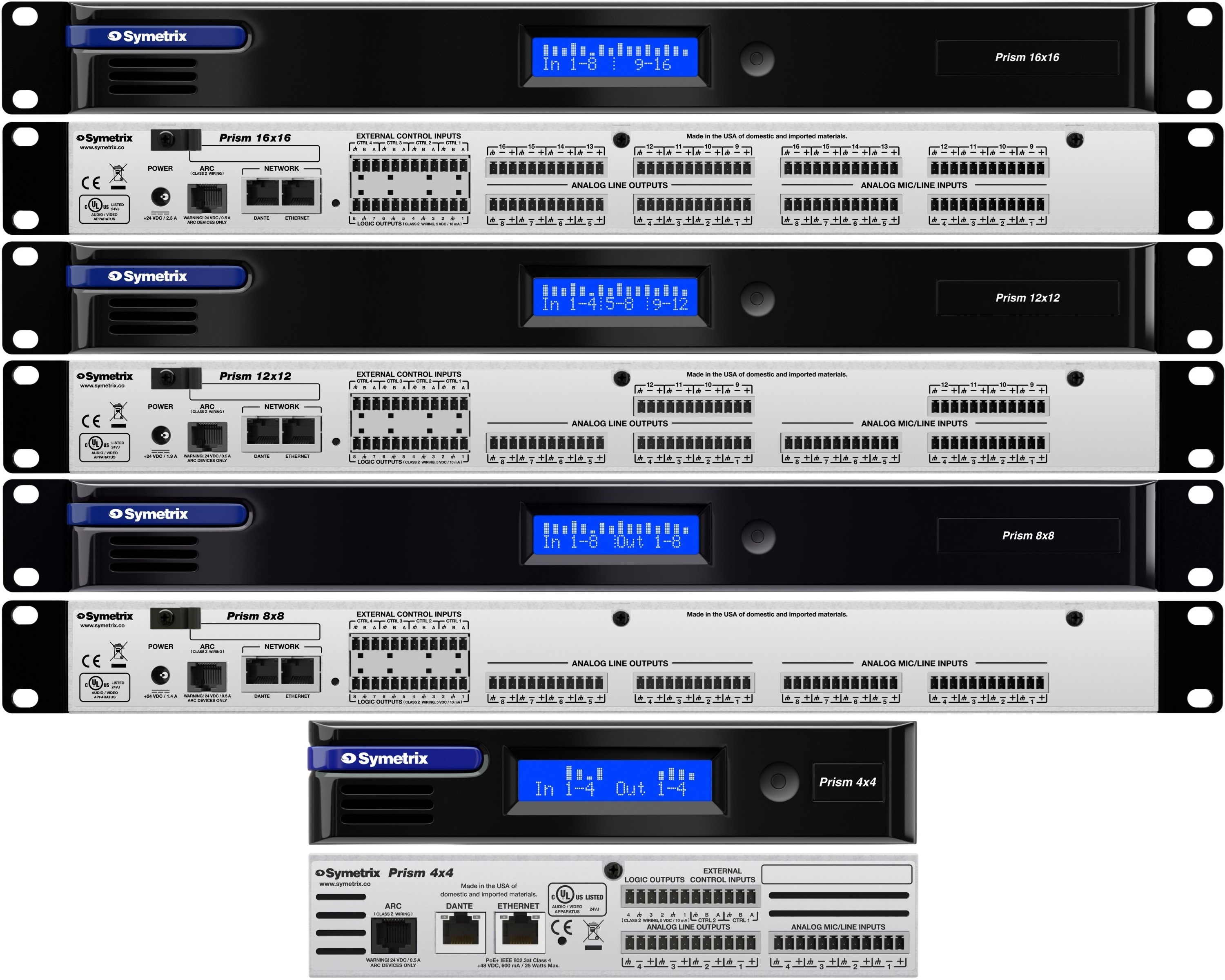

- Prism comes in 4×4, 8×8, 12×12, and 16×16 models.
- Optional 64×64 Dante module
- System expansion with xIO expansion modules.
- Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control
- Extensive control connectivity with Symetrix components and TCP/UDP
- Third-party control via Intelligent Modules with Lua scripting
Download the Software to Configure Prism
Performance and Processing
- High Performance Symetrix preamps
- Optional 64×64 channel Dante integration
I/O Capabilities
- ARC Remote Port
- Dedicated Dante and Ethernet ports
Control and Monitoring
- Embedded web server provides remote metering, diagnostics
and configurable ARC-WEB browser control - Extensive control options via Symetrix SymVue for Windows, T Series Touchscreens, Control Server, ARC remotes, W Series remotes, ARC-WEB, TCP/UDP
System Display
- Front panel system LCD displays
| Feature | Prism 4x4 | Prism 8x8 | Prism 12x12 | Prism 16x16 |
|---|---|---|---|---|
| 16 mic/line inputs |
|
|
| x |
| 16 line outputs |
|
| x | x |
| 12 mic/line inputs |
|
| x |
|
| 12 line outputs |
| x |
|
|
| 8 mic/line inputs |
| x |
|
|
| 8 line outputs | x |
|
|
|
| 4 mic/line inputs | x |
|
|
|
| 4 line outputs | x |
|
|
|
| 4x4 GPIO | x |
|
|
|
| 8x8 GPIO |
| x | x | x |
| External Power |
| x | x | x |
| POE+ | x |
|
|
|
| Models | P/N |
|---|---|
| Prism 4x4 with Dante | 80-0114 |
| Prism 4x4 | 80-0200 |
| Prism 8x8 with Dante | 80-0115 |
| Prism 8x8 | 80-0201 |
| Prism 12x12 with Dante | 80-0116 |
| Prism 12x12 | 80-0205 |
| Prism 16x16 with Dante | 80-0117 |
| Prism 16x16 | 80-0203 |
| Specification | Detail | Prism-4x4 | Prism-8x8 | Prism-12x12 | Prism-16x16 | |
| System Specifications | Analog Control Inputs | 0-3.3 VDC | Y | Y | Y | Y |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available. | Y | Y | Y | Y | |
| Channel Separation (A/D/A) | > 110 dB @ 1 kHz, +24 dBu | Y | Y | Y | Y | |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters | Y | Y | Y | Y | |
| Delay Memory | 174 mono seconds | Y | Y | Y | Y | |
| Dynamic Range (A/D/A) | > 113 dB, A-weighted | Y | Y | Y | Y | |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 meters | Y | Y | Y | Y | |
| Frequency Response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB | Y | Y | Y | Y | |
| Latency (A/D/A) | 1.04 mS, inputs routed to outputs | Y | Y | Y | Y | |
| Logic Output Maximum External Power Supply / Current Sinking | 50 mA | Y | Y | Y | Y | |
| Logic Output Maximum External Power Supply Voltage | 24 VDC | Y | Y | Y | Y | |
| Logic Output Maximum Output Current | 10 mA | Y | Y | Y | Y | |
| Logic Outputs | Low (0V) when active, pulled high (5V) when inactive | Y | Y | Y | Y | |
| Maximum Devices per System | 128 units per Site File | Y | Y | Y | Y | |
| Maximum Stored Presets | 1,000 | Y | Y | Y | Y | |
| Processor | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD | Y | Y | Y | Y | |
| Raw Processing Capacity | 400 MIPS, 1.6 GFLOPS | Y | Y | Y | Y | |
| Recommended External Control Potentiometer | 10k Ohm, linear | Y | Y | Y | Y | |
| RS-485 Serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port | Y | Y | Y | Y | |
| Sampling Rate | 48 kHz | Y | Y | Y | Y | |
| THD + Noise | < 95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain | Y | Y | Y | Y | |
| Inputs and Outputs | Analog A to D latency | 0.28 mS | Y | Y | Y | Y |
| Analog Input Connectors | 3.81 mm terminal blocks | Y | Y | Y | Y | |
| Analog Input Dynamic Range | > 113 dB, A-weighted | Y | Y | Y | Y | |
| Analog Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced | Y | Y | Y | Y | |
| Analog Input Maximum Level | +23 dBu | Y | Y | Y | Y | |
| Analog Input THD + Noise | < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4 dBu. | Y | Y | Y | Y | |
| Analog Mic Pre-amp EIN | < -125dB with 150 ohm source impedance. 22.4 kHz BW | Y | Y | Y | Y | |
| Analog Mic Pre-amp Gain | 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim | Y | Y | Y | Y | |
| Analog Output Connectors | 3.81 mm terminal blocks | Y | Y | Y | Y | |
| Analog Output D to A latency | 0.60 mS | Y | Y | Y | Y | |
| Analog Output Dynamic Range | > 117 dB, A-weighted | Y | Y | Y | Y | |
| Analog Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced | Y | Y | Y | Y | |
| Analog Output Level Maximum | +24 dBu (+22.8 dBu into a 2k Ohm minimum load) | Y | Y | Y | Y | |
| Analog Output THD + Noise | < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output | Y | Y | Y | Y | |
| Analog Phantom Power (per input) | +48 VDC, 10 mA maximum | Y | Y | Y | Y | |
| CMRR | > 79 dB @ 1 kHz, unity gain | Y | Y | Y | Y | |
| Nominal Analog Input Level | +4 dBu | Y | Y | Y | Y | |
| Nominal Analog Output Level | +4 dBu with 20 dB of headroom | Y | Y | Y | Y | |
| Number of Analog Inputs | Eight (8) switchable balanced mic or line level | Y | ||||
| Number of Analog Inputs | Four (4) switchable balanced mic or line level | Y | ||||
| Number of Analog Inputs | Sixteen (16) switchable balanced mic or line level | Y | ||||
| Number of Analog Inputs | Twelve (12) switchable balanced mic or line level | Y | ||||
| Number of Analog Outputs | Eight (8) balanced line level | Y | ||||
| Number of Analog Outputs | Four (4) balanced line level | Y | ||||
| Number of Analog Outputs | Sixteen (16) balanced line level | Y | ||||
| Number of Analog Outputs | Twelve (12) balanced line level | Y | ||||
| Mechanical Specifications | Certifications and Compliance | IEC 62368-1, EN 55032, EN 55103-2, FCC Part 15, ICES-003, UKCA, EAC, RoHS (Health/Environmental) | Y | Y | Y | Y |
| Electrical | 24V 1.4A, 34W maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5 | Y | ||||
| Electrical | 24V 1.9A, 45W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5 | Y | ||||
| Electrical | 24V 2.3A, 56W Maximum. Symetrix Part Number 12-0034. CUI part number SDI65-24-U-P5 | Y | ||||
| Electrical | PoE+ IEEE 802.3at Class 4, 25.5 Watts maximum. No line voltage switching required. Note: Subject to change when actual power requirements are determined. | Y | ||||
| Shipping Weight | 5.1 lbs. (2.3 kg) | Y | ||||
| Shipping Weight | 9.4 lbs (4.2 kg) | Y | Y | Y | ||
| Space Required | 1U (WDH: 18.91 in. x 9.88 in. x 1.72 in. / 48.02 cm x 25.1 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. | Y | Y | Y | ||
| Space Required | Half rack unit (WDH: 20.83 cm x 23.83 cm x 4.37 cm / 8.2 in. x 9.38 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. | Y | ||||
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. | Y | Y | Y | Y |
