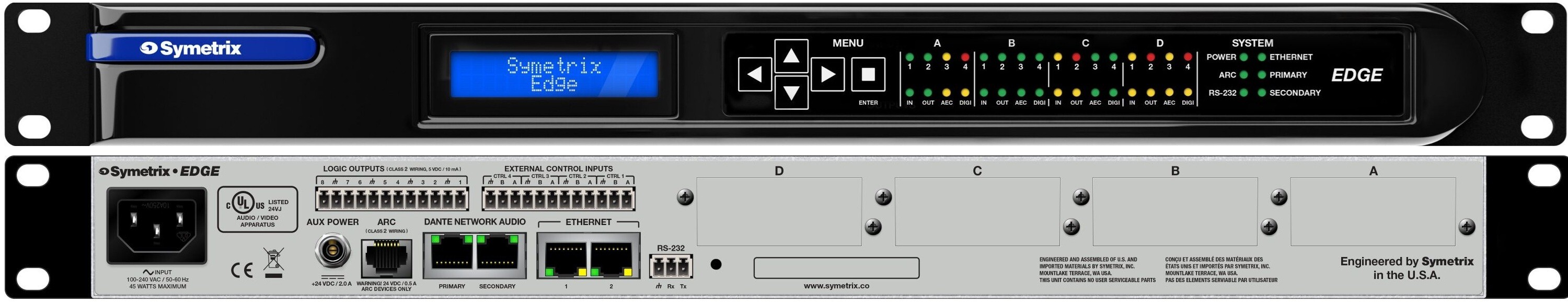

Maximum Flexibility for Custom Audio Solutions
Edge offers maximum flexibility with four card slots and options for 6 different types of user-installed cards. Edge is the best solution when a very specific combination of capabilities is needed and nothing else quite fits.
Capabilities
- 4 I/O expansion slots
- 64×64 Dante Option
Networked Audio DSP for a Connected AVC Ecosystem
Build It Your Way—Scalable, Networked, and Ready to Perform
Versatile Configurations
Align with exact system requirements with the four versatile option card slots that enable unique I/O configurations.
Network Audio
An optional 64×64 channel Dante module enables multi-channel audio networking over IP to manage a system of networked systems and devices, including third-party components.
Integrated Switch
Eliminate or reduce the need for external switches while avoiding 100 Mbit bottlenecks with a built-in 4-port switch for Dante, and control networking.
Comprehensive Control
Meet diverse application requirements with extensive control options, including computers, tablets, touchscreens, and remotes.
Key Features
- Edge frame incorporates 4 I/O expansion slots
- Optional cards support Analog In, Analog Out, AEC, USB, VoIP or Analog Telco
- Optional 64×64 Dante module
- Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control
- Extensive control options with Symetrix components and TCP/UDP
- Third-party control via Intelligent Modules with Lua scripting
Download the Software to Configure Edge
Performance and Processing
- Ultra-low noise Symetrix preamps with 3 dB gain steps
- Optional 64×64 redundant Dante integration
I/O Capabilities
- 4x I/O Expansion Card slots
- 6 optional expansion I/O card types
- 8×8 GPIO
- RS-232 Control Terminal Blocks
- ARC Remote Port
- Dual Dante and dual Ethernet ports
Control and Monitoring
- Embedded web server provides remote metering, diagnostics, and configurable ARC-WEB browser control
- Extensive control options via Symetrix SymVue for Windows, T Series Touchscreens, Control Server, ARC remotes, W Series remotes, ARC-WEB, TCP/UDP
System Display and Power
- Front panel system LCD displays
- Support for redundant internal and external power supplies
| Models | P/N |
|---|---|
| Edge with Dante | 80-0048 |
| Edge | 80-0204 |
| 4 channel analog in card | 80-0062 |
| 4 channel analog out card | 80-0063 |
| 4 channel AEC card | 80-0064 |
| 2 line analog telephone card | 80-0066 |
| 2 line VoIP interface card | 80-0065 |
| USB audio card: play/ record/ speakerphone | 80-0132 |
| System Specification | |
| Processor | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD |
| Raw Processing Capacity | 400 MIPS, 1.6 GFLOPS |
| Sampling Rate | 48 kHz, ± 100 ppm |
| Frequency Response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB |
| Dynamic Range (A/D/A) | 114 dB, A-weighted |
| Channel Separation (A/D/A) | 108 dB @ 1 kHz, +24 dBu |
| Latency (A/D/A) | 0.88 mS, inputs routed to outputs |
| Delay Memory | 174 mono seconds per Edge frame |
| Analog Control Inputs | 0-3.3 VDC |
| Recommended External Control Potentiometer | 10k Ohm, linear |
| Logic Outputs | Low (0 V) when active, pulled high (5 V) when inactive |
| Logic Output Maximum External Power Supply Voltage | 24 VDC |
| Logic Output Maximum External Power Supply / Current Sinking | 50 mA |
| Logic Output Maximum Output Current | 10 mA |
| RS-232 Accessory Serial I/O | 38.4 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight through, only pins 2, 3, and 5 required |
| RS-485 Serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port |
| Ethernet Cable | Standard CAT5/6, maximum device to device length = 100 m |
| Dante Cable | Standard CAT5/6, maximum device to device length = 100 m |
| ARC Cable | Standard CAT5/6, distance dependent upon load and number of devices |
| Maximum Devices per System | 32 units per Site File |
| Maximum Stored Presets | 1,000 |
| Mechanical Specifications | |
| Space Required | 1U (WDH: 18.91 in x 9.5 in x 1.72 in / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3-inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Electrical | 100-240 VAC, 50/60 Hz, 45 Watts maximum universal input and/or suitable 24 VDC / 2.0 Amp auxiliary power source. No line voltage switching required. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
| Shipping Weight | 13 lbs (5.9 kg) |
| Certifications and Compliance | UL 62368-1, cUL 62368-1, IEC 62368-1, EN 55103-1, EN 55032, EN 55103-2, FCC Part 15; UKCA; EAC; RoHS |
