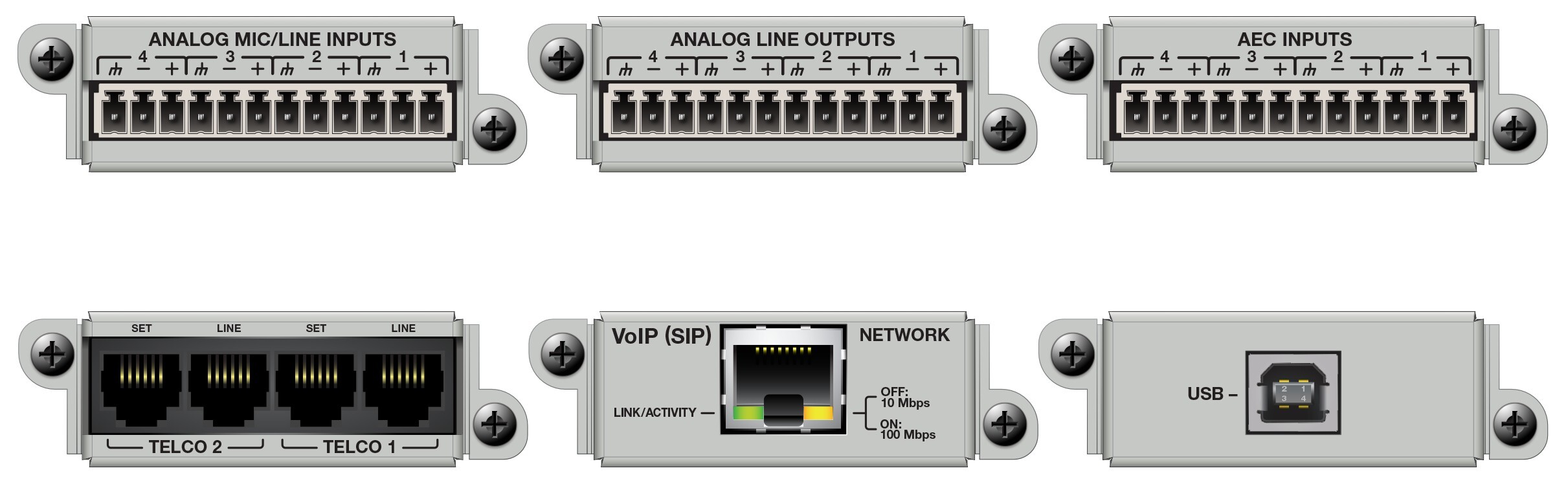

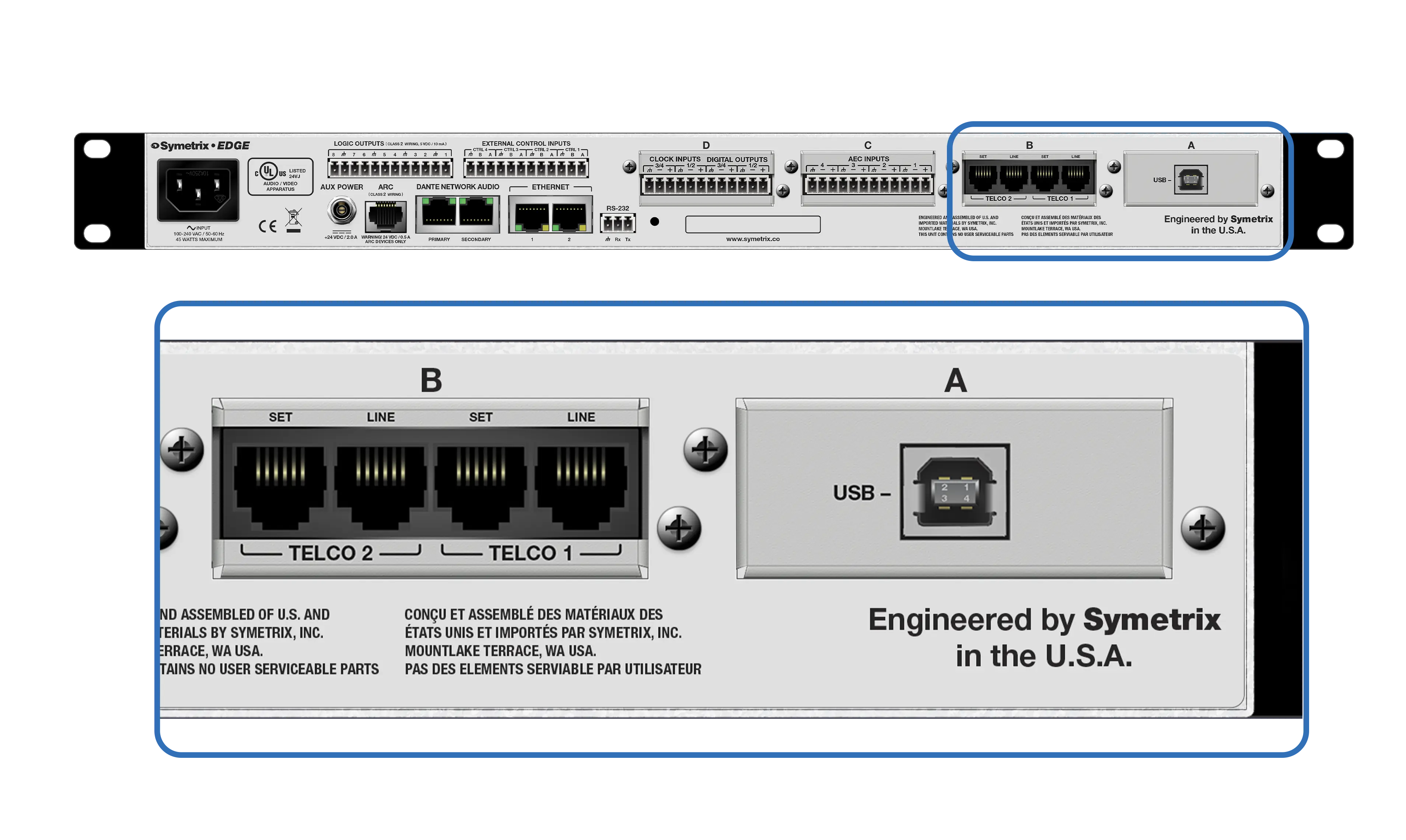

Tailor Your System with the Right Expansion Card
- 4 Channel Analog Input Card
- 4 Channel Analog Output Card
- 4 Channel AEC Input Card
- 2 Line VoIP Interface Card
- USB Audio Card
- 2 Line Analog Telephone Interface Card
4 Channel Analog Input Card
- Mic and/or line level inputs.
- 4 channels per card.
- +48v phantom power @10mA.
- Signal matching. 5 analog gain settings with +/-24dB of digital trim.
- Extended dynamic range A/D converters. >115 dB.
- 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
- Field swappable by qualified technicians.
4 Channel Analog Output Card
- Analog line outputs.
- 4 channels per card.
- High output levels for long cable runs. Up to +24 dBu.
- Digital trim. +12dB down to full off.
- Extended dynamic range D/A converters. >117 dB.
- 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
- Field swappable by qualified technicians.
4 Channel AEC Input Card
- Wideband dedicated processing.
- Zero-latency direct outputs and discrete reference inputs per AEC channel.
- AEC processing available to the card’s direct inputs or internally routed sources.
- 11 mS AEC latency, up to 300 mS tail length, and greater than 100 dB/S convergence time.
- Field swappable by certified technicians.
2 Line VoIP Interface Card
- Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
- Intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
- Delivers high-definition voice quality and a superior unified communications experience.
- An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.
USB Audio Card
- Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
- Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2×2 and 8×8 line I/O mode for multitrack recording and playback.
- Speakerphone and 2×2 line modes are class 1 USB (driverless) for quick and problem free plug-and-play connectivity and provide the ability to utilize a soft codec’s AEC or disable it in favor of Symetrix’ award-winning AEC.
- 8×8 line I/O mode utilizes Class 2 USB. Windows ASIO drivers are included.
- A high-retention Type B USB connection provides a robust and standard direct connection between the DSP and computer.
2 Line Analog Telephone Interface Card
- Adds 2-line PSTN (POTS) functionality to Radius NX and Edge DSPs
- Multiple applications – teleconferencing, paging, remote monitoring, and broadcast
- Functionality includes auto-answer, dial, redial, speed-dial, do not disburb, DTMF decode, caller ID, progress monitoring, line status and faults monitoring, and more
- A variety of control options including PSTN telephones, SymVue and third-party control devices support intuitive end-user operation
- Standard RJ11 ports with parallel connections per line for a physical handset, dialer, or ADA compliant visual or audible device
- Qualified for use in North America only
- Field swappable by qualified technicians
| Models | P/N |
|---|---|
| 4 Channel Analog Input Card | 80-0062 |
| 4 Channel Analog Output Card | 80-0063 |
| 4 Channel AEC Input Card | 80-0064 |
| 2 Line VoIP Interface Card | 80-0065 |
| 2 Line Analog Telephone Interface Card | 80-0066 |
| USB Audio Card | 80-0132 |
4 Channel Analog Input Card
| Specification | Detail | |
| Mechanical Specifications | Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| Shipping Weight | 1 lbs. (0.45 kg) | |
| Inputs | Analog Input Connectors | 3.81 mm terminal blocks |
| Analog Input Dynamic Range | > 115 dB, A-weighted | |
| Analog Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced | |
| Analog Input Latency | 0.28 mS | |
| Analog Input Maximum Level | +23 dBu | |
| Analog Input THD + Noise | < -94 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain | |
| Analog Mic Pre-amp EIN | < -127dB with 150 Ohm source impedance | |
| Analog Mic Pre-amp Gain | 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim | |
| Analog Phantom Power (per input) | +48 VDC @ 10 mA maximum | |
| CMRR | > 76 dB @ 1 kHz, unity gain | |
| Nominal Analog Input Level | +4 dBu with 20 dB of headroom | |
| Number of Analog Inputs | Four (4) switchable balanced mic or line level |
4 Channel Analog Output Card
| Specification | Detail | |
| Mechanical Specifications | Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| Shipping Weight | 1 lbs. (0.45 kg) | |
| Outputs | Analog Output Connectors | 3.81 mm terminal blocks |
| Analog Output Dynamic Range | > 117 dB, A-weighted | |
| Analog Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced | |
| Analog Output Latency | 0.60 mS | |
| Analog Output Level Maximum | +24 dBu (+22.8 dBu into a 2k Ohm minimum load) | |
| Analog Output THD + Noise | < -95 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain | |
| Number of Analog Outputs | Four (4) balanced line level |
4 Channel AEC Card
| Specification | Detail | |
| Mechanical Specifications | Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| Shipping Weight | 1 lbs. (0.45 kg) | |
| Acoustic Echo Cancellation | AEC A/D Dynamic Range | < 115 dB, A-weighted |
| AEC A/D Latency | 0.28 mS (direct), 11 mS (AEC enabled) | |
| AEC A/D THD + Noise | <-94 dB, unweighted | |
| AEC CMRR | > 76 dB @ 1 kHz, unity gain | |
| AEC Connectors | 3.81 mm terminal blocks | |
| AEC Convergence Time | > 100 dB/S | |
| AEC Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced | |
| AEC Maximum Input Level | +23 dBu | |
| AEC Mic Pre-amp EIN | <-127 dB with 150 Ohm source impedance | |
| AEC Mic Pre-amp Gain | 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim | |
| AEC Nominal Input Level | +4 dBu with 20 dB of headroom | |
| AEC Number of Inputs | Four (4) acoustic echo cancellation | |
| AEC Phantom Power | +20 VDC @ 10 mA maximum | |
| AEC Tail Length | > 250 mS |
2 Line CoIP Interface Card
| Specification | Detail | |
| System Specifications | Ethernet Cable | Standard CAT5, maximum device to device length = 100 meters |
| Ethernet Interface | 10/100 Base-T | |
| Mechanical Specifications | Certifications and Compliance | UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS, WEEE |
| Shipping Weight | 1 lbs. (0.45 kg) | |
| What Ships in the Box | Symetrix I/O card, card bracket, 2 black 4-40 Phillips head screws, 3 stainless steel 4-40 Phillis head screws, a quick start guide. Field swappable by certified technicians. | |
| Inputs and Outputs | Connector | RJ45 |
2 Line Analog Telephone Interface Card
| Specification | Detail | |
| System Specifications | Frequency Response | 250 Hz to 3.3 kHz ±1.0 dB |
| LEC Tail Time | 32 mS | |
| Null | 55 dB nominal | |
| Rx Level | -10.0 dBm RMS average; +3.2 dBm maximum | |
| Signal to Noise Ratio | > 62 dB | |
| Telco “Line” Connector | RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX. Note: Relay bridged to Line port with option in software to isolate based on hook status | |
| Telco “Set” Connector | RJ11. Format: POTS (plain old telephone service) or analog extension from a PBX. Note: Relay bridged to Line port with option in software to isolate based on hook status | |
| THD + Noise | < 0.3% | |
| Tx Level | 10.0 dBm RMS average; +3.2 dBm maximum | |
| Mechanical Specifications | Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC 47 CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E); G.165, G.168 compliant |
| Shipping Weight | 1 lbs. (0.45 kg) |
USB Audio Card
| Specification | Detail | |
| Mechanical Specifications | Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| Form Factor | Standard Symetrix DSP I/O card form factor | |
| Shipping Weight | 1 lbs. (0.45 kg) | |
| What Ships in the Box | Symetrix I/O card, card bracket, 2 black 4-40 Phillips head screws, 3 stainless steel 4-40 Phillis head screws, a quick start guide. Field swappable by certified technicians. Field swappable by certified technicians | |
| USB Audio Input and Output | USB Audio Connector | One (1) high-retention Type B female |
| USB Bit Depth | 16-bit in legacy modes (speakerphones, 2×2), 16 or 24-bit in 8×8 mode | |
| USB Class | Audio Device Class 1.0 and 2.0 | |
| USB Environmental | Environmental specifications same as hosting unit | |
| USB Interface | 2 | |
| USB Mode | Speakerphone (disable Computer AEC) 1×1, Speakerphone (allow Computer AEC) 1×1, Line 2×2, or Line 8×8 | |
| USB Sample Rate | Internally 48 kHz. Externally, 48 KHz in legacy modes (speakerphones, 2×2), 16 KHz to 96 KHz in 8×8 mode | |
| USB User Control – Inputs | Gain, Invert, Mute, Meter, Channel Name | |
| USB User Control – Outputs | Gain, Mute, Meter, Channel Name | |
| USB User Control – Status | Connected, Streaming (Active) |
