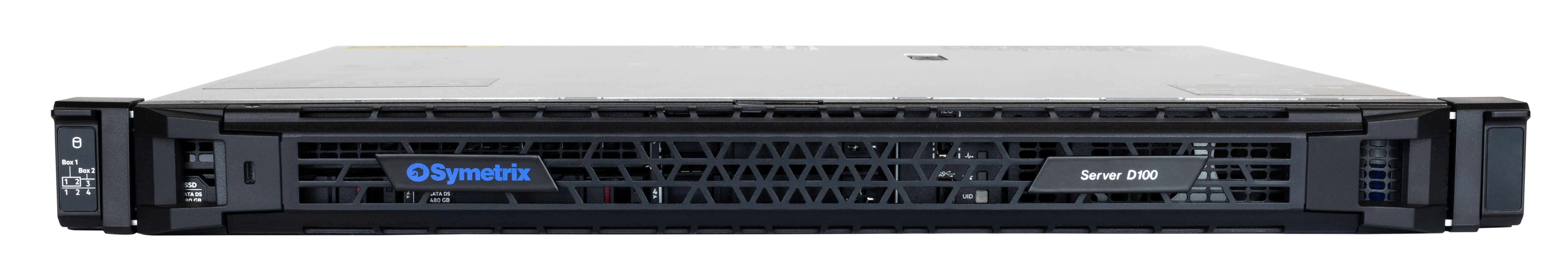

Built for big and complex systems
D100 is an enterprise-class platform designed specifically for professional AVoIP installations with high IP audio channel counts and for systems that require complex channel management. The platform leverages an HP Enterprise server and is purpose-built for large scale systems such as campuses, transportation hubs, museums, performing arts, and more.
Power-demanding systems with scalable, high-capacity DSP
- Up to 384 x 384 AVoIP channels
- Up to 96 AEC channels
- Up to 128 media playback channels
- Channel count expansion through software licenses

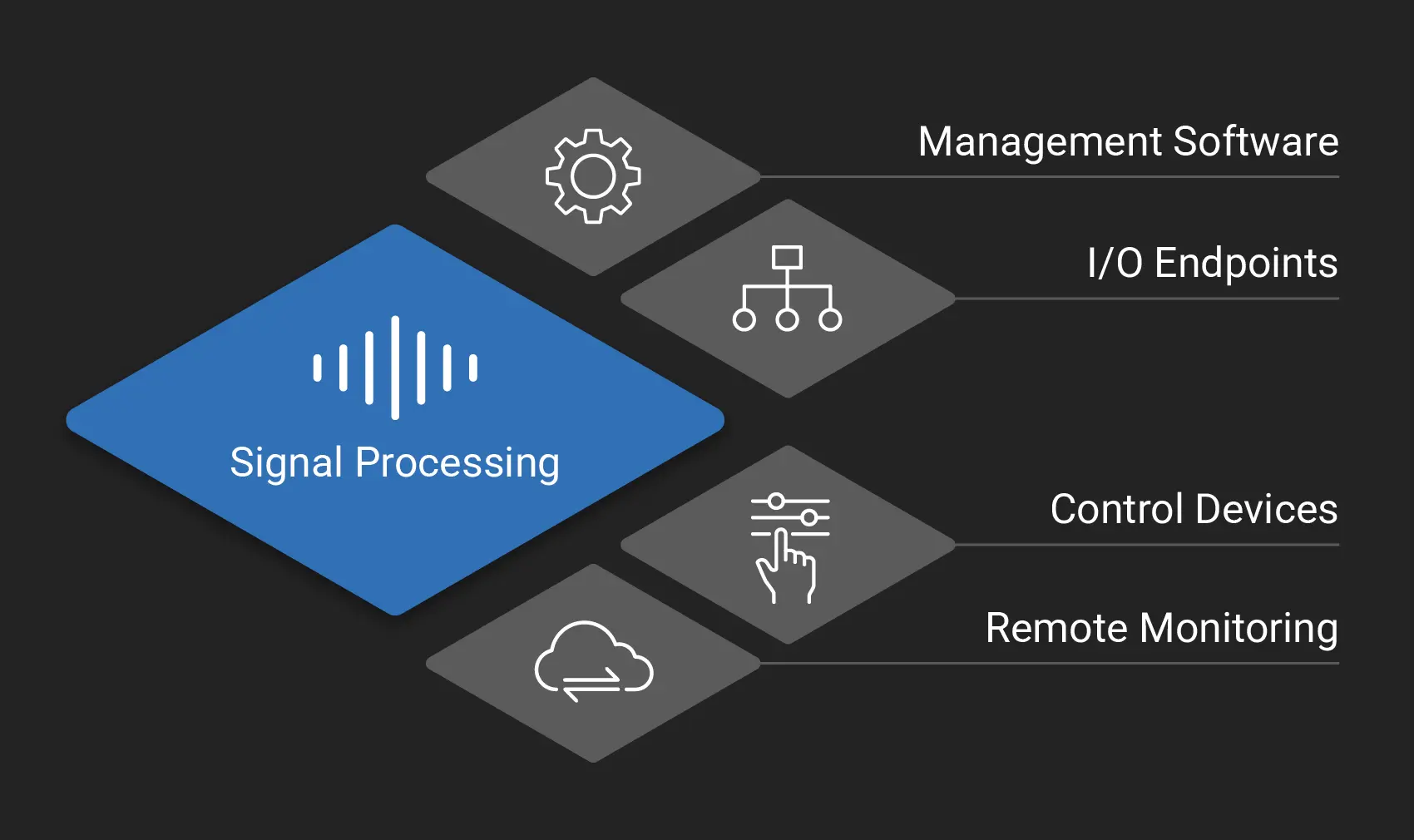

Centralized Signal Processing for Seamless System Integration
D100 makes installation and programming easy for large-scale AVC systems
Network Audio
Achieve unparalleled flexibility and scalability for audio control and network integration from an expansive amount of Dante channels for use even in the most demanding and complex environments.
AEC Processing
Integrate into larger conference rooms or deploy across multiple conference rooms with a large channel count of Acoustic Echo Cancellation.
Record and Playback
Record and playback prerecorded messages on multiple channels for announcements and alerts crucial to public facilities.
Software Expandability
Upgrade firmware in the field to increase various channel counts to make the server scalable and more cost effective.
Ready to Deploy the D100 DSP Server in Your Next Project?
Start with Our Training Course
https://symetrix.talentlms.com/plus/my/training/213

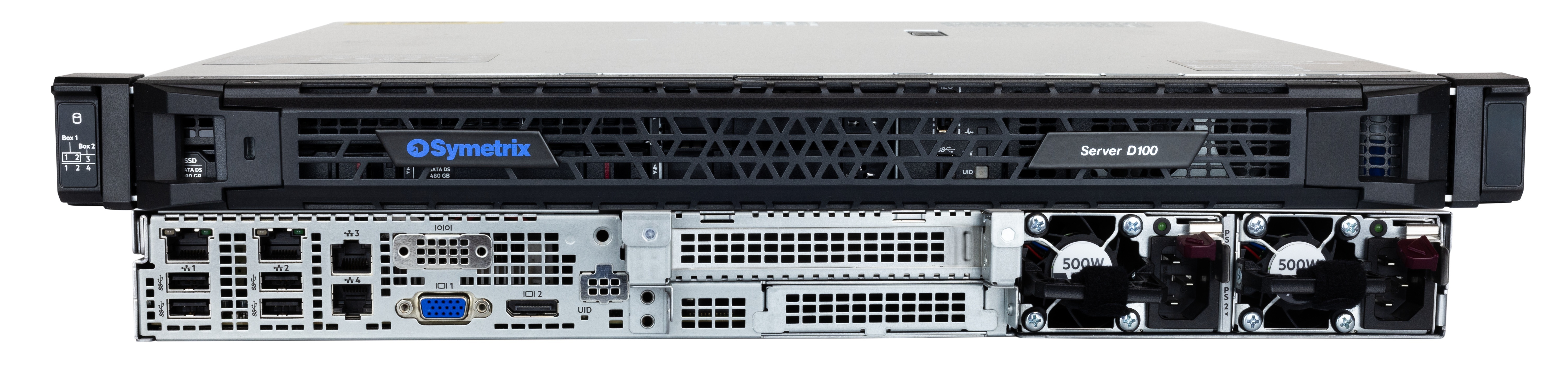

Key Features
- 256 × 256 Dante I/O channels, option to add 128 × 128 Dante I/O channels for a total of 384 x 384
- 64 channels of acoustic echo cancellation (AEC), option to add 32 AEC channels for a total of 96
- 32 media playback channels, option to add 32 or 96 media playback channels for a total of 128
- 8 media record channels
- Extensive control options via Symetrix SymVue Windows interfaces, T-Series touchscreens, Control Server, W-Series remotes, ARC-WEB interfaces, and TCP/UDP standard
- Lua scripting support standard
- Third-party control via Intelligent Modules
- Dual, redundant, hot swappable power supplies
- 500 GB media storage
Download the Software to Configure D100
Performance and Processing
- High channel count DSP
- Software-based system running on a standard processor
- Software upgrades to increase channel counts
I/O Capabilities
- 256 × 256 Dante IO
- 64 channels of AEC
- 32 media playback channels
- 8 media record channels
Control and Monitoring
- An embedded web server provides remote metering, diagnostics, and configurable ARC-WEB browser-based control
- Extensive control options via Symetrix SymVue for Windows, T-Series touchscreens, Control Server, W-Series remotes, ARC-WEB, and TCP/UDP
- Third-party control via Intelligent Modules
- Lua scripting support included

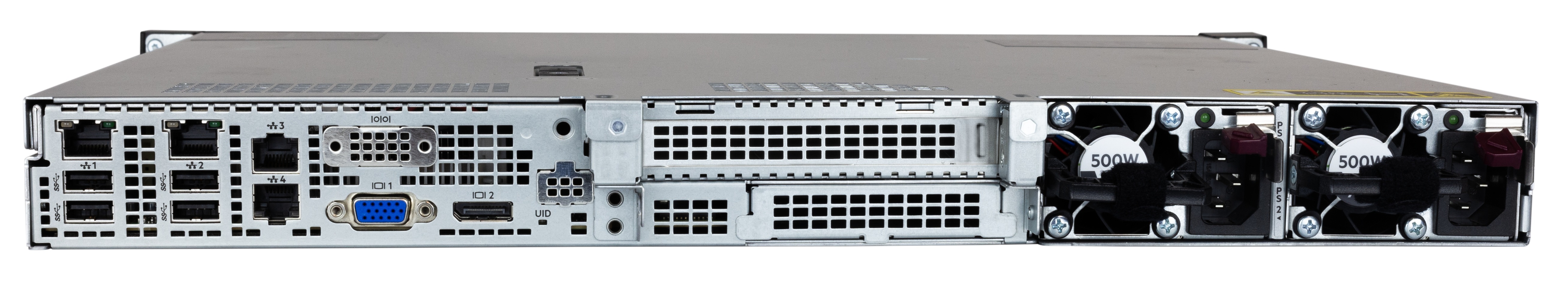

| Models | P/N |
|---|---|
| D100 | 80-0231 |
| Dante 128 x 128 Channel Software Upgrade | 25-0001 |
| AEC 32 Channel Upgrade | 25-0002 |
| Media Playback 32 Channel Upgrade | 25-0003 |
| Media Playback 96 Channel Upgrade | 25-0004 |
| Specification | Detail | |
| System Specifications | Platform | HPE ProLiant DL20 Gen11 |
| Sampling Rate | 48 kHz | |
| Ethernet Dante Inputs | 2x RJ45 1 Gbit/Sec | |
| Ethernet Control Inputs | 1x RJ45 1 Gbit/Sec | |
| Ethernet HPE ILO (Integrated Lights Out) | 1x RJ45 1 Gbit/Sec | |
| System Drive | 500 GB SSD | |
| Media Drive | 500 GB SSD | |
| Base Configuration | Dante Channels | 256 x 256 |
| AEC Channels | 64 @ 256 ms tail length | |
| Playback Channels | 32 | |
| Record Channels | 8 | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| IT Device Management | HPE ILO | |
| Software Upgrade Options | Dante 128x128 Channel Upgrade | Upgrade the built in Dante channels from 256x256 to 384x384 |
| AEC 32 Channel Upgrade | Upgrade the built in AEC channels from 64 to 96 via AV-Ops Center | |
| Playback 32 Channel Upgrade | Upgrade the built in playback channels from 32 to 64 via AV-Ops Center | |
| Playback 96 Channel Upgrade | Upgrade the built in playback channels from 32 to 128via AV-Ops Center | |
| Mechanical Specifications | Form Factor | 1U Rack |
| Processing Capacity | ~4x Radius NX | |
| Dimensions | 1.70 x 17.11 x 15.05 in (4.32 x 43.46 x 38.22 cm) [without rack rails] | |
| Shipping Weight | 26.46 lb (12 kg) | |
| Included Rack Rail Kit | HPE Easy Install Rail 12 Kit | |
| Power | Power Supplies | Dual Redundant Hot Swappable |
| Rated Line Voltage | 100 to 120 VAC; 200 to 240 VAC | |
| Operating Environment | Standard Operating Temperature | 10° to 35°C (50° to 95°F) at sea level with an altitude derating 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. The maximum rate of change is 20°C/hr (36°F/hr). |
| Standard Operating Temperature | The upper temperature limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating above 30°C (86°F). | |
| Standard Operating Relative Humidity | 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. | |
| Non-operating Temperature Range | -30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr). | |
| Non-operating Relative Humidity | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
| Additional Specifications | ||
| Part Numbers | Server D100 | 80-0231 |
