Jupiter DSP for AV projects

Pick an App. Tailor It to Your Project.

Jupiter brings the best of ease of use and flexible app-based configurations to configure systems for mixing, routing, public address, distribution, sound reinforcement and more with unmatched speed and without limitations. Simply choose an app to meet project needs and customize the parameters as needed.

Pre-Configured, Tested, and Ready to Go

3 Input/Output models
85 Configured Apps
4x4 GPIO

Application based processor for analog environments.

Jupiter

Simple Installation

Easily deploy systems with near zero programming time to slash installation costs.

Application Choices

Choose among over 85-plus audio processing applications fully tested and ready to go makes deployment for zone mixing, paging, and background music management solutions fast and easy.

Optimized Software

Save set up time with a connection wizard a low learning curve along with fast and easy network linking to the system.

Processing Power

Utilize an abundance of resources for dynamics, EQ, FIR filters, feedback fighters, loudspeaker management, auto-mixing, and matrixing for incredible sound in any deployment.

Key Features

3 Audio Input/Output models: 4x4, 8x8, and 12x4
85 Configured Apps for a broad range of categories
High Performance Symetrix preamps
Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control

Controllable with Symetrix ARC wall panel controllers, ARC-WEB interfaces, 3rd party touch-screens via RS-232 or UDP/IP
4x4 GPIO
Ethernet port for programming

Download the Software to Configure Jupiter

Jupiter Downloads

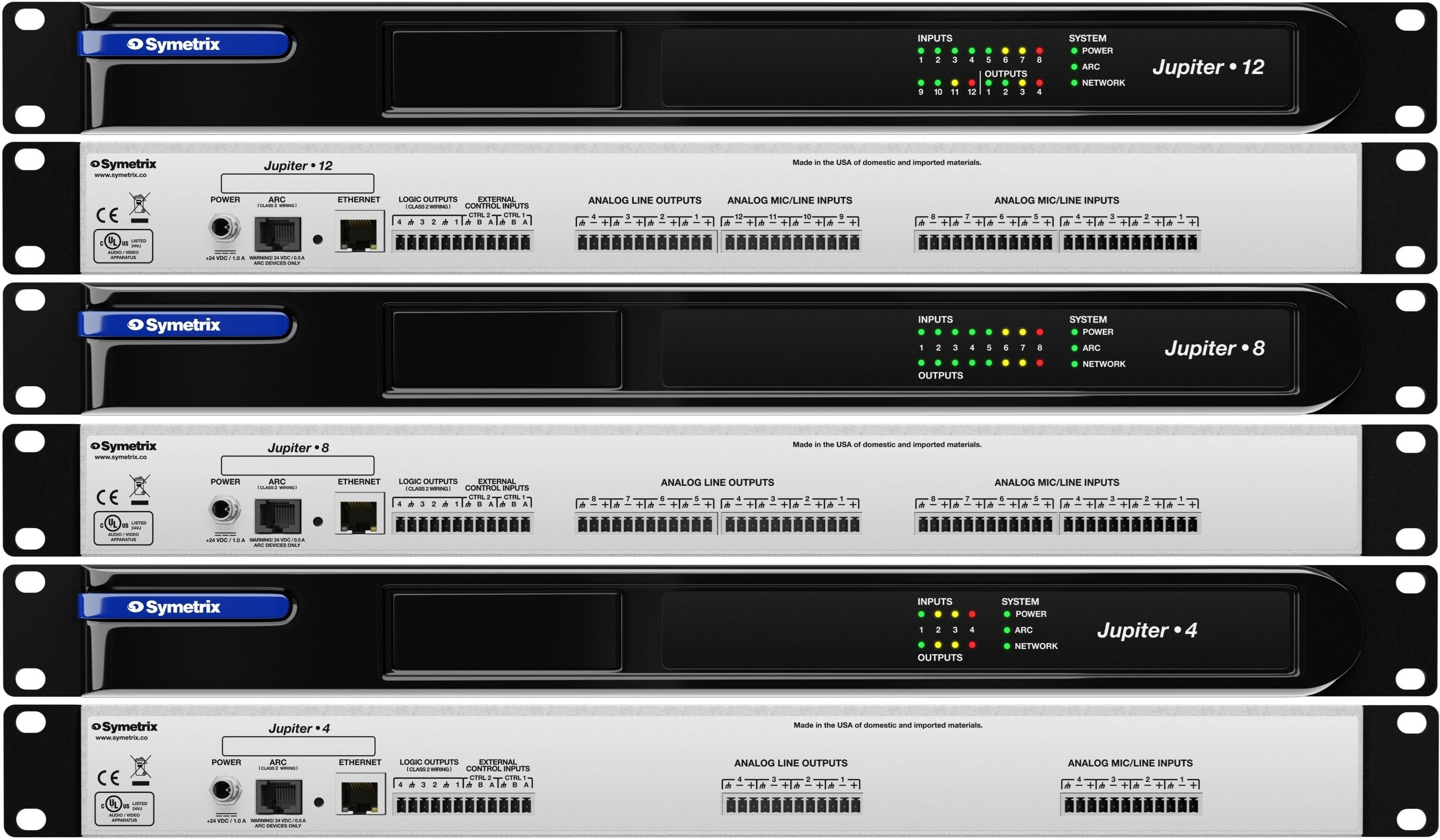

Jupiter 4

Flexible Fixed Architecture DSP with 85 preconfigured apps
4 mic/line inputs
4 line outputs
High Performance Symetrix preamps4x4 GPIO
ARC Remote Port
Ethernet port for programming with Jupiter software for Windows
Embedded web server provides remote metering, diagnostics
and configurable ARC-WEB browser control
Flexible user control via ARC remotes, ARC-WEB, TCP/UDP
Dedicated front panel LEDs display audio levels and system status
External Power Supply

Jupiter 8

Flexible Fixed Architecture DSP with 85 preconfigured apps
8 mic/line inputs
8 line outputs
High Performance Symetrix preamps
4×4 GPIO
ARC Remote Port
Ethernet port for programming with Jupiter software for Windows
Embedded web server provides remote metering, diagnostics
and configurable ARC-WEB browser control
Flexible user control via ARC remotes, ARC-WEB, TCP/UDP
Dedicated front panel LEDs display audio levels and system status
External Power Supply

Jupiter 12

Flexible Fixed Architecture DSP with 85 preconfigured apps
12 mic/line inputs
4 line outputs
High Performance Symetrix preamps
4×4 GPIO
ARC Remote Port
Ethernet port for programming with Jupiter software for Windows
Embedded web server provides remote metering, diagnostics
and configurable ARC-WEB browser control
Flexible user control via ARC remotes, ARC-WEB, TCP/UDP
Dedicated front panel LEDs display audio levels and system status
External Power Supply

Models	P/N
Jupiter 4	80-0043
Jupiter 8	80-0037
Jupiter 12	80-0042

Specification	Detail	Jupiter-4	Jupiter-8	Jupiter-12
System Specifications	Latency	< 1.6 ms, input to output with all DSP inactive.	Y	Y
	THD + Noise	< -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain.	Y	Y
	Interchannel Crosstalk	< -90 dB @ 1 kHz, typical	Y	Y
	Dynamic Range	> 110 dB (A-Weighted), input to output.	Y	Y
	Frequency Response	20 Hz – 20 kHz, +/- 0.5 dB	Y	Y
	Sampling Rate	48 kHz	Y	Y
Mechanical Specifications	Electrical	100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.	Y	Y
	Space Required	1U (WDH: 48.02 cm x 19.05 cm x 4.37 cm / 18.91 in x 7.5 in x 1.72 in), depth is specified from front panel to back of connectors. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.	Y	Y
	Shipping Weight	8 lbs. (3.63 kg)	Y	Y
	Ventilation	Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.	Y	Y
	Certifications and Compliance	UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS	Y	Y
Inputs and Outputs	Analog Input Trim	+/- 24 dB	Y	Y
	Analog Phantom Power (per input)	+20 VDC, 20 mA maximum per input	Y	Y
	Analog Input Maximum Level	+23 dBu	Y	Y
	Analog Output Level Maximum	+24 dBu	Y	Y
	Nominal Analog Output Level	+4 dBu line level with 20 dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.	Y	Y
	Nominal Analog Input Level	+4 dBu line or -36 dBu mic level (software selectable) with 20 dB of headroom.	Y	Y
	Analog Mic Pre-amp Gain	+40 dB	Y	Y
	Analog Mic Pre-amp EIN	< -125 dBu, 22 Hz - 22 kHz, 100 Ohms source impedance	Y	Y
	Analog Input Impedance	> 18 k Ohms balanced, > 9 k Ohms unbalanced, > 2 k Ohms with phantom power engaged.	Y	Y
	CMRR	> 50 dB @ 1 kHz, unity gain	Y	Y
	Analog Output Impedance	200 Ohms balanced, 100 Ohms unbalanced	Y	Y
	Analog Input Connectors	3.81 mm terminal blocks	Y	Y
	Analog Output Connectors	3.81 mm terminal blocks	Y	Y
	Number of Analog Outputs	Eight (8) line level		Y
	Number of Analog Inputs	Eight (8) switchable balanced mic or line level		Y
	Number of Analog Outputs	Four (4) line level	Y
	Number of Analog Inputs	Four (4) switchable balanced mic or line level	Y
	Number of Analog Inputs	Twelve (12) switchable balanced mic or line level
