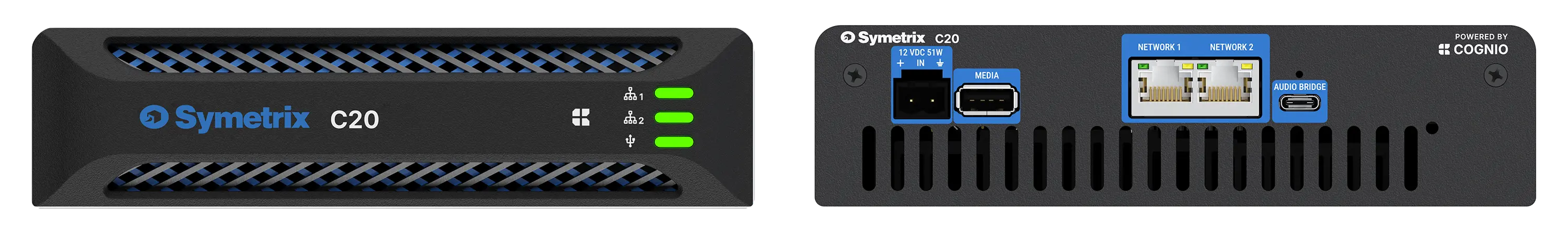

C20 Processor
Signal processing, AVoIP audio channels, and control, including connection to common computing and communications devices in a small-sized unit.
The C20 processor provides signal processing, audio channels, and control all in a single unit, and also bridges the gap between IP networks and USB-equipped devices.
Signal processing, audio bridging,
and playback in a single unit.
- 64 x 64 AVoIP channels
- 8 AEC channels
- 32 media playback channels
- 8x8 audio bridging
C20 fits into a variety of applications such as conferencing with AEC and bridging with personal devices.
Achieve unparalleled flexibility and scalability for audio control and network integration with management of Dante channels for use in diverse environments.
Provides high-quality audio signal processing and routing, including AEC for crystal-clear meetings.
Media playback and record is included via a USB-A port using a USB drive, including working with playlists.
Connect third-party and personal devices, control systems, and monitoring platforms to route signals, assign end points, control devices, and more.
Key Features
- 64 × 64 Dante I/O channels
- 8 AEC channels*
- 32 playback channels*
- 8 record channels*
- 8x8 USB-C Audio Bridging with HID Sync*
- 48 kHz, 24-bit Open Architecture Signal Processing (96kHz*)
- USB-C port (3.2)
- USB-A port (2.0)
- 2x 1Gb Ethernet ports
Run multiple independent Signal Flow Spaces on a single system
- *Some features will be available in upcoming software updates.
- Extensive control options via Symetrix Cognio DesignOps control screens, TC Series touchscreens, W3C Remote, and TCP/UDP
- Web server for third-party control and personal device integration
- Third-party control via an extensive driver library and custom Lua scripting
- External Control using JSON-RPC
- Meets modern security standards, including encrypted communications, secure boot, secure firmware updates, and hardware locking
Manage with Software
Use Cognio DesignOps Software to set up, control, and maintain C20 throughout deployment and operation.
Training & Resources
This course teaches a modern, software-first approach to designing, configuring, and validating scalable AV systems in Cognio using code-free workflows, reusable templates, and offline testing tools.
Credits: 1 CTS RU | CTS, CTS-D, CTS-I, ANP
Access on-demand webinars and videos featuring best practices, how-to guides, and troubleshooting support for using Cognio effectively.
Your complete reference for designing, deploying, and managing AV systems with Cognio.
Performance and Processing
- Advanced, high-quality audio signal processing
- Software-based system running on a standard processor
I/O Capabilities
- 64 × 64 Dante IO
- 8 channels of AEC
- 32 media playback channels
- 8 media record channels
- 8x8 audio bridging
Control and Monitoring
- An embedded web server provides third-party and personal device browser-based control
- Extensive control options via Cognio DesignOps control screens, TC Series touchscreens, W3C remote, personal devices, and TCP/UDP
- Third-party control via software modules
- Lua scripting support included
| Models | P/N |
| C20 | 80-0235 |
| Specification | Detail | |
| System Specifications | Platform | x86 Multi-core CPU |
| Sampling Rate | 96/48 kHz | |
| Ethernet Dante Inputs | 1x RJ45 1 Gbit/Sec | |
| Ethernet Control Inputs | 1x RJ45 1 Gbit/Sec | |
| USB | 1x USB 3.2 Type C, 1x USB 3.2 Type A | |
| Configuration | Dante Channels | 64 x 64 |
| AEC Channels | 8 @ 256 ms tail length | |
| Playback Channels | 32 | |
| Record Channels | 8 | |
| Audio Bridging | 8x8 | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| Mechanical Specifications | Form Factor | 1U rack height, rack or surface mount |
| Dimensions | 1.7 x 6.7 x 7.4 in (43 x 171 x 188 mm | |
| Shipping Weight | 2.1lb (0.95 kg) | |
| Power | Power Supply | External |
| Rated Line Voltage | 100 to 240 VAC, 12 to 24 VDC, 51 W | |
| Operating Environment | Standard Operating Temperature | 0° to 40°C (32° to 104°F) at sea level with an altitude derating). |
| Standard Operating Relative Humidity | 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.. | |
| Non-operating Temperature Range | -30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr). | |
| Non-operating Relative Humidity | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
| Part Numbers | C20 Processor | 80-0235 |
