W-Series Controllers

Simple and Reliable AV System Management

W-Series remotes include OLED displays and dedicated knobs and buttons for source selection, volume, mute, and preset recalls using standard IP communication over Ethernet as part of single, standardized infrastructure.

Source selection, volume, mute,
and preset recalls

PoE
Black or white finishes
Standard Decora faceplates
Multi-language support in displays

Tactile Control That Connects the Entire System

W-Series

Flexible Interaction

Program displays with labeling including support for other languages and symbols.

Simple Operation

Enable all types of users to control systems with clear feedback and no training needed.

Control Choices

Access system parameters with a choice of buttons, rotary encoders, and displays.

PoE

Keep installation simple with single cable connectivity utilize power over Ethernet eliminating the need for external power supplies.

Ready to Deploy W-Series Wall Controllers in Your Next Project?

Start with Our Training Course

https://symetrix.talentlms.com/plus/catalog/courses/208

Key Features

Standard PoE switch
Support for standard Decora faceplates

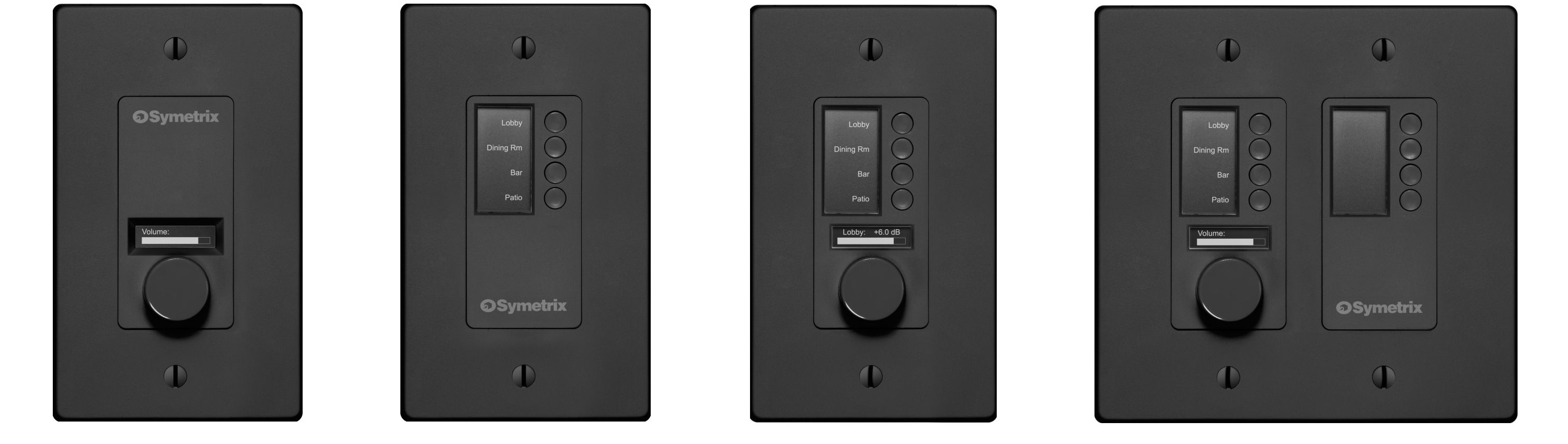

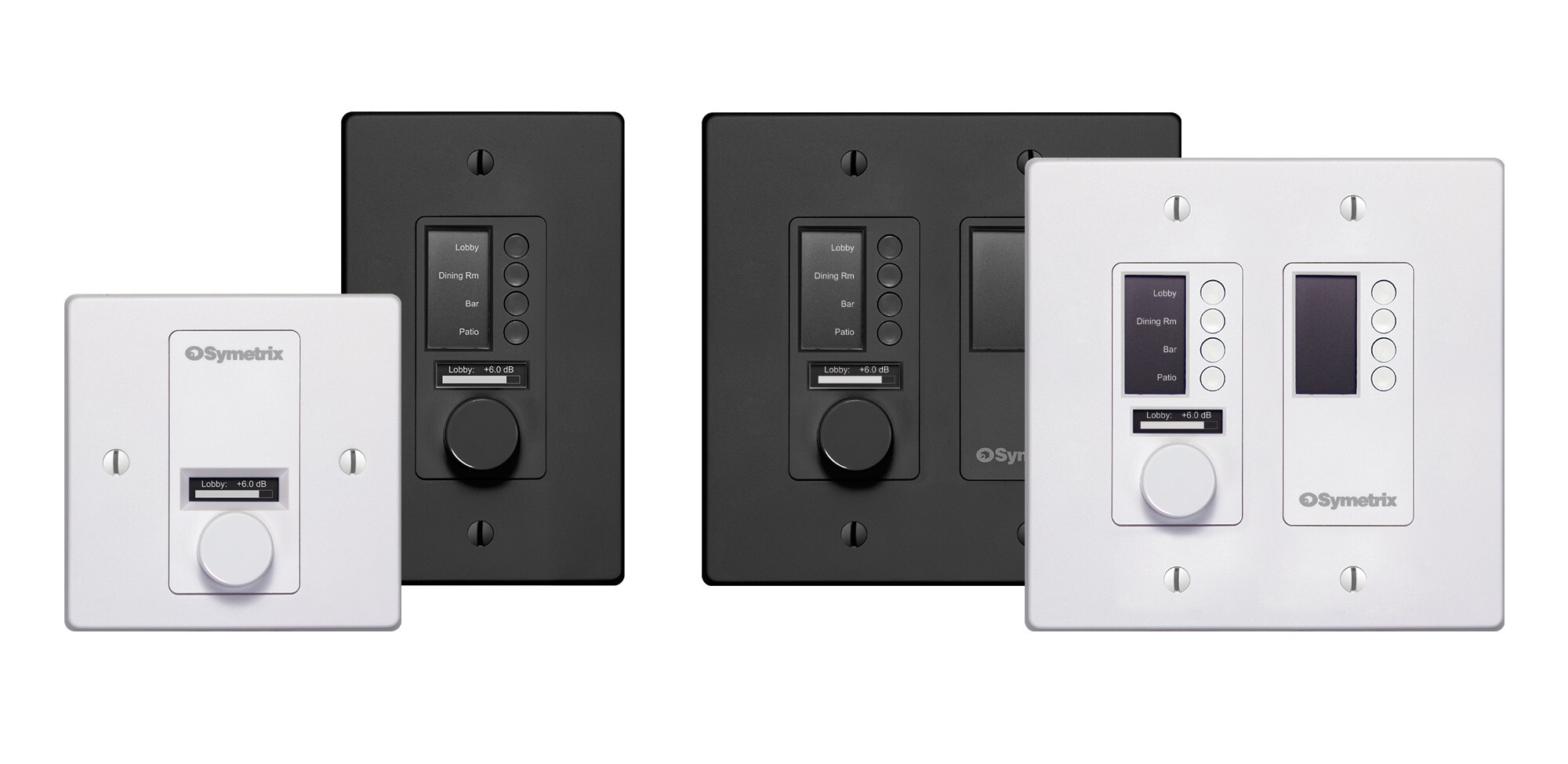

W1, W2. W3 models available in US or EU single gang form factors and black or white finishes

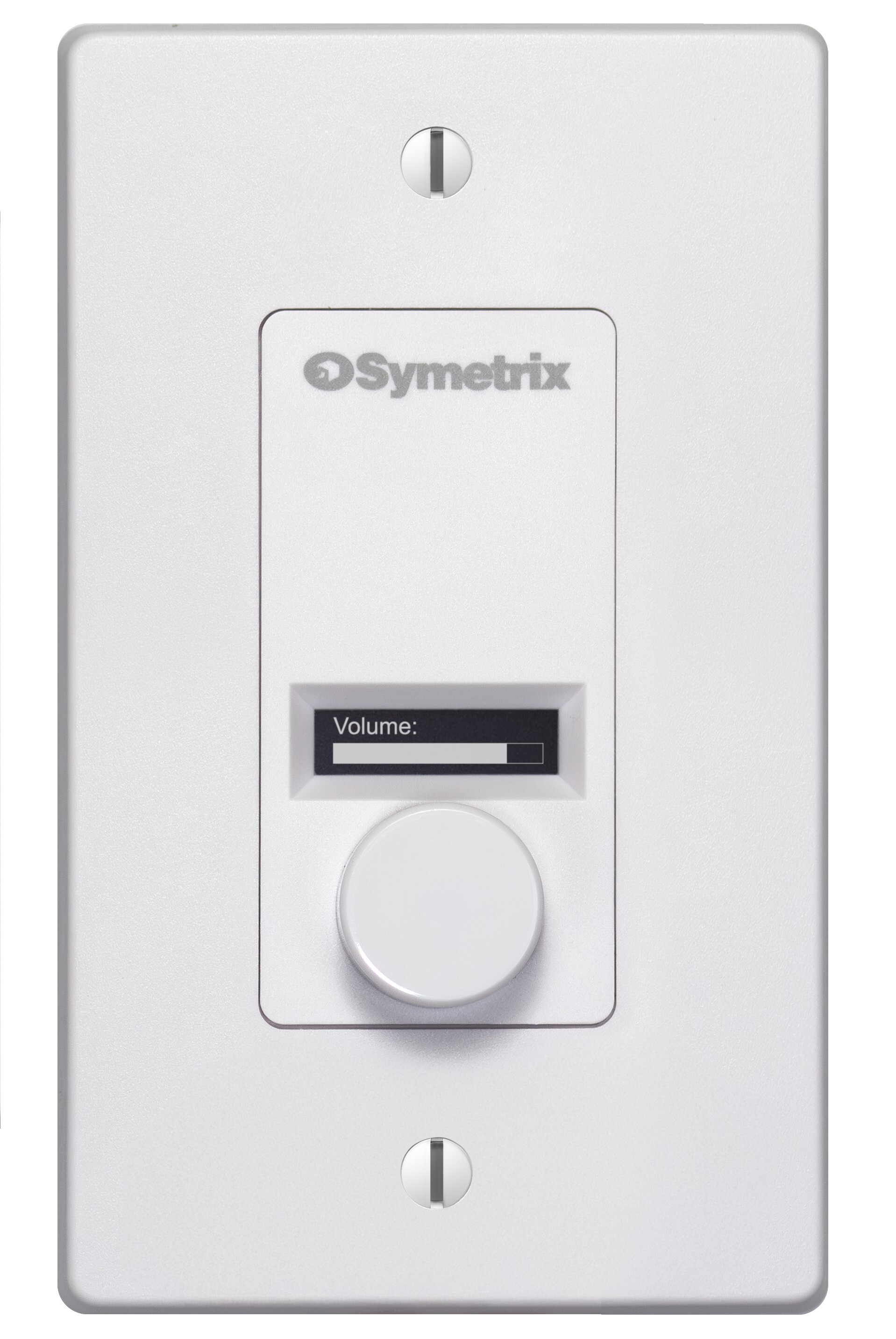

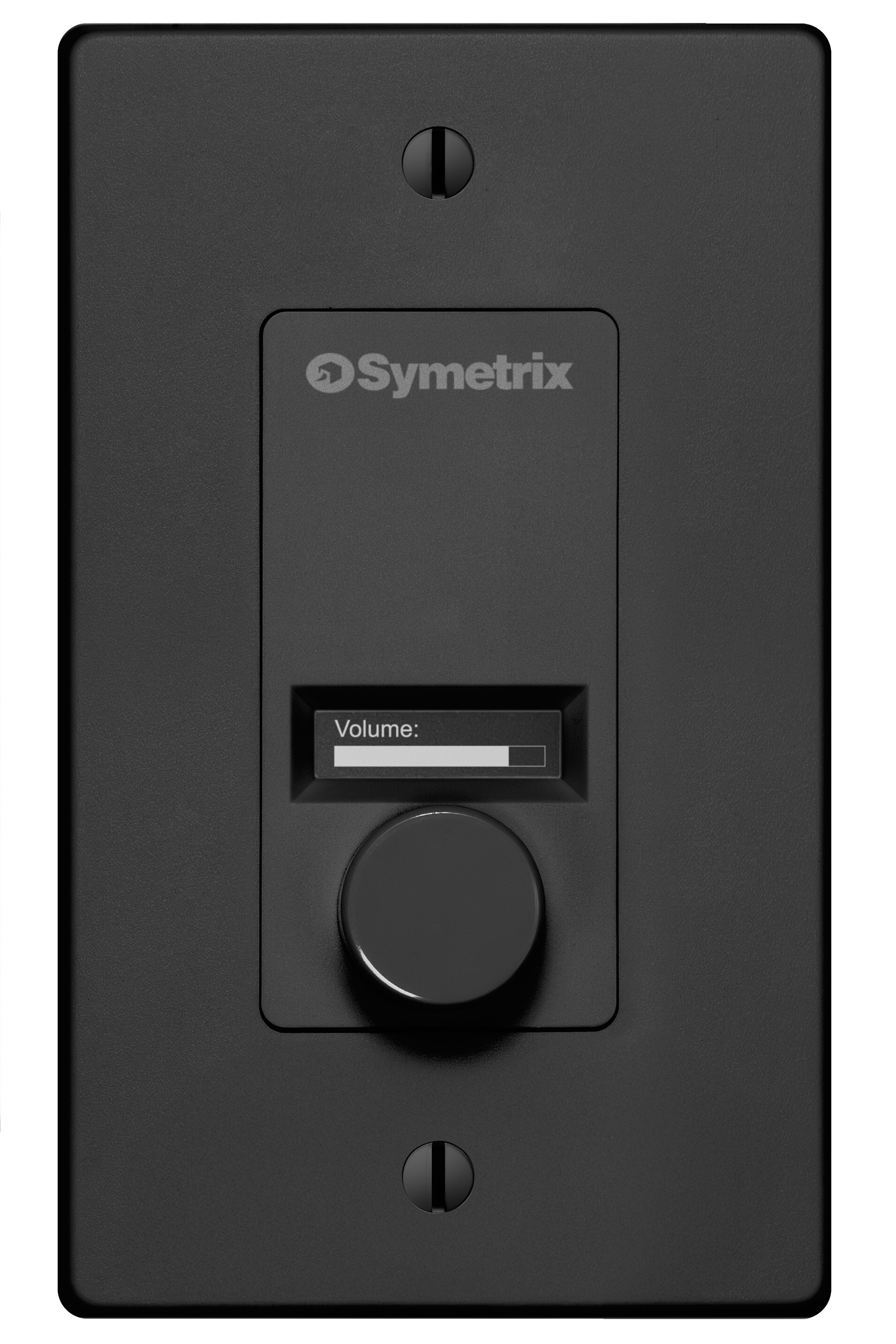

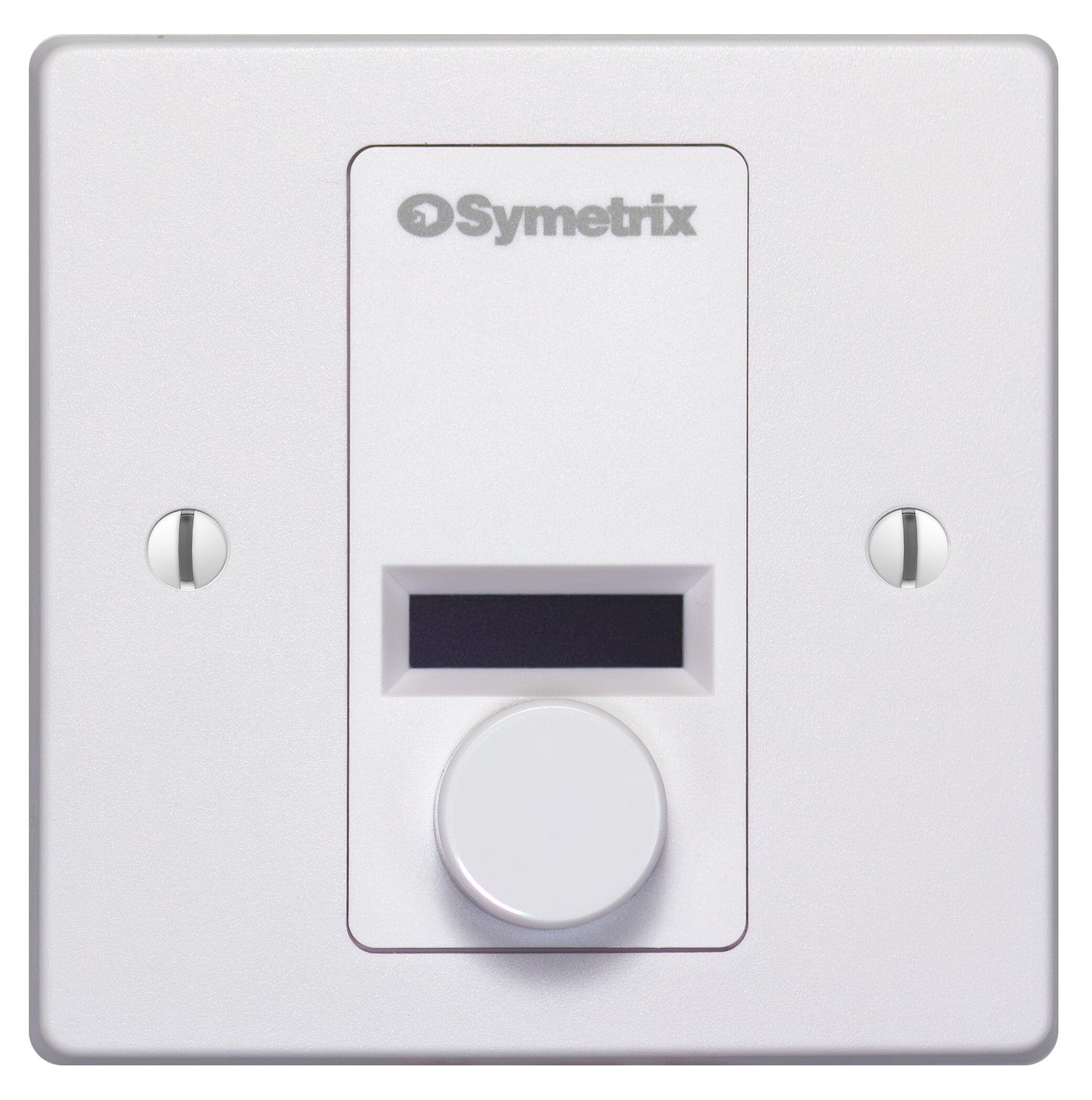

W1 Push button encoder and display

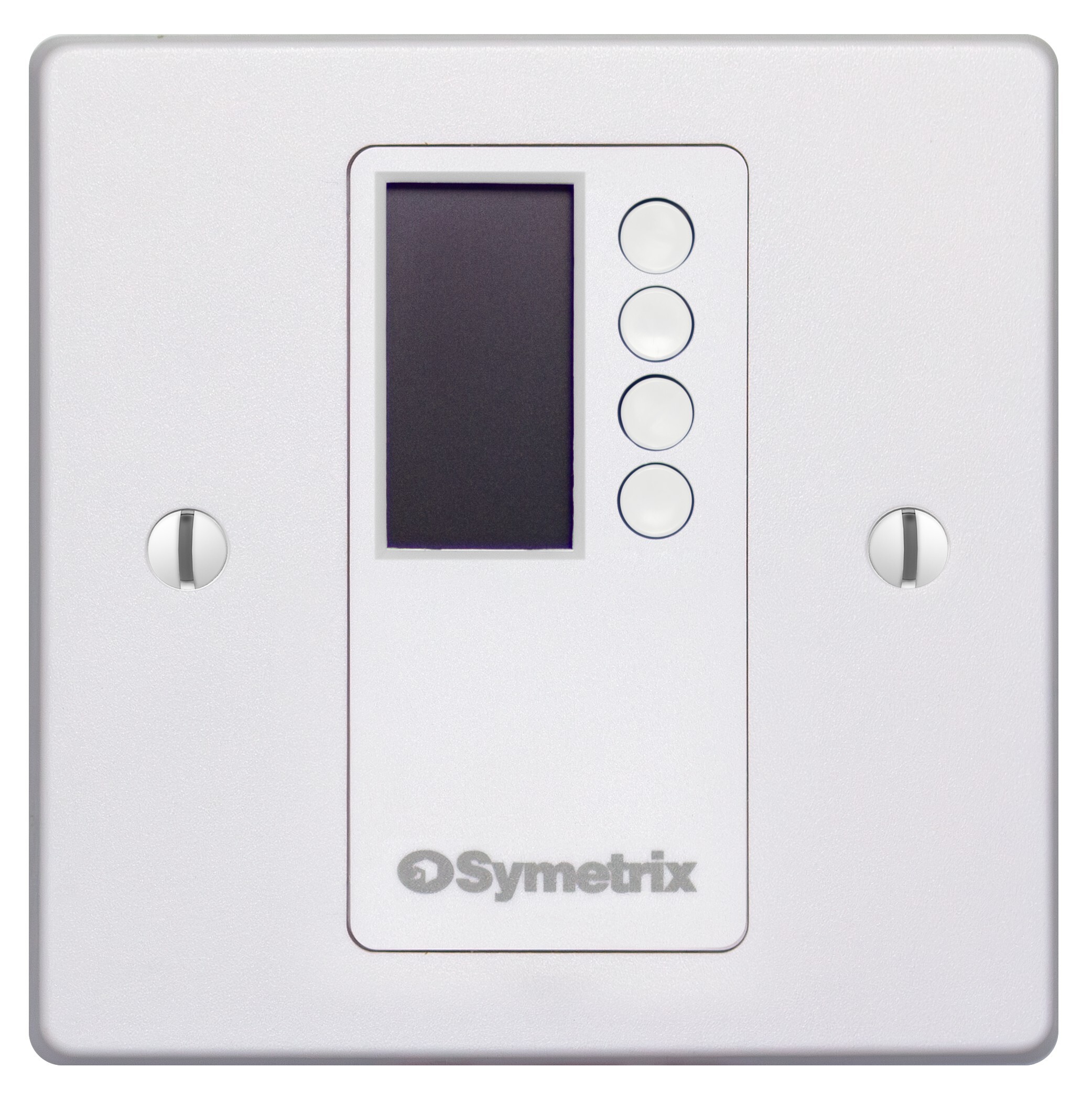

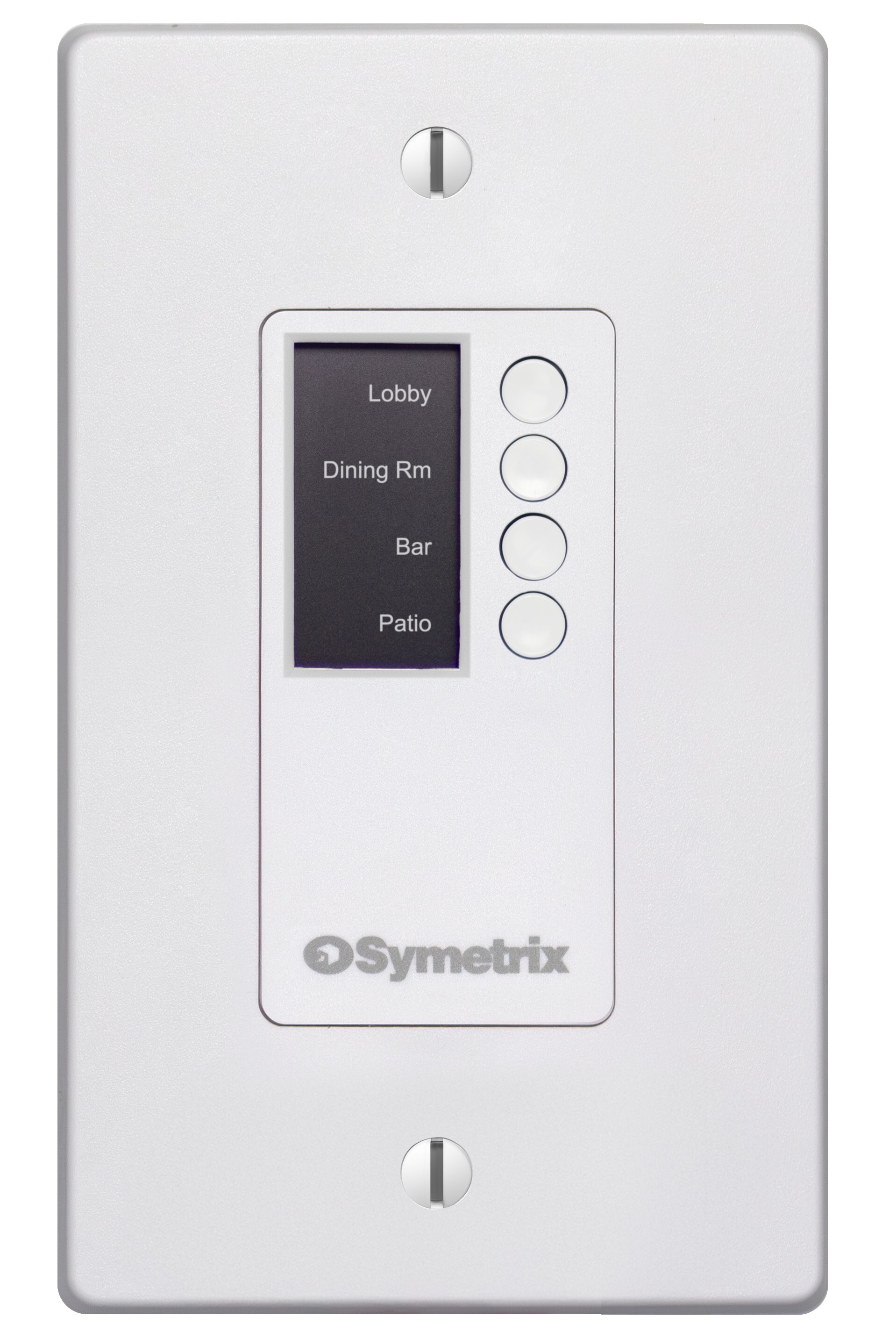

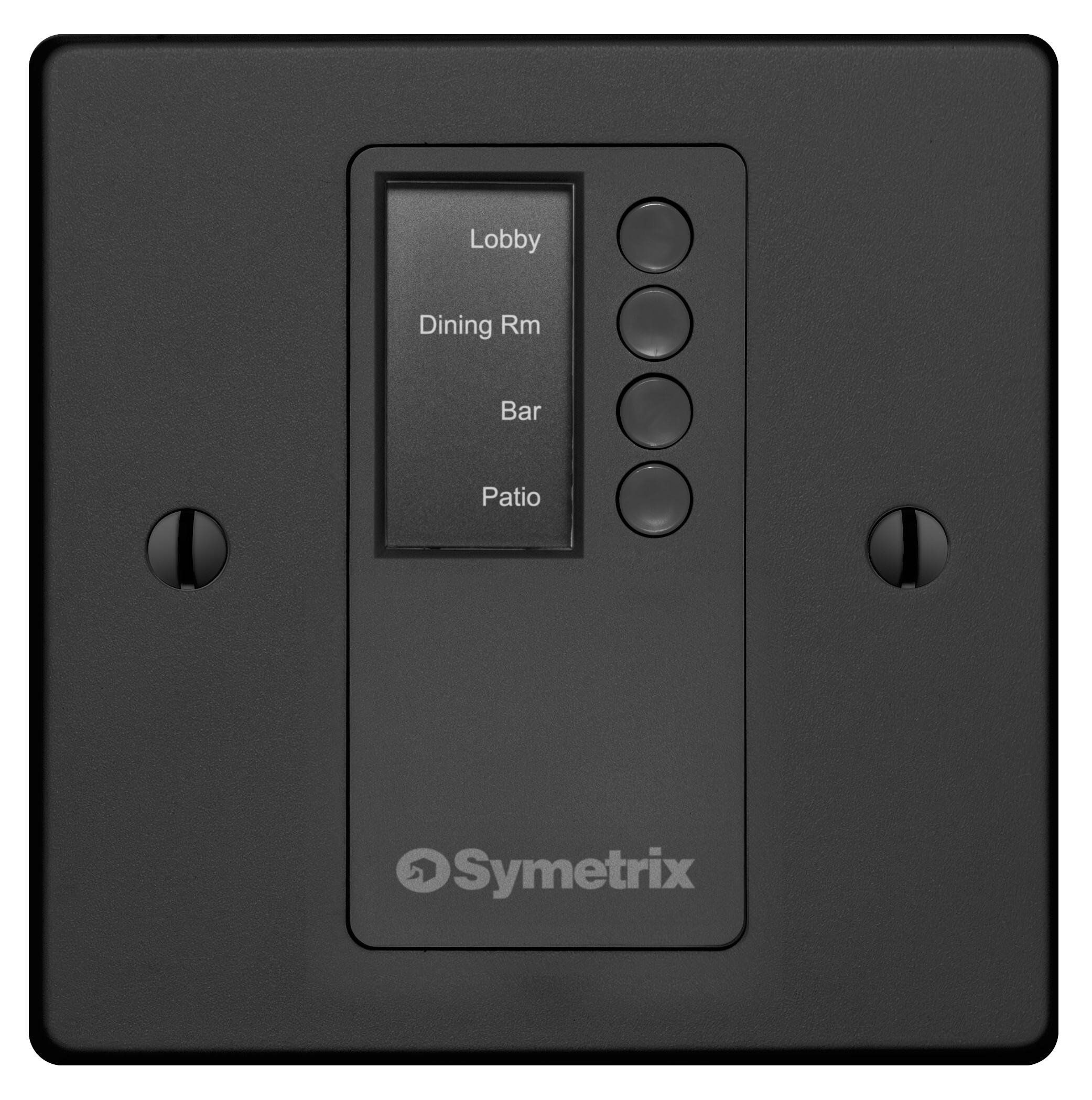

W2 Four momentary buttons and display

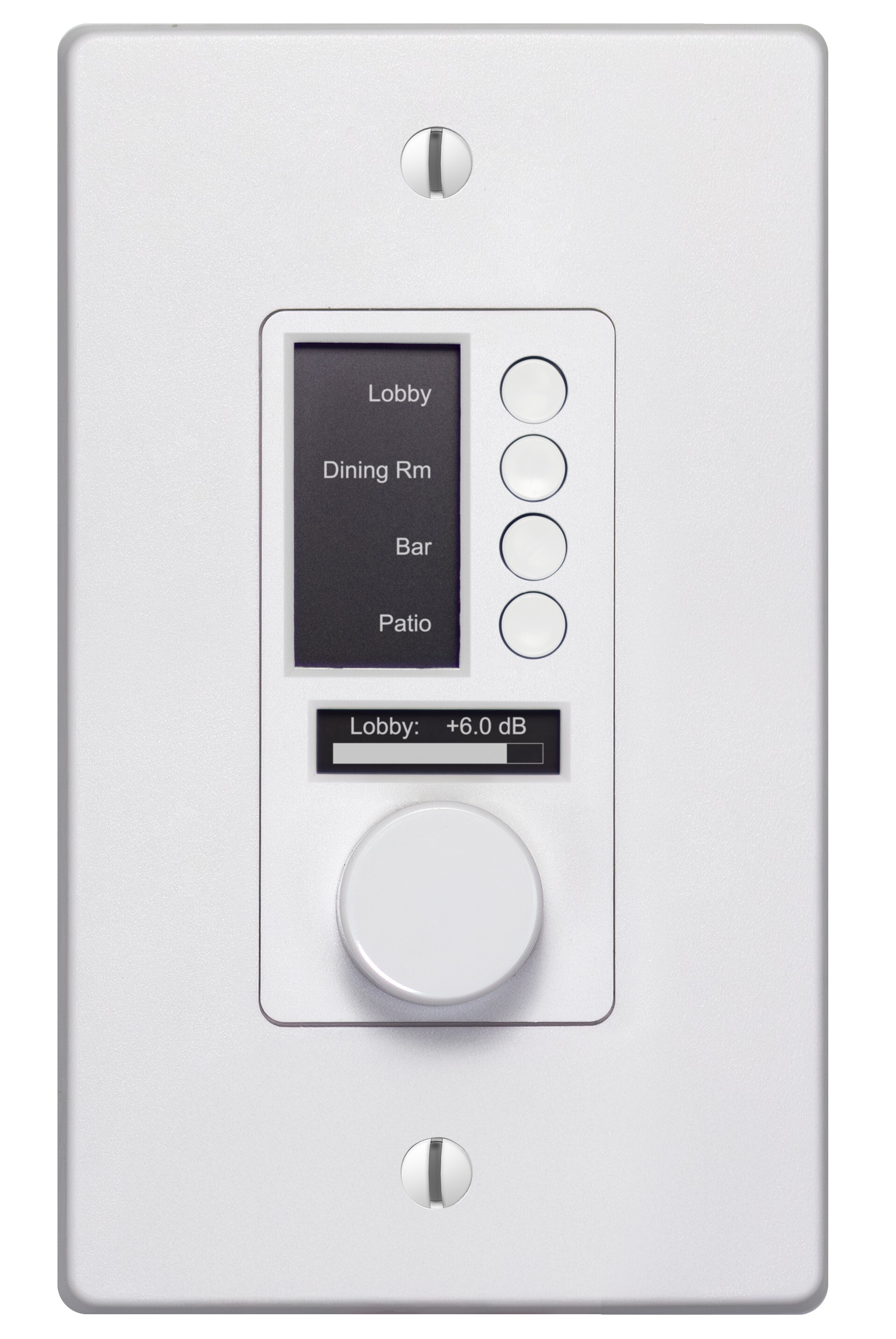

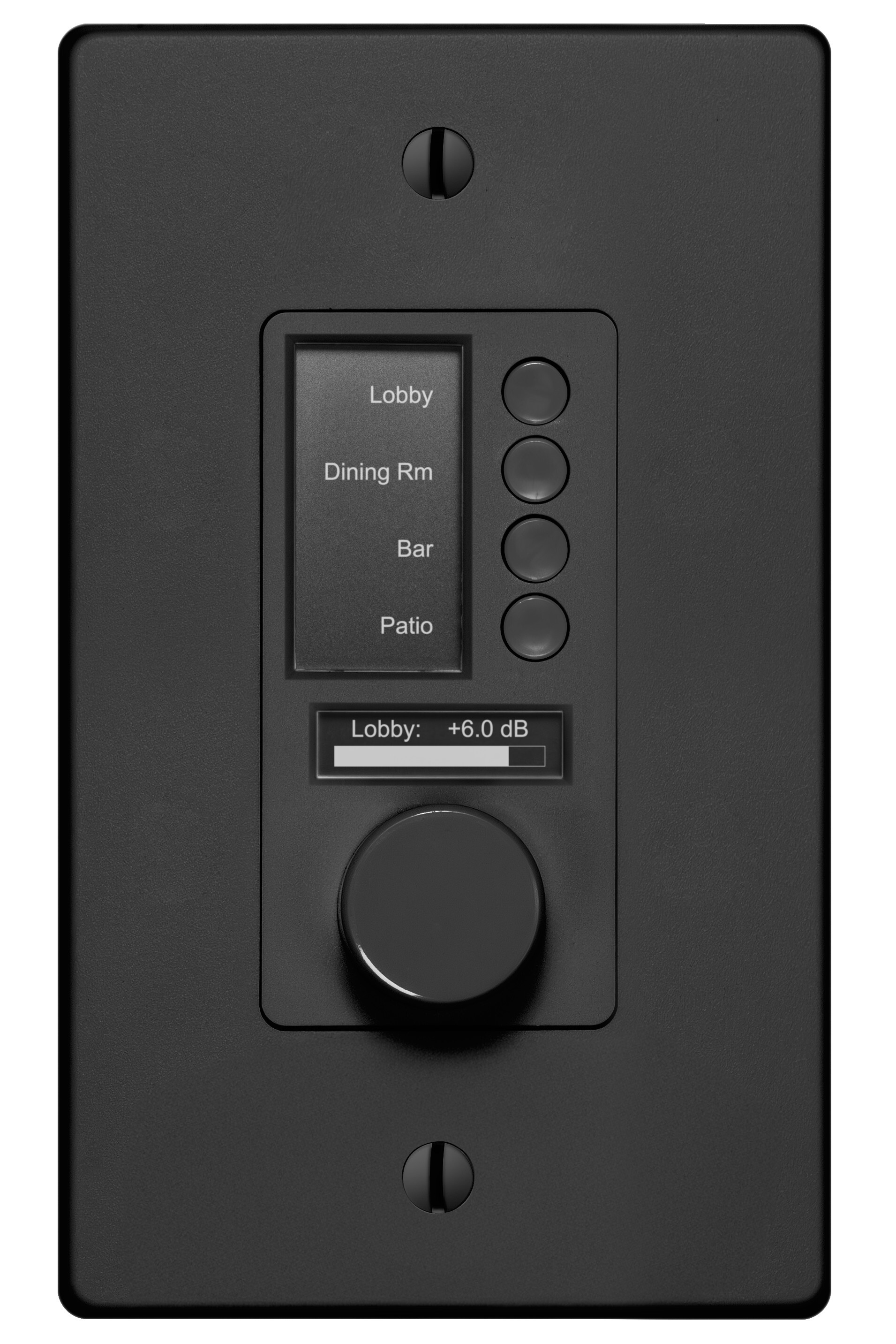

W3 Push button encoder, four buttons, and display

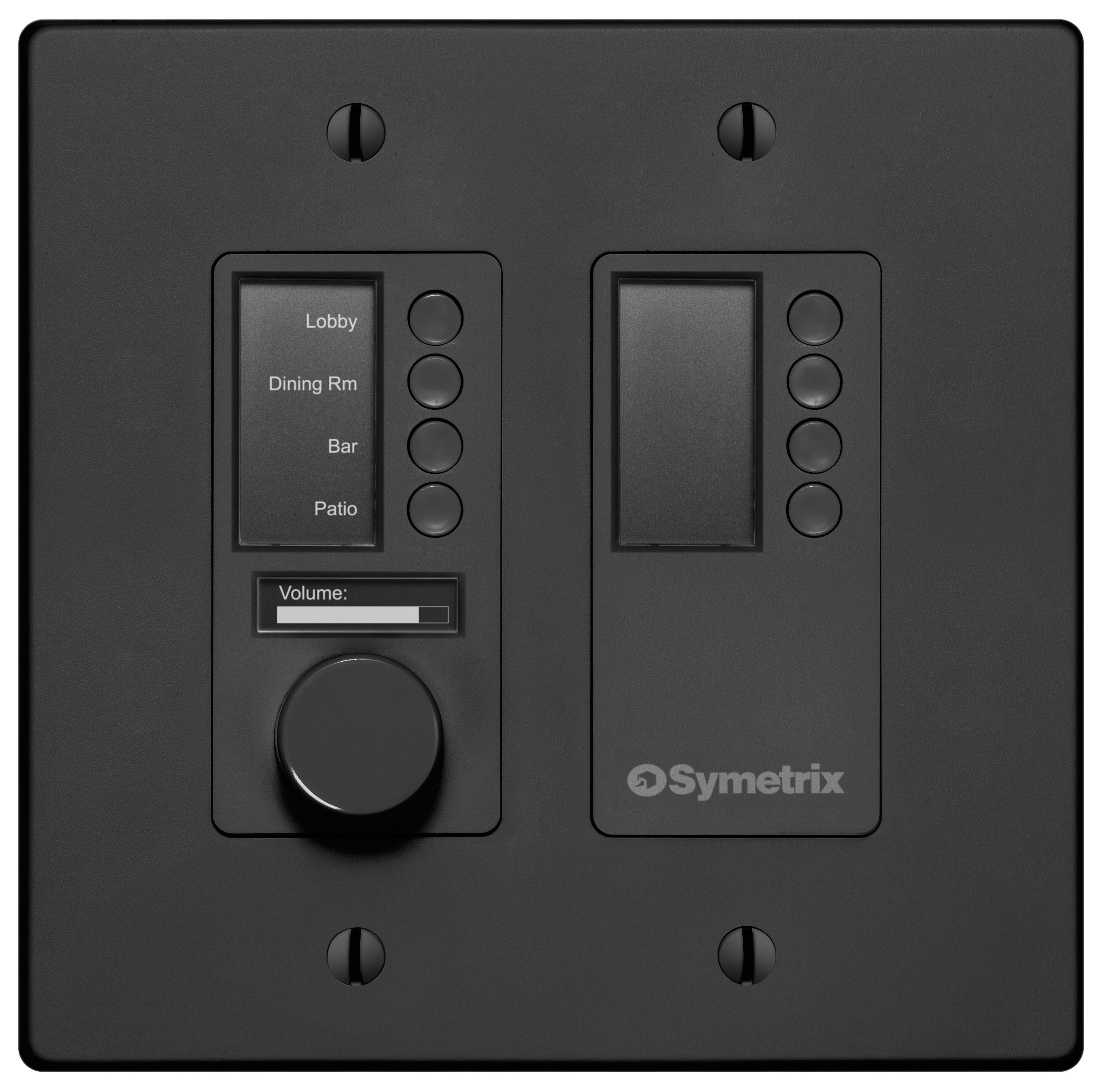

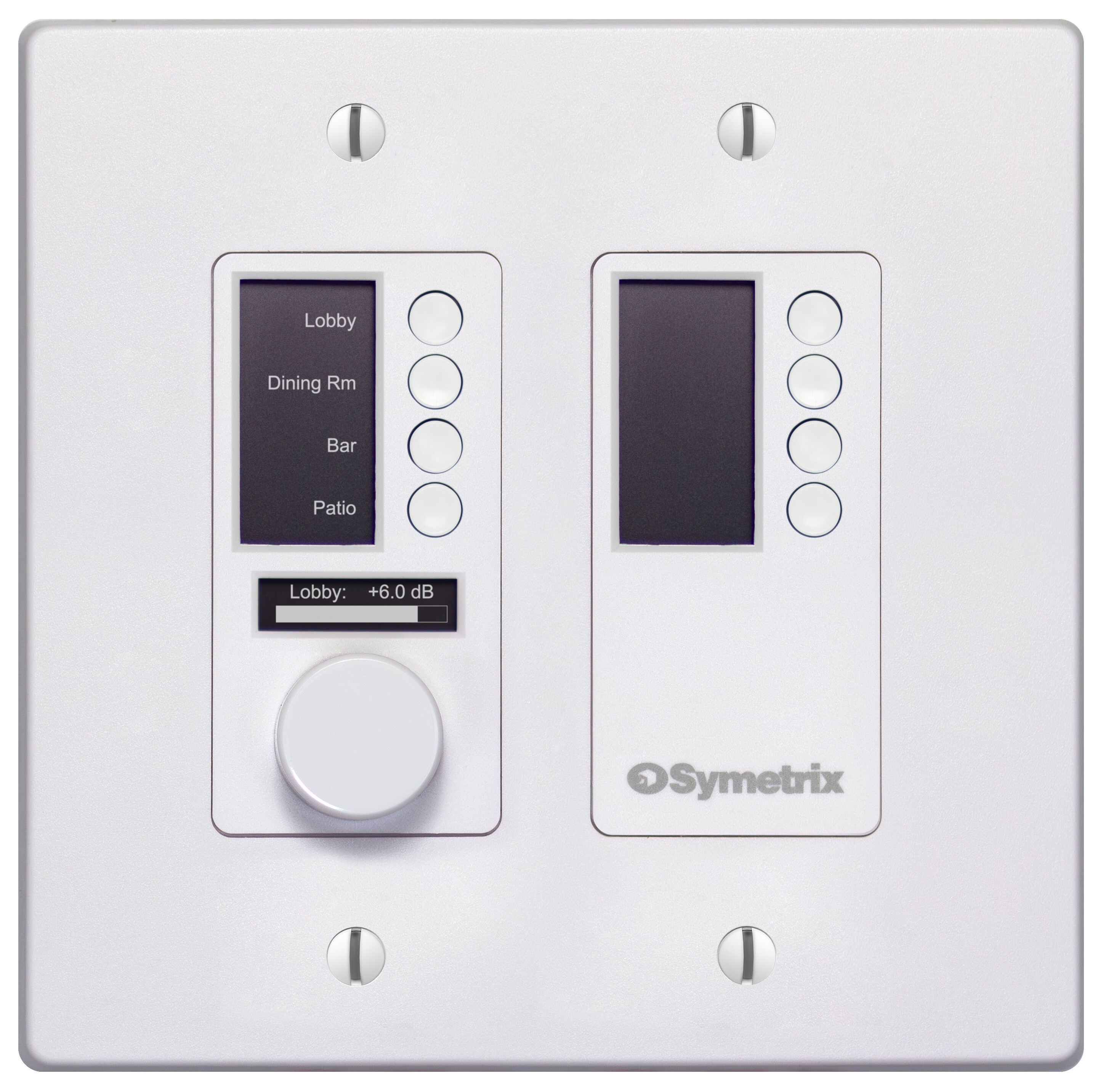

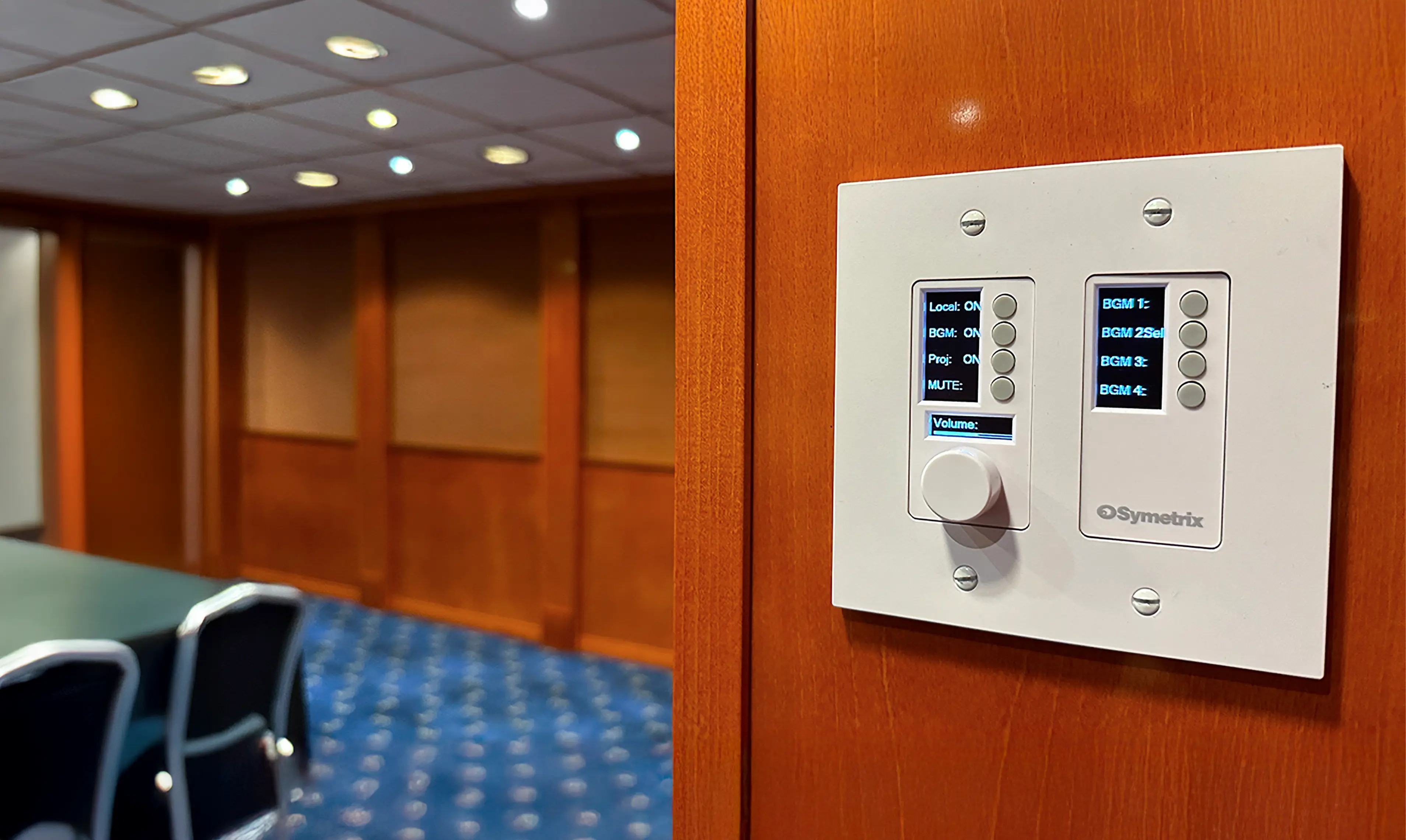

W4 Push button encoder, eight buttons, and display, US 2-gang form factor with dual gang Decora faceplates

Download the Software to Configure W-Series

Composer Downloads

Configuration and Mounting Options

Programmable with Symetrix Composer software
Simple deployment with a standard PoE switch
Supports standard Decora faceplates
Available in black or white finishes

Feature	W1	W2	W3	W4
Push button encoder and display	x
4 momentary buttons and display		x
Push button encoder, 4 buttons, and display			x
Push button encoder, 8 buttons, and display				x
US EU single gang form factor	x	x	x
US double gang form factor				x

Models	P/N
W1 US Black	80-0174
W1 US White	80-0175
W1 Euro Black	80-0183
W1 Euro White	80-0184
W2 US Black	80-0172
W2 US White	80-0173
W2 Euro Black	80-0181
W2 Euro White	80-0182
W3 US Black	80-0170
W3 US White	80-0171
W3 Euro Black	80-0179
W3 Euro White	80-0180
W4 US Black	80-0176
W4 US White	80-0177

	Specification	Detail	W-1	W-2	W-3	W-4
System Specifications	Control User Interface	One rotary encoder with push-button knob	Y
	Control User Interface	4 Push-button switches		Y
	Control User Interface	One rotary encoder with push-button knob and 4 push-button switches			Y
	Control User Interface	One rotary encoder with push-button knob and 8 push-button switches				Y
	Display Type	High-contrast OLED	Y	Y	Y	Y
	Display Viewable Area	0.91 in. (23.11 mm) diagonal	Y
	Display Viewable Area	1.3 in. (33.02 mm) diagonal		Y
	Display Viewable Area	0.91 in. (23.11 mm) and 1.3 in. (33.02 mm) diagonal			Y
	Display Viewable Area	0.91 in. and 2x 1.3 in. (33.02 mm) diagonal				Y
	Network Connector	RJ-45	Y	Y	Y	Y
	Network Transmission Speed	100 Mbps	Y	Y	Y	Y
	Physican Network Layer	Ethernet	Y	Y	Y	Y
	Power	PoE 802.3af Class 0	Y	Y	Y	Y
Mechanical Specifications	Certifications and Compliance	IEC 60065; EN 55032; EN 55103-2; EN 61000-3-2; EN 61000-3-3 (EMC International); FCC Part 15 (EMC-USA); RoHS	Y	Y	Y	Y
	Dimensions	1.78 in. x 4.25 in. x 1.34 in.	Y	Y	Y
	Dimensions	3.6 in. x 4.25 in. x 1.34 in.				Y
	Form Factor	Single gang, Decora	Y	Y	Y
	Form Factor	Double gang, Decora				Y
