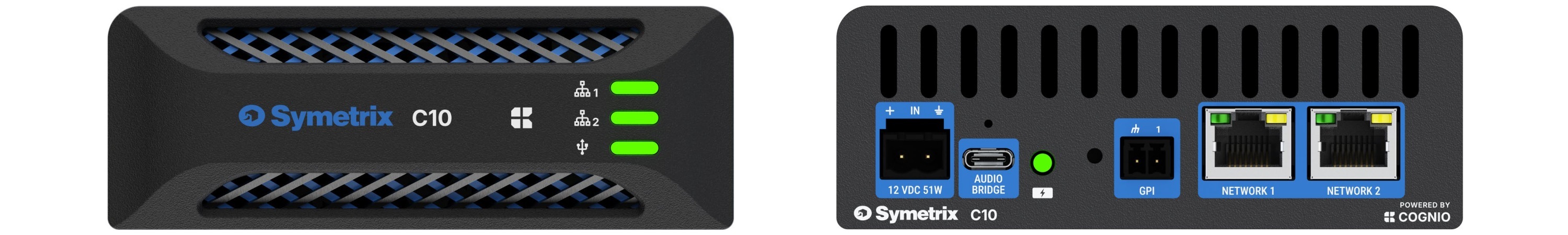

C10 Processor
Compact unit with signal processing, AVoIP audio channels, and control, including connection to common computing and communications devices.
The C10 processor provides signal processing, audio channels, and control all in a single unit, and also bridges the gap between IP networks and USB-equipped devices.
Signal processing, audio channels, and control all in a single unit.
- 16 x 16 AVoIP channels
- 2 AEC channels
- 2x2 audio bridging
Place C10 in a variety of small spaces to manage an entire room.
Achieve unparalleled flexibility and scalability for audio control and network integration with management of Dante channels for use in diverse environments.
Provides high-quality audio signal processing and routing, including AEC for crystal-clear meetings.

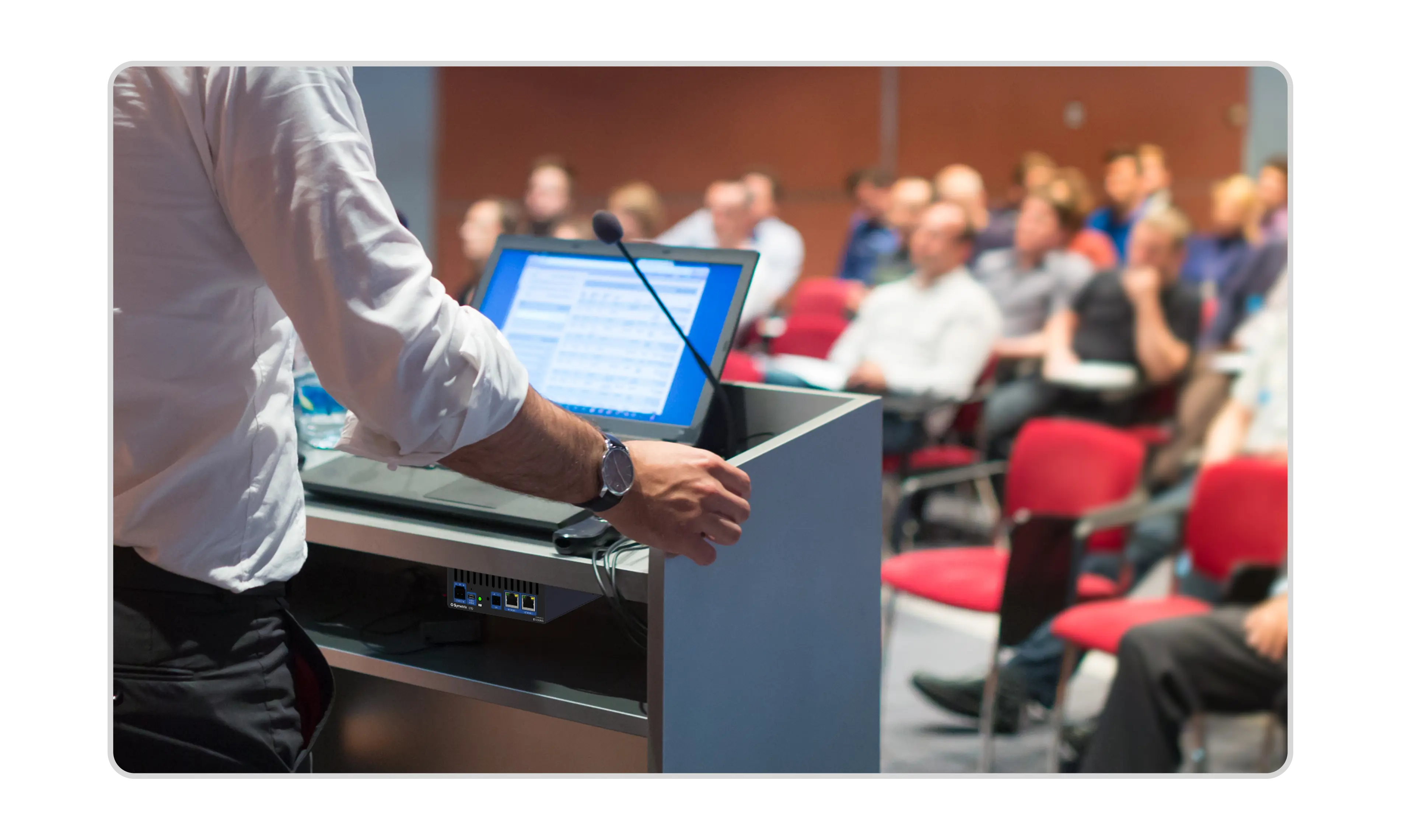

Transmit and receive audio to and from user supplied computers, tablets, and smartphones to use in classrooms, conference rooms, and courtrooms.
Connect third-party and personal devices, control systems, and monitoring platforms to route signals, assign end points, control devices, and more.
Key Features
- 16x16 transmit and receive Dante channels
- 2 AEC channels
- 2x2 USB-C Audio Bridging with HID Sync
- 48 kHz/96 kHz, 24-bit Open Architecture Signal Processing
- USB-C port (3.2)
- 2x 1Gb Ethernet ports
- GPI port
- Run multiple independent Signal Flow Spaces on a single system
- Extensive control options via Symetrix Cognio DesignOps control screens, TC Series touchscreens, W3C Remote, and TCP/UDP
- Web server for third-party control and personal device integration
- Third-party control via an extensive driver library and custom Lua scripting
- External Control using JSON-RPC
- POE+ power
- Optional DC power enables 50W charging of user devices
- Surface or VESA mounting hardware included
- Rack-mounted with an optional accessory
Manage with Software
Use Cognio DesignOps Software to set up, control, and maintain C10 throughout deployment and operation.
Training & Resources
Course
Ready to learn how the C20 Smart Signal Processor Server integrates into the Cognio platform?
Webinar
An introduction to the Cognio Platform, covering its architecture, scalability, and unified AV capabilities.
Performance and Processing
- Advanced, high-quality audio signal processing
- Software-based system running on a standard processor
I/O Capabilities
- 16x16 transmit and receive Dante channels
- 2 AEC channels
- 2x2 USB-C Audio Bridging with HID Sync
Control and Monitoring
- An embedded web server provides third-party and personal device browser-based control
- Extensive control options via Cognio DesignOps control screens, TC Series touchscreens, W3C remote, personal devices, and TCP/UDP
- Third-party control via software modules
- Lua scripting support included
| Models | P/N |
| C10 | 80-0238 |
| Specification | Detail | |
| System Specifications | Platform | ARM Multi-core CPU |
| Sampling Rate | 96/48 kHz | |
| Ethernet Dante Inputs | 1x RJ45 1 Gbit/Sec | |
| Ethernet Control Inputs | 1x RJ45 1 Gbit/Sec | |
| USB | 1x USB 3.2 Type C | |
| GPI | 1x 2 pin terminal block connector | |
| Configuration | Dante Channels | 16 x 16 |
| AEC Channels | 2 @ 256 ms tail length | |
| Audio Bridging | 2x2 | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| Mechanical Specifications | Form Factor | 1U rack height, rack or surface mount |
| Dimensions | 1.7 x 4.7 x 7.4 in (42.76 x 119.8 x 187.6 mm). | |
| Shipping Weight | 1.5lb (0.68 kg) | |
| Power | Power Supply | External |
| Rated Line Voltage | 100 to 240 VAC, 12 to 24 VDC, 51 W | |
| Operating Environment | Standard Operating Temperature | 0° to 40°C (32° to 104°F) at sea level with an altitude derating). |
| Standard Operating Relative Humidity | 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. | |
| Non-operating Temperature Range | -30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr). | |
| Non-operating Relative Humidity | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
| Part Numbers | C10 Processor | 80-0238 |
