xIO IO DSP Audio Expanders

Flexible I/O Expansion for Symetrix DSPs

The xIO Expanders offer leading performance characteristics for top quality audio using the Dante protocol over standard IT networks.

Increase System Analog I/O Capacity

Dante enable

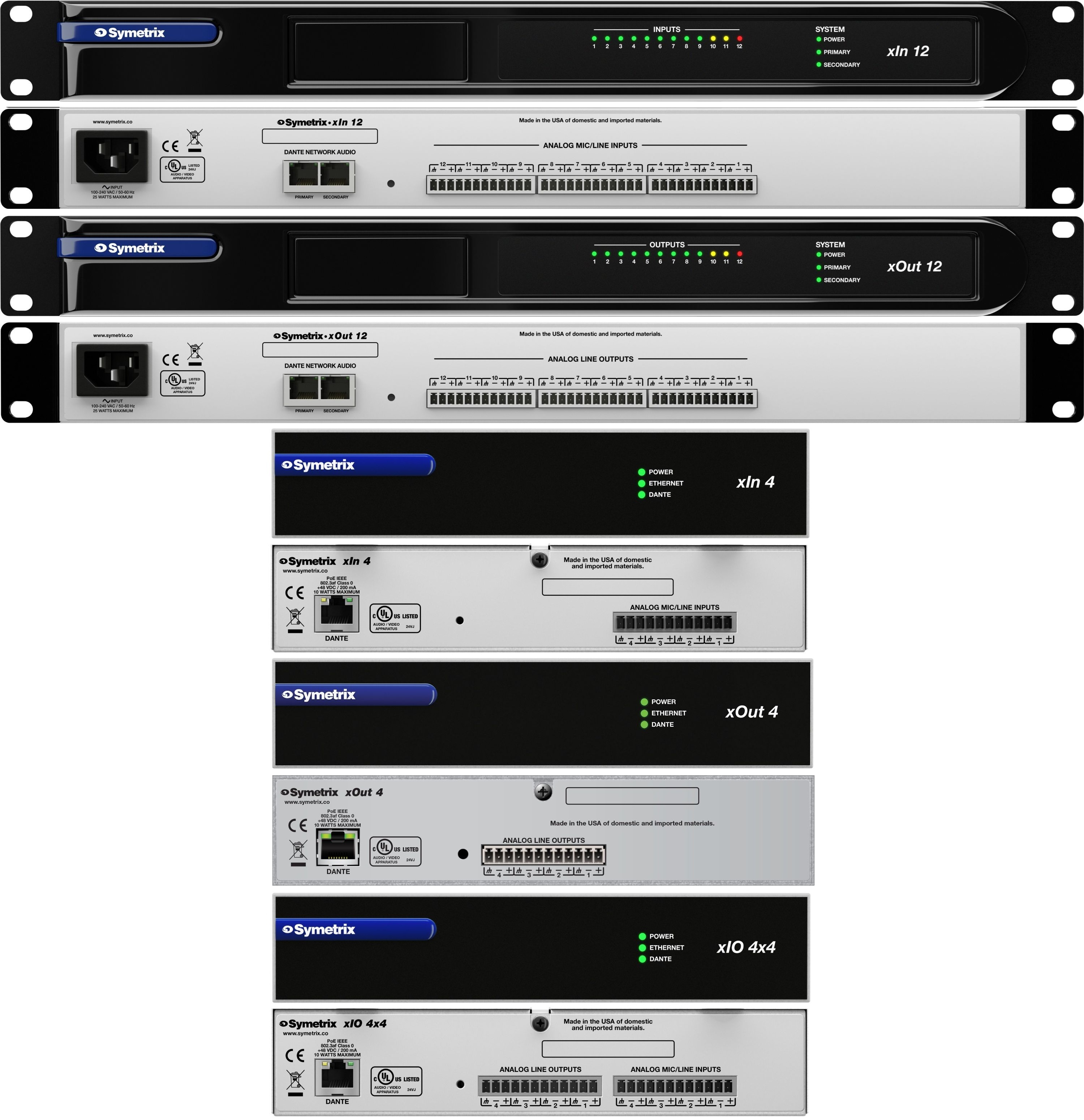

xIn 4 | xOut 4 | xIO 4×4: PoE, 1/2 Rack
xIn 12 | xOut 12: network switch, internal power
xIO Stage 4×4: XLR digital snake, wall or floor mount

Seamless I/O Expansion Across the Symetrix Ecosystem

xIO Expanders

High Performance

Experience ultra low latency resulting in no audible delays.

Simple Integration

Eliminate switches, circuit board jumpers, and mechanical adjustments as well as the need for third party applications with configuration and control from Composer software.

PoE

Keep installation simple with single cable connectivity on xIn 4 and xOut 4 models eliminating the need for external power supplies.

Enhanced Connectivity

Implement redundant Dante network audio using a secondary Gigabit Ethernet port on the xIn 12 and xOut 12 models or daisy-chain of up to 10 units with external network switches for even greater expansion.

Key Features

xIn 4 | xOut 4 | xIO 4×4
1/2 Rack Form Factor
PoE – injectors included
xIn 4– 4 analog mic/line inputs
xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs
xOut 4 – 4 analog outputs

xIn 12 | xOut 12
Built-in network switches for direct connections to DSP’s
Internal power supplies
xIn 12 – 12 analog mic/line inputs
xOut 12 – 12 analog mic/line outputs

xIO Stage 4×4
Premium 4 IN x 4 OUT Dante digital snake
Neutrik metal body DL series XLR connectors
Wall or floor mounted

xIn 4

1/2 Rack Form Factor.
PoE – injectors included.
4 analog mic/line inputs.
Optional rack and surface mounting kits sold separately.
4 channel Dante transmit.

xIn 12

12 channel Dante transmit.
Dante protocol over standard IT networks with ultra-low latency.
12 mic/line inputs, with +48 VDC phantom power and industry leading performance specifications.
Composer software setup and control eliminates switches, circuit board jumpers, mechanical adjustments, or the need for third-party software.
Dante (Secondary) gigabit Ethernet port supports redundant Dante network audio implementation or daisy-chaining of up to 10 units with external .network switches.
Internal universal input power supply.

xOut 4

1/2 Rack Form Factor.
PoE – injectors included.
4 analog outputs.
Optional rack and surface mounting kits sold separately.
4 channel Dante Receive.

xOut 12

12 channel Dante receive.
Dante protocol over standard IT networks with ultra-low latency.
12 line outputs, with industry leading performance specifications.
Composer software setup and control eliminates switches,
circuit board jumpers, mechanical adjustments, or the need for third-party software.
Dante (Secondary) gigabit Ethernet port supports redundant Dante network audio implementation or daisy-chaining of up to 10 units with external network switches.
Internal universal input power supply.

xIO 4×4

1/2 Rack Form Factor.
PoE – injectors included.
4 analog mic/line input.
4 analog outputs.
Optional rack and surface mounting kits sold separately.
4×4 Dante transmit and receive.

xIO Stage 4×4

Premium 4 in x 4 out Dante digital snake.
PoE.
Neutrik Metal body DL series XLR connectors.
14 gauge A1008 steel construction.
Wall or floor mounted.
Easily mounts in 8″ x 8″ NEMA Junction Box.

Feature	xIn 4	xIn 12	xOut 4	xOut 12	xIO 4x4	xIO Stage 4x4
4 mic/line inputs	x				x	x
12 mic/line inputs		x
4 line output			x		x	x
12 line outputs				x
½ Rack Size	x		x		x
1 Rack Unit		x		x
Floor/Wall Mount						x
PoE	x		x		x
Internal Power		x		x
Dual Ethernet Port		x		x

Models	P/N
xIn 4	80-0110
xIn 12	80-0086
xOut 4	80-0112
xOut 12	80-0090
xIO 4x4	80-0106
xIO Stage 4x4	80-0168

	Specification	Detail	xIn-4	xIn-12	xIO-4x4	xIO-4x4-Stage	xOut-4	xOut-12
System Specifications	Channel Separation (A/D)	> 111 dB @ 1 kHz, +24 dBu		Y
	Dante Cable	Standard CAT6, maximum device-to-device length = 100 m	Y	Y	Y	Y	Y	Y
	Frequency Response	20 Hz – 20 kHz, ± 0.5 dB					Y
	Frequency Response (A/D)	20 Hz – 20 kHz, ± 0.5 dB		Y
	Latency	1.92 mS (input to output, 1 mS Dante latency)				Y
	Output Channel Separation (D/A)	> 111 dB @ 1 kHz, +24 dBu						Y
	Output Frequency Response (D/A)	20 Hz – 20 kHz, ± 0.5 dB						Y
	Sampling Rate	48 kHz, ± 100 ppm	Y	Y	Y		Y	Y
	Sampling Rate	48 kHz				Y
Mechanical Specifications	Certifications and Compliance	UL 60065; cUL 60065; IEC 60065; FCC 15.109:2015; FCC 15.109(g):2015; FCC 15.107:2015, (CISPR 32); EN 55032:2012; EN 55103-2:2009; EN 61000-3-3:2013; EN 61000-3-2:2006; ICES-003:2012; RoHS	Y		Y		Y
	Certifications and Compliance	UL 60065; cUL 60065; IEC 60065; EN 55103-1; EN 55103-2; FCC Part 15; RoHS		Y				Y
	Certifications and Compliance	UL 60065; cUL 60065; IEC 60065; FCC 15.109; FCC 15.109(g); FCC 15.107; EN 55032; EN 55103-2; EN 61000-3-3; EN 61000-3-2; ICES-003; RoHS				Y
	Electrical	100-240 VAC, 50/60 Hz, 25 Watts maximum universal input. No line voltage switching required.		Y				Y
	Electrical	PoE IEEE 802.3af Class 0, 10 Watts maximum. No line voltage switching required (100-250 VAC, 50-60 Hz)	Y		Y	Y	Y
	Shipping Weight	12 lbs. (5.4 kg)		Y				Y
	Shipping Weight	4.4 lbs. (2.0 kg)	Y		Y		Y
	Shipping Weight	3.7 lbs (1.678 kg)				Y
	Space Required	Half rack unit; WDH: 8.2 inches (20.83 cm) x 9 inches (22.86 cm) x 1.72 inches (4.37 cm); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.	Y
	Space Required	1U; WDH: 18.91 in (48.02 cm) x 9.5 in (24.13 cm) x 1.72 in (4.37 cm); Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.		Y				Y
	Space Required	Half rack unit; WDH: 8.2 in. (20.83 cm) x 9 in. (22.86 cm) x 1.72 in. (4.37 cm); Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.			Y		Y
	Space Required	Minimum requirement of 8 in. x 8 in. x 4 in. electrical enclosure				Y
	Ventilation	Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.	Y	Y	Y		Y	Y
Inputs and Outputs	ADC Latency	0.30 mS				Y
	Analog Input Channel Separation	> 111 dB @ 1 kHz, +24 dBu	Y		Y	Y
	Analog Input Connectors	3.5 mm Phoenix® connectors	Y		Y
	Analog Input Connectors	3.81 mm terminal blocks		Y
	Analog Input Connectors	Female Neutrik metal body DL series XLR connectors				Y
	Analog Input Dynamic Range	> 116 dB, A-weighted	Y	Y	Y	Y
	Analog Input Frequency Response	20 Hz – 20 kHz, ± 0.5 dB	Y		Y	Y
	Analog Input Impedance	8k Ohms balanced, 4k Ohms unbalanced	Y	Y	Y	Y
	Analog Input Latency	0.28 mS	Y	Y	Y
	Analog Input Maximum Level	+23 dBu	Y	Y	Y
	Analog Input Maximum Level	+23 dBu (1% distortion)				Y
	Analog Input THD + Noise	< -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain	Y	Y	Y
	Analog Input THD + Noise	< -100 dB, unweighted; 1 kHz @ +16 dBu with 0 dB gain				Y
	Analog Mic Pre-amp EIN	< -127dB with 150 ohm source impedance	Y	Y	Y
	Analog Mic Pre-amp EIN	< -125dB with 150 ohm source impedance				Y
	Analog Mic Pre-amp Gain	0, 11.8, 24, 44, or 54 dB switchable	Y	Y	Y
	Analog Mic Pre-amp Gain	0, 12, 24, 44, or 54 dB switchable				Y
	Analog Output Channel Separation	> 111 dB @ 1 kHz, +24 dBu			Y		Y
	Analog Output Channel Separation	> 110 dB @ 1 kHz, +24 dBu				Y
	Analog Output Connectors	3.5 mm Phoenix® connectors			Y		Y
	Analog Output Connectors	Male Neutrik metal body DL series XLR connectors				Y
	Analog Output Dynamic Range	> 118 dB, A-weighted			Y		Y	Y
	Analog Output Dynamic Range	> 116 dB, A-weighted				Y
	Analog Output Frequency Response	20 Hz – 20 kHz, ± 0.5 dB			Y	Y
	Analog Output Impedance	300 Ohms balanced, 150 Ohms unbalanced			Y	Y	Y	Y
	Analog Output Latency	0.60 mS			Y		Y	Y
	Analog Output Level Maximum	+24 dBu (+22.8 dBu into a 2k Ohm minimum load)			Y	Y	Y	Y
	Analog Output THD + Noise	< -105 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain			Y		Y	Y
	Analog Output THD + Noise	< -94 dB, unweighted; 1 kHz @ +20 dBu with 0 dB gain				Y
	CMRR	> 76 dB @ 1 kHz, unity gain	Y	Y	Y	Y
	Connector	3.81 mm terminal blocks						Y
	DAC Latency	0.60 mS				Y
	Nominal Analog Input Level	+4 dBu with 20 dB of headroom	Y	Y	Y
	Nominal Analog Input Level	+4 dBu with 20 dB of headroom (digital)				Y
	Nominal Analog Output Level	+4 dBu with 20 dB of headroom			Y	Y	Y	Y
	Number of Analog Inputs	Four (4) switchable balanced mic or line level	Y		Y	Y	Y
	Number of Analog Inputs	Twelve (12) switchable balanced mic or line level		Y				Y
	Number of Analog Outputs	Four (4) balanced line level			Y	Y
	Phantom Power	+48 VDC @ 10 mA maximum (per input)	Y	Y	Y	Y
