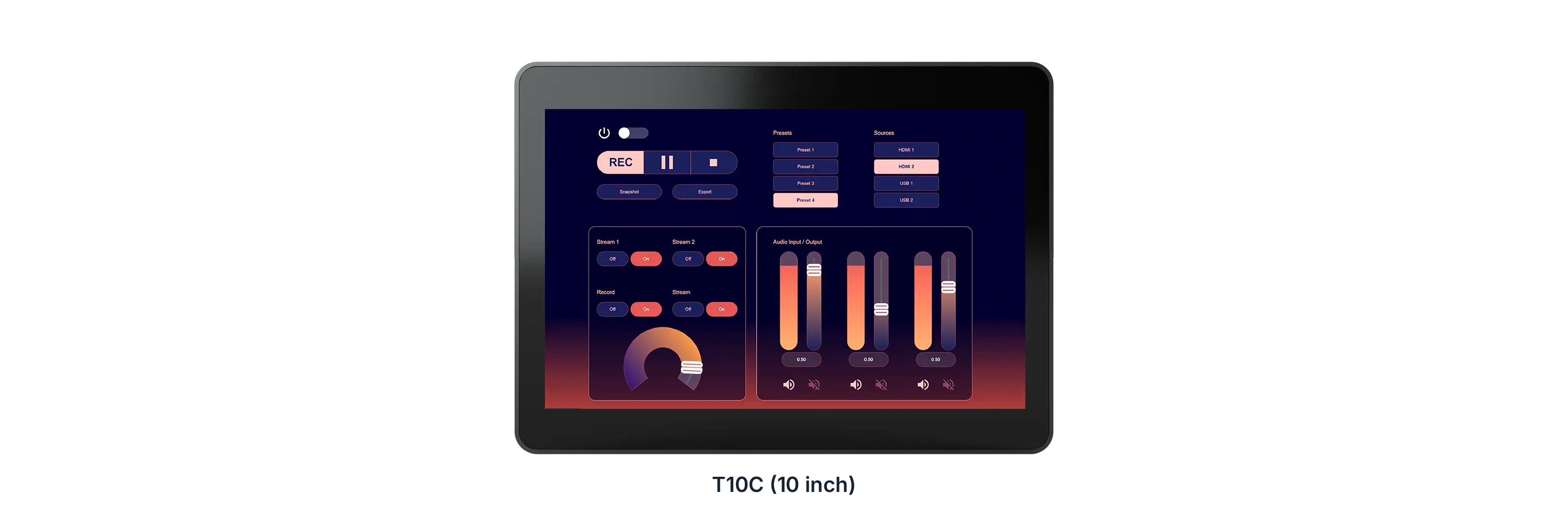

T10C Smart Touchscreens
T10C provides signal processing, AVoIP channels, and customized system control for diverse AV environments.
T10C touchscreen can be located anywhere that is convenient for users to access their AV systems.
Manage an Entire Room From One Screen.
- 16 x 16 Dante channels
- Advanced signal processing
Control and Manage Any AV System—All From One Screen
Quickly design, create, test, and simulate a variety of control screens offline using the extensive suite of tools in DesignOps Software with no extra hardware or licensing required.
Design Control Screens with any language and font, custom controls, backgrounds, logos and more using easy-to-use buttons, sliders, and navigation to suit specific user requirements.
Provide Dante audio channels, audio signal processing, and control of devices to diverse spaces all in one unit.
Keep installation simple with single cable connectivity utilize power over Ethernet eliminating the need for external power supplies.
Key Features
- 16 × 16 Dante IO channels
- 96 kHz, 24-bit Open Architecture Signal Processing
- 1 x 1Gb Ethernet port
- Run multiple independent Signal Flow Spaces on a single system
- Extensive control options via Symetrix Cognio DesignOps
control screens, T10C Smart Touchscreen, and TCP/UDP
- Web server for third-party control and personal device integration
- Third-party control via an extensive driver library and custom Lua scripting
- External Control using JSON-RPC
- Meets modern security standards, including encrypted communications, secure boot, secure firmware updates, and hardware locking
- POE+ power
- Fits US and Euro double-gang wall and junction boxes
Manage with Software
Use Cognio DesignOps Software to set up, control, and maintain Smart Touchscreens throughout deployment and operation.
Control Screen Creation
Customizable, vector‑based control screens are built without writing code or relying on specialized design software. Design flexible interfaces and reusable visual themes that adapt to specific user and system requirements.
Training & Resources
This course teaches a modern, software-first approach to designing, configuring, and validating scalable AV systems in Cognio using code-free workflows, reusable templates, and offline testing tools.
Credits: 1 CTS RU | CTS, CTS-D, CTS-I, ANP
Access on-demand webinars and videos featuring best practices, how-to guides, and troubleshooting support for using Cognio effectively.
Your complete reference for designing, deploying, and managing AV systems with Cognio.
Performance and Processing
- Software-based system running on a standard processor
- Advanced, high-quality audio signal processing
I/O Capabilities
- 16 × 16 Dante IO
- 2 channels of AEC
Control and Monitoring
- An embedded web server provides third party and personal device browser-based control
- Extensive control options via Cognio Design Ops control screens, and TCP/UDP
- Third-party control via software modules
- Batch configuration of multiple units
Power and Mounting
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
Viewing
- 1920x1200, 850 nits, landscape or portrait orientation
| Feature | T10C |
| 10-inch 1920x1200 resolution | x |
| 850-nit brightness | x |
| Models | P/N |
| T10C |
| Specification | Detail | Models |
System Specifications
| Platform | ARM Multi-core CPU |
| Sampling Rate | 96 kHz | |
| Ethernet Control and Dante Input | 1x RJ45 1 Gbit/Sec | |
| Dante Channels | 16 x 16 | |
| AEC Channels | 2 @ 256 ms tail length | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| Audio Bridging | 8x8 | |
| Compatibility | Symetrix COGNIO platform- products, Design Ops software | |
| Display Aspect Ratio | 16:10 | |
| Display Brightness | 850 nits | |
| Display Colors | 16.7 M | |
| Display Contrast Ratio | 900:1 | |
| Display Multitouch | 10 fingers | |
| Display Orientation | Landscape (horizontal), or portrait (vertical) | |
| Display Resolution | 1920 x 1200 pixels | |
| Display Type | Capacitive touch full color TFT LCD | |
| Display Viewable Area | 8.54 in (216.8 mm) x 5.33 in, (135.5 mm), 10.1 in (256.54 mm) diagonal | |
| Display Viewing Angle | ±80° horizontal, ±80° vertical | |
| Ethernet Cable | Standard CAT5e or CAT6. Maximum device to device length: 100 m | |
| Power | Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max | |
Mechanical Specifications | Certifications and Compliance | EMC International & EMC US/CANADA; Emissions: CE, UKCA, EAC, FCC Part 15; RoHS |
| Dimensions | 9.70 in. (246.46 mm) x 7.07 in. (179.50 mm) x 2.33 in. (59.30 mm) | |
| Environmental | Ambient Operating Temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. | |
| Form Factor | Double-gang US or Euro wall mount | |
| Optional Accessories | Tabletop Stand | |
| Product Weight | 2.3 lb (1 kg) | |
| Product Weight with Mounting Bracket | 2.5 lb ( 1.1kg) | |
| Shipping Weight | 4 lb (1.8 kg) | |
| Space Required | Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
