Multi-Zone Paging Made Simple
Zone Mix 761 is a cost-effective DSP for paging and background music control providing paging into 6 zones from 3 microphone locations, plus emergency page, with automatic ducking and priority arbitration.
Put the Right Sound in the Right Place
- 4 mic/line inputs
- 8 stereo audio media inputs
- 6 line outputs
- 4×4 GPIO
Background audio and paging processor for analog environments.

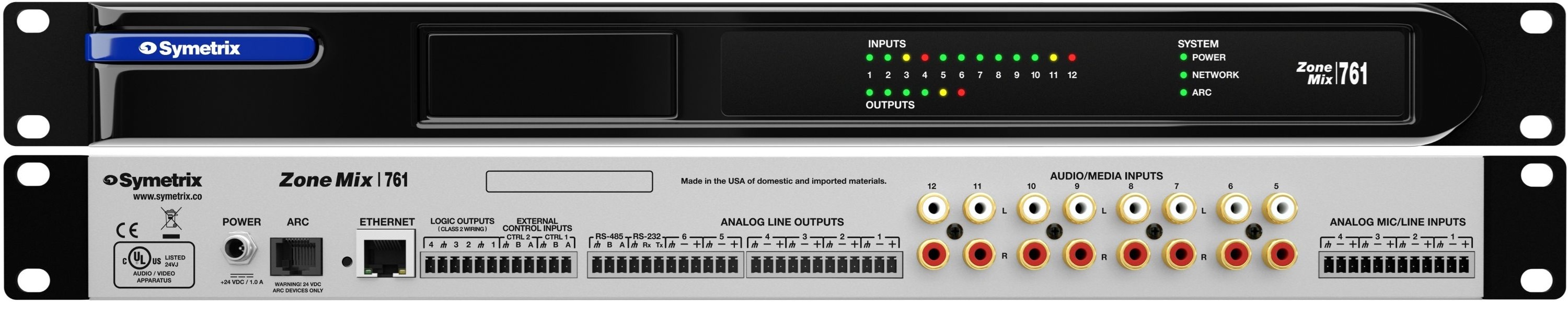

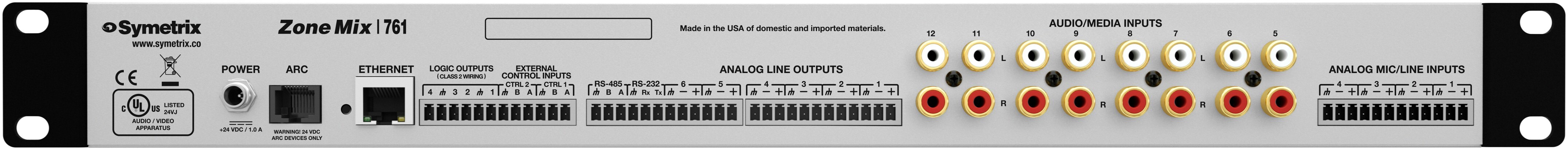

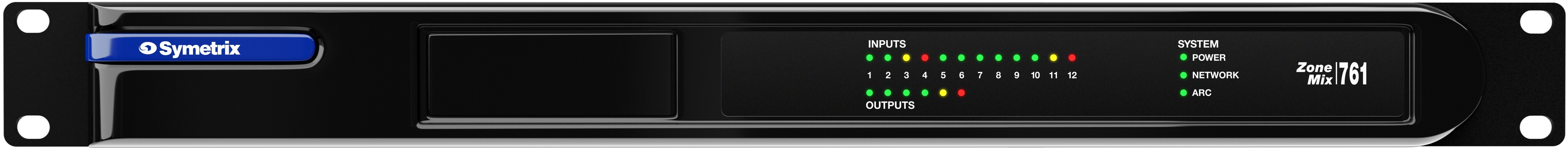

Zone Mix 761
Simple Installation
Rapidly deploy systems with near zero programming time to slash installation costs.
Purpose Built
Plenty of inputs and outputs, the right kind of connectors, and a pre-designed interface make for an easy fit.
Extensive Resources

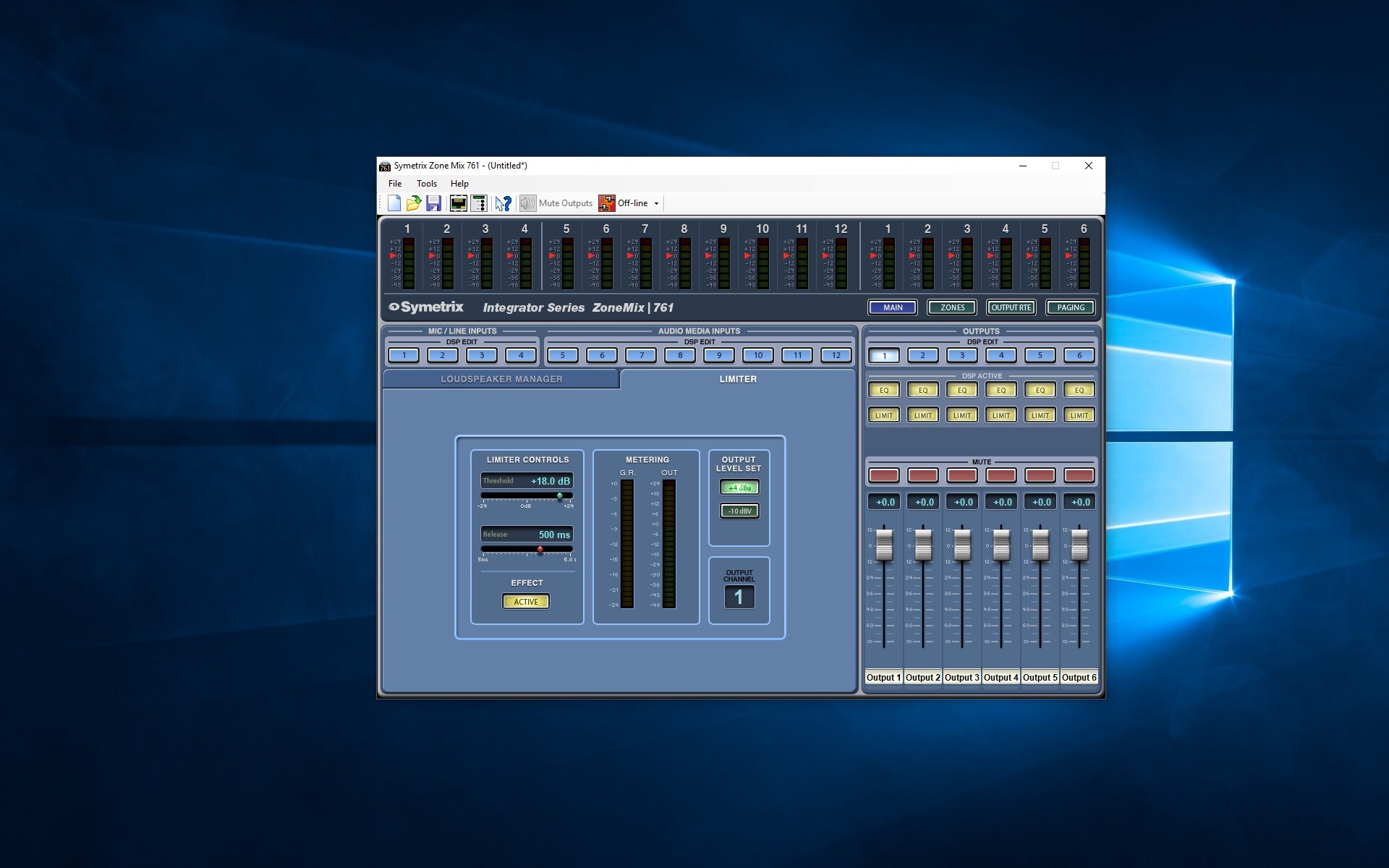

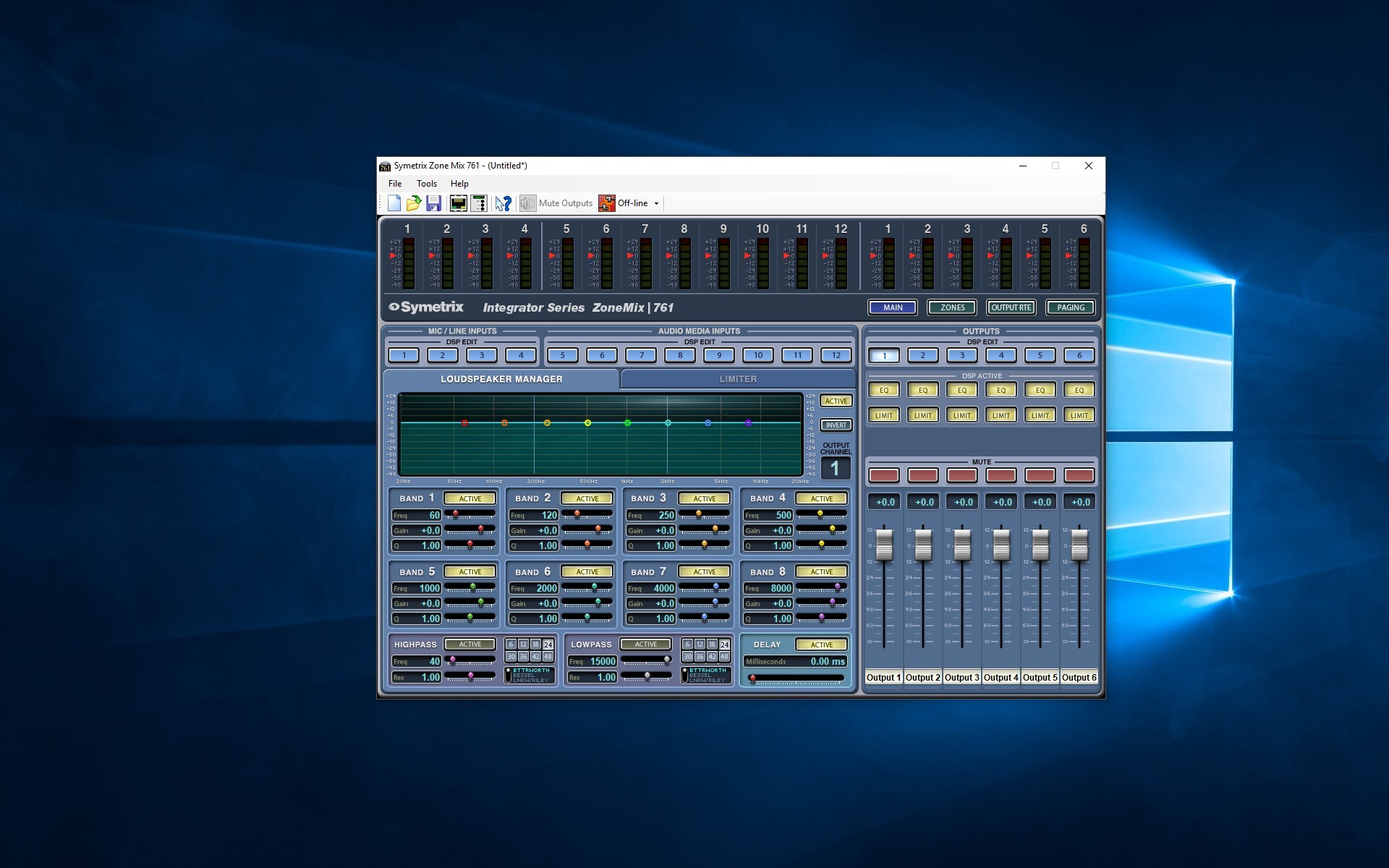

Take advantage of eight input and six output channels featuring a full complement of processing including: dynamics, feedback elimination, ambient noise sensing, EQ, and loudspeaker management to deliver a premium audio experience.

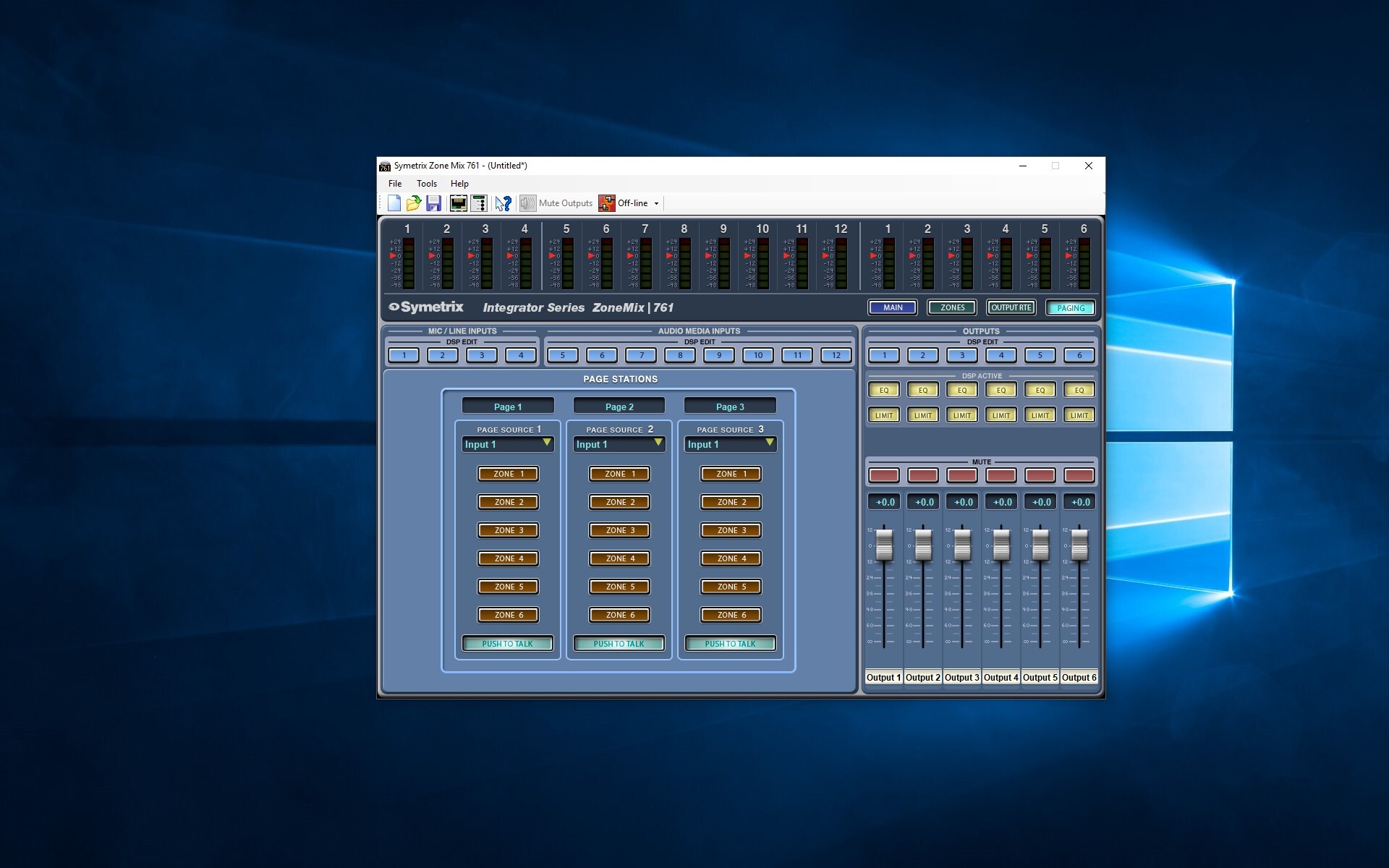

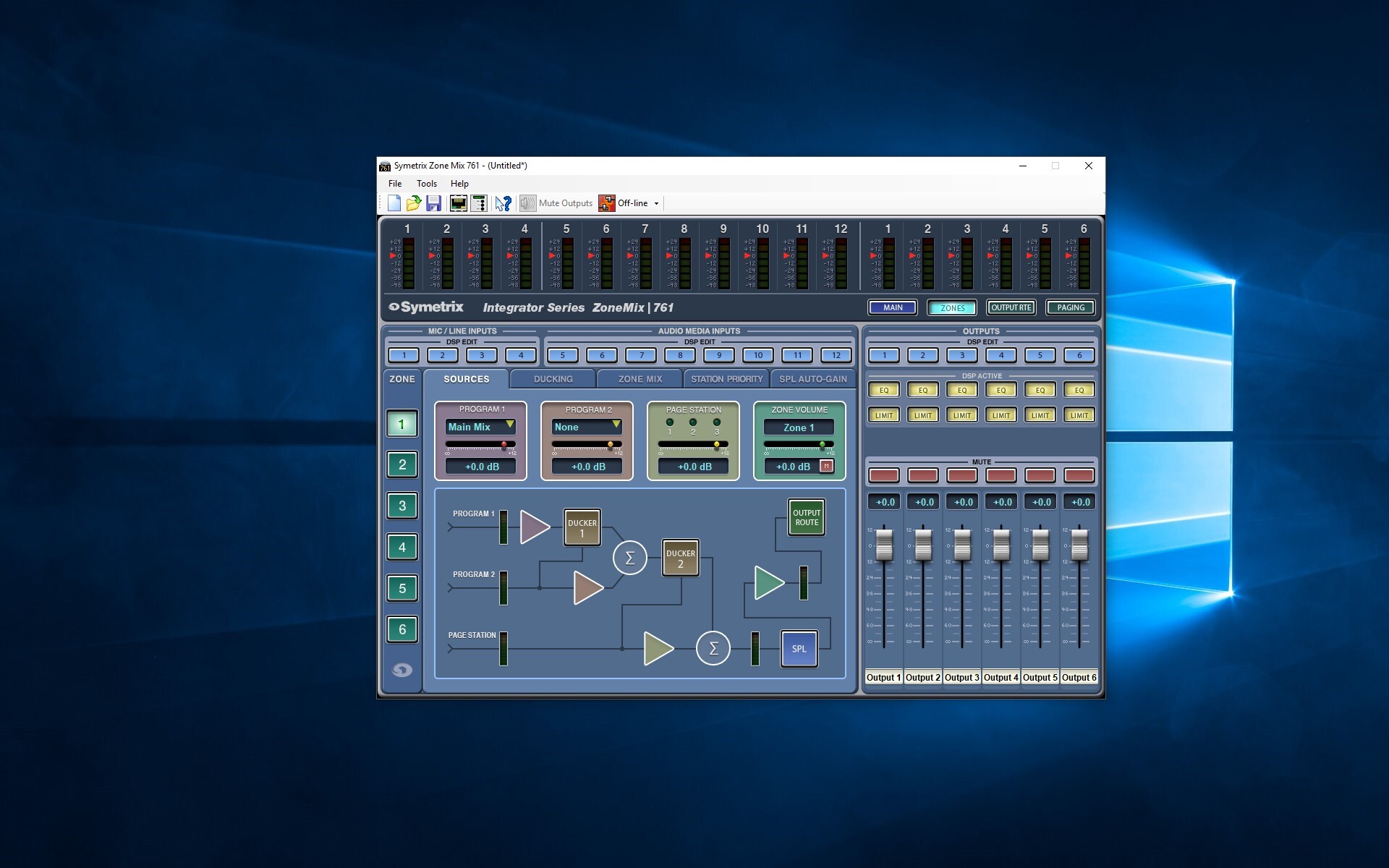

Optimized Software

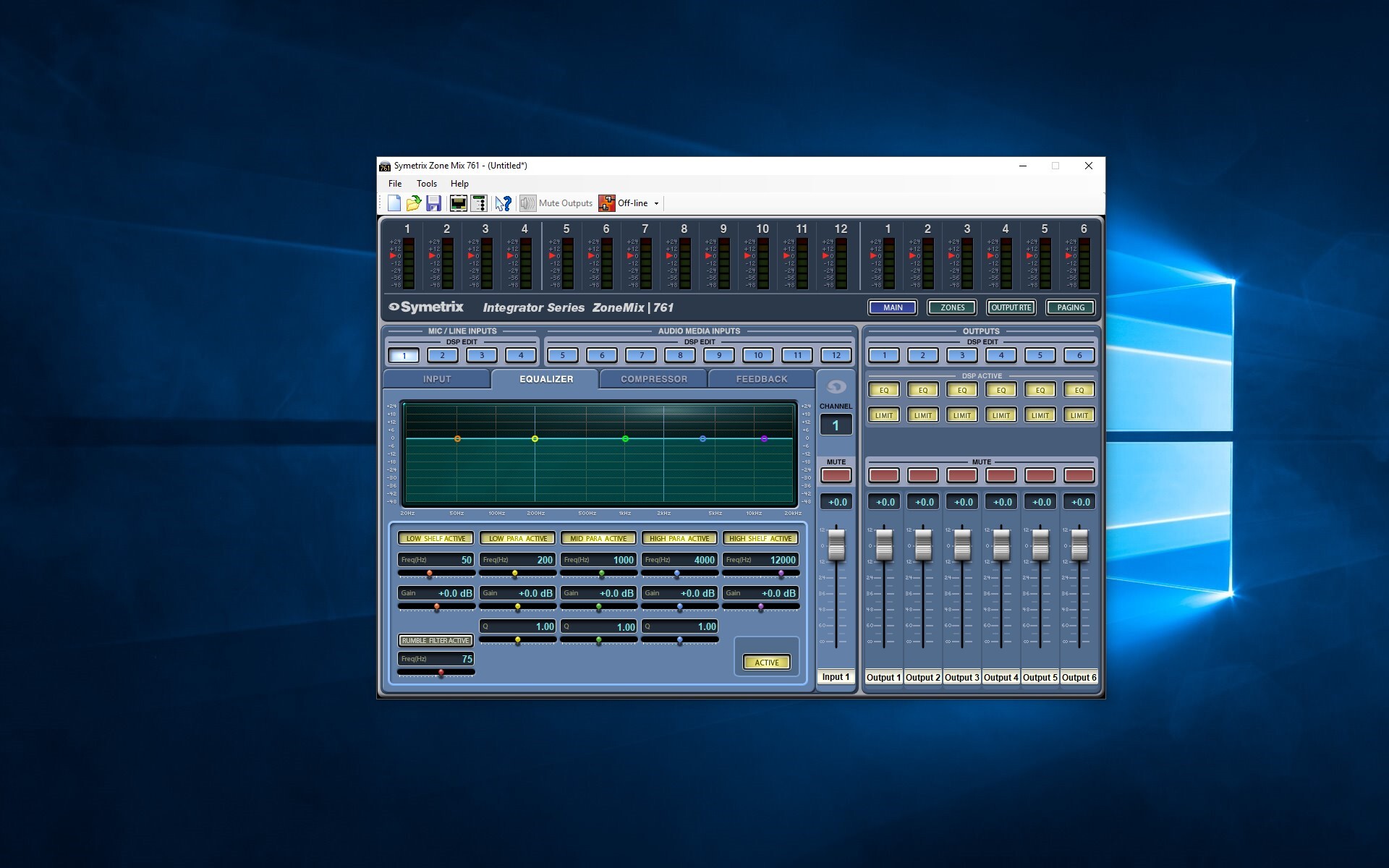

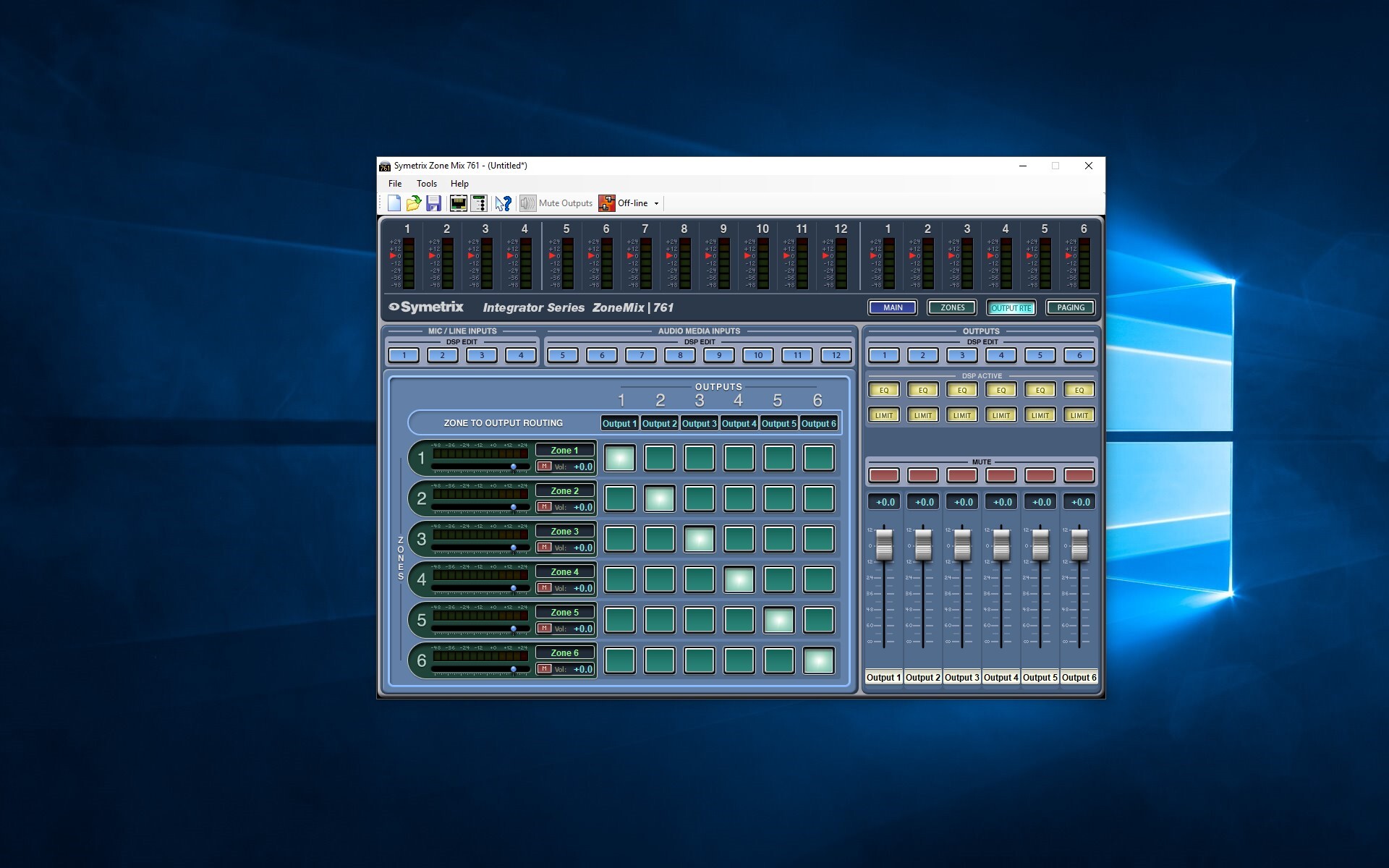

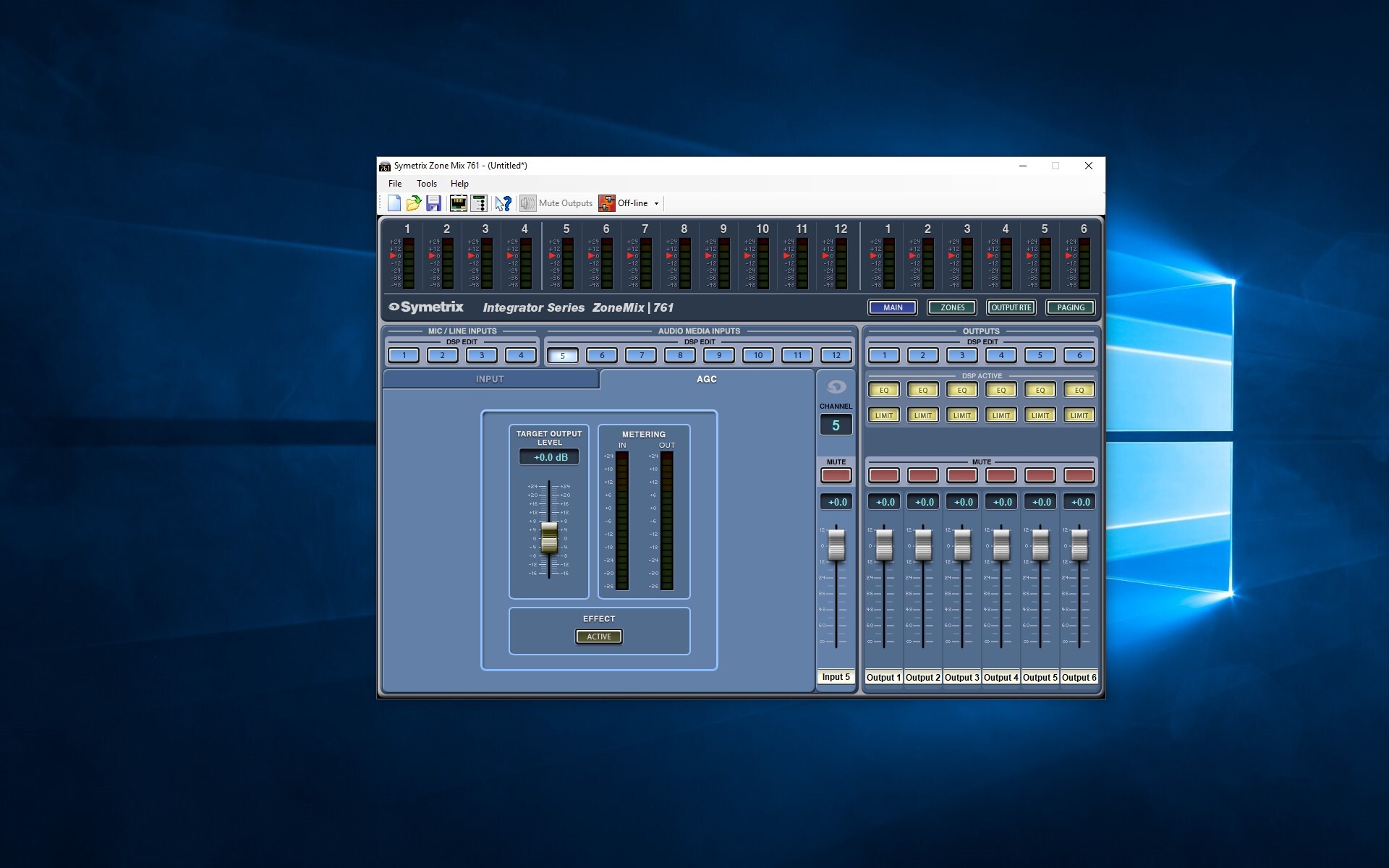

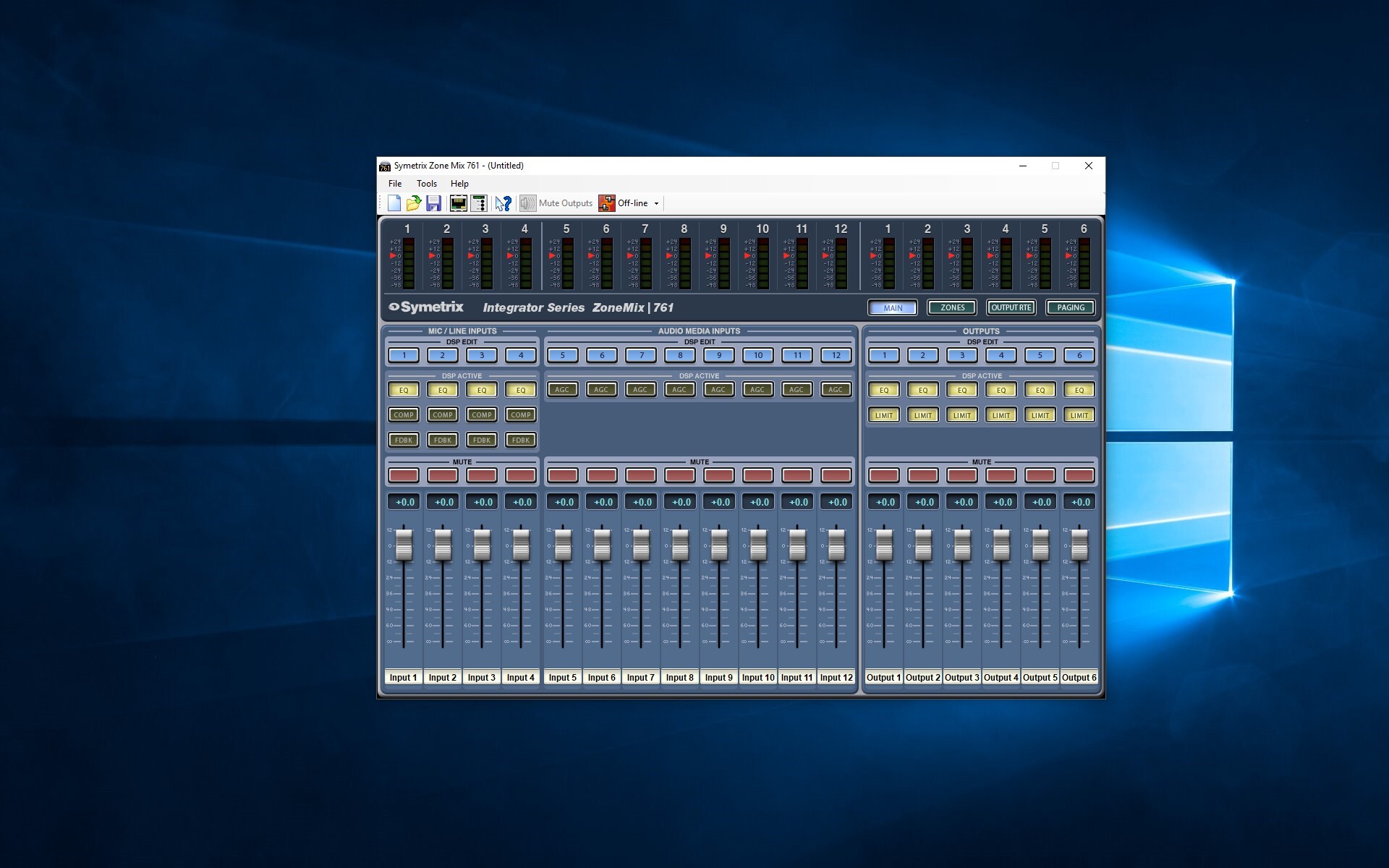

Save set up time with a connection wizard a low learning curve along with fast and easy network linking to the system.
Key Features
- Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control
- Controllable with Symetrix ARC wall panel controllers, ARC-WEB interfaces, 3rd party touch-screens via RS-232 or UDP/IP
- 4 mic/line inputs for paging from up to 3 locations plus emergency page
- 8 stereo audio media inputs
- 6 line outputs
- High Performance Symetrix preamps
- 4×4 GPIO
- RS-232 Control Terminal Blocks
- RS-485 Control Terminal Blocks
- Ethernet port for programming

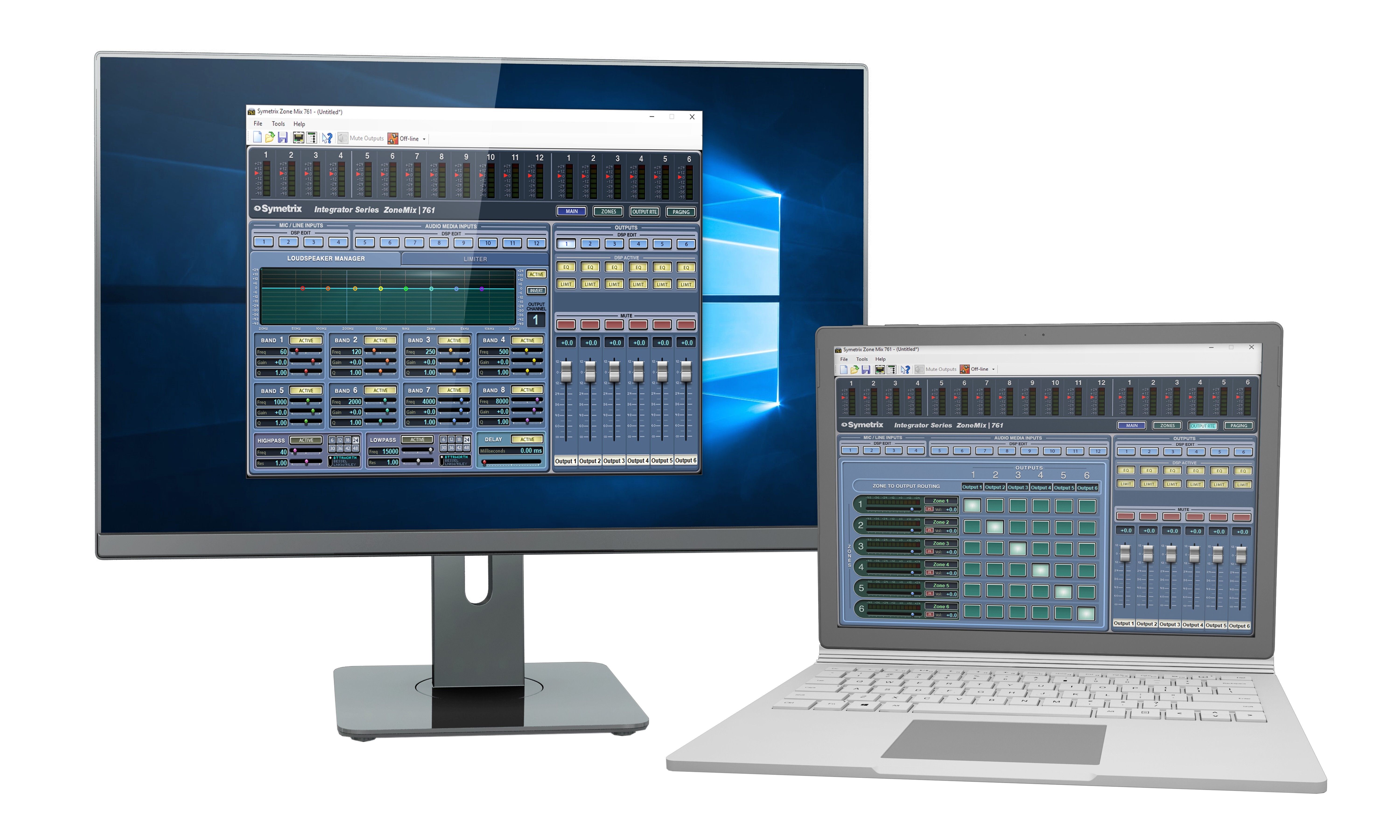

Download the Software to Configure Zone Mix 761
Performance and Processing
- Fixed Architecture DSP featuring a full complement of world-class processing
- High Performance Symetrix preamps

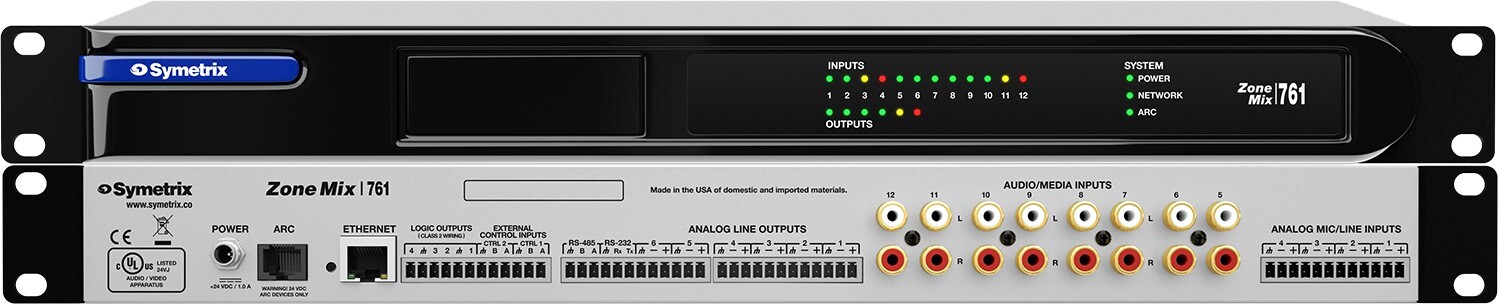

I/O Capabilities
- 4 mic/line inputs for paging from up to 3 locations, plus emergency page
- 8 stereo audio/media inputs
- 6 line outputs
- 4×4 GPIO
- RS232 Control Terminal Blocks
- RS485 Control Terminal Blocks
- ARC Remote Port
Control and Monitoring
- Ethernet port for programming with Zone Mix 761 software for Windows
- Embedded web server provides remote metering, diagnostics, and configurable ARC-WEB browser control
- Flexible user control via ARC remotes, ARC-WEB, TCP/UDP
LED Display and Power
- Dedicated front panel LEDs display audio levels and system status
- External Power Supply
| Models | P/N |
|---|---|
| ZoneMix 761 | 80-0070-B |
Specification | Detail |
| System Specifications | Dynamic Range |
| Frequency Response | |
| Interchannel Crosstalk | |
| Latency | |
| Sampling Rate | |
| THD + Noise | |
| Mechanical Specifications | Certifications and Compliance |
| Electrical | |
| Shipping Weight | |
| Space Required | |
| Ventilation | |
| Inputs and Outputs | Analog Input Connectors |
| Analog Input Impedance | |
| Analog Input Maximum Level | |
| Analog Mic Pre-amp EIN | |
| Analog Output Connectors | |
| Analog Output Impedance | |
| Analog Output Level Maximum | |
| Analog Phantom Power (per input) | |
| CMRR | |
| Mic Pre-amp Gain | |
| Nominal Analog Output Level | |
| Nominal Analog Output Level | |
| Number of Analog Outputs | |
| Number of Inputs |
