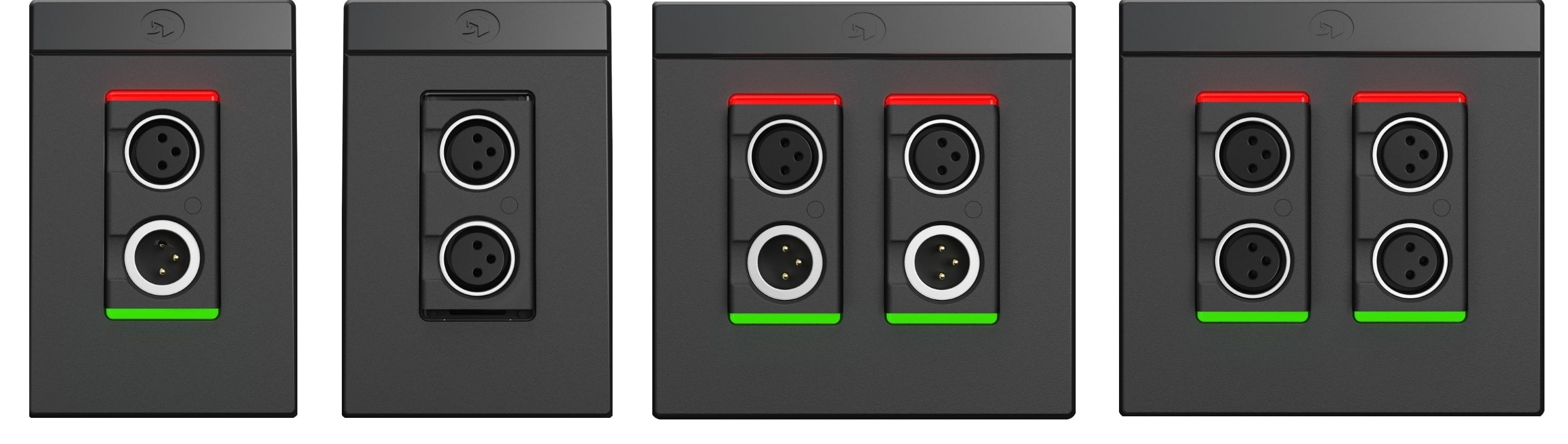

High-Performance Audio, Industrial Strength
xIO XLR-Series is the acknowledged standard for performance IO with pristine audio, industrial-strength materials, exceptional design, AV control options, and a complete line of models that reliably deliver sophisticated results.
Best-in-class clarity, intelligibility, and accuracy
- Studio-grade AD/DA
- PoE
- Die-cast zinc construction
- Dante enabled
Optimized for AV System Builds
xIO XLR
Performance Audio
Hear best-in-class clarity, intelligibility, and accuracy with studio-grade AD/DA and transparent microphone preamps.
Custom Configurations
Program front-panel RGB LED’s and control buttons to reflect system parameters to users and offer on-site diagnostics and management of systems.
PoE
Keep installation simple with single cable connectivity eliminating the need for external power supplies.
Network Audio
Send and receive audio with Dante integration up to 96 Khz.

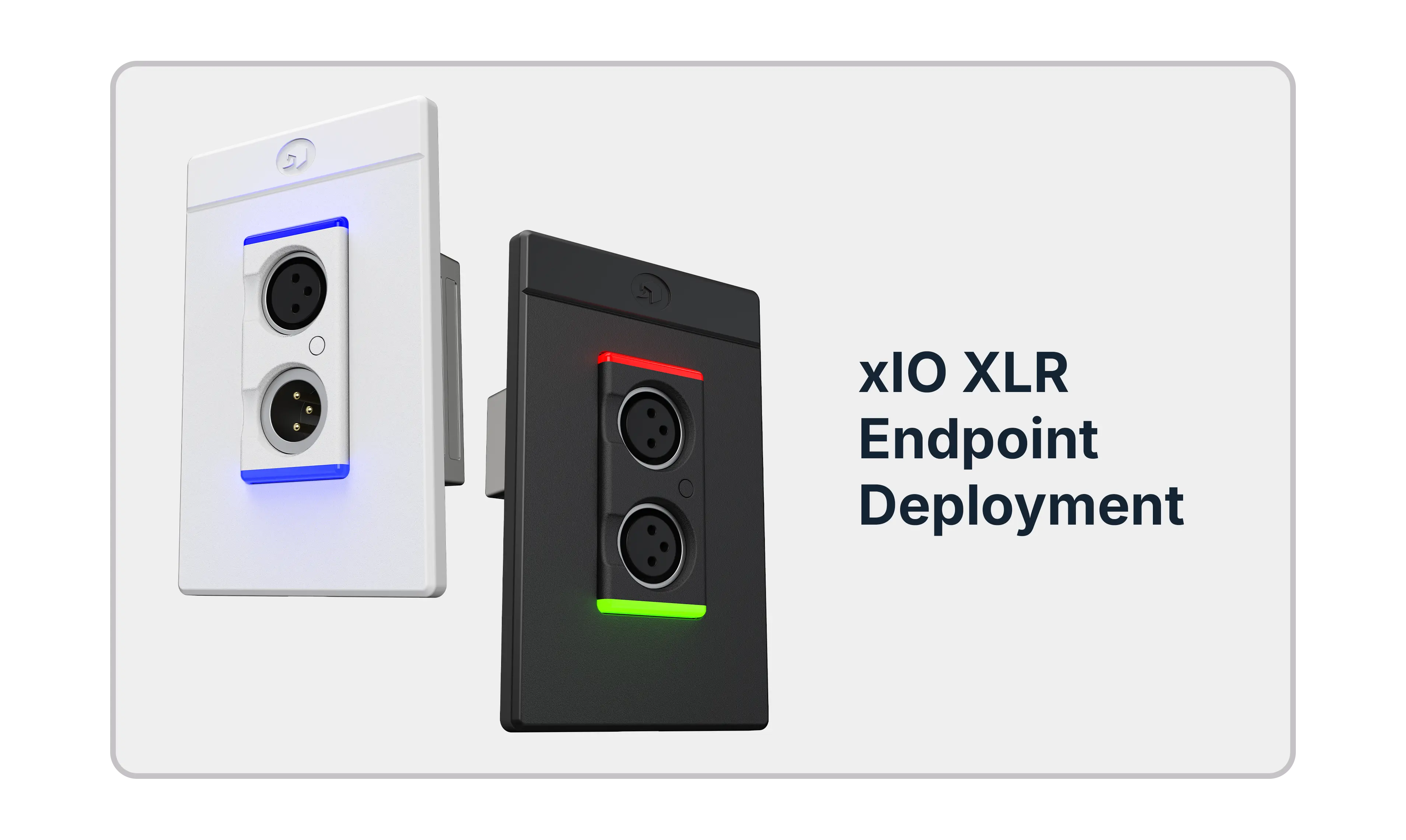

Ready to Deploy xIO XLR Endpoints in Your Next Project?
Start with Our Training Course
https://symetrix.talentlms.com/plus/catalog/courses/220
Key Features
- Studio-grade AD/DA
- Transparent mic preamps
- Dante-enabled up to 96 Khz
- PoE
- Customizable front-panel RGB LEDs
- Programmable control buttons
- Die-cast zinc construction
- Premium light and dark finishes
- Decora compatible
- Proprietary thumb notch ease connector attachment and removal
- Integrated stress-release attachment point
- Decora-compatible faceplates that snap into place without visible screws.
Download the Software to Configure xIO XLR
Performance and Processing
- Studio-grade AD/DA
- Transparent mic preamps up to 51 dB of gain in 3 dB increments
- Dante-enabled with sampling rates up to 96K
- PoE IEEE 802.3af; 15.4W Max
Control and Customization
- Programmable with Symetrix Composer software
- Customizable front-panel RGB LEDs
- Programmable control buttons
Design and Build Quality
- Decora compatible
- Premium light and dark finishes
- Die-cast zinc construction with exacting tolerances

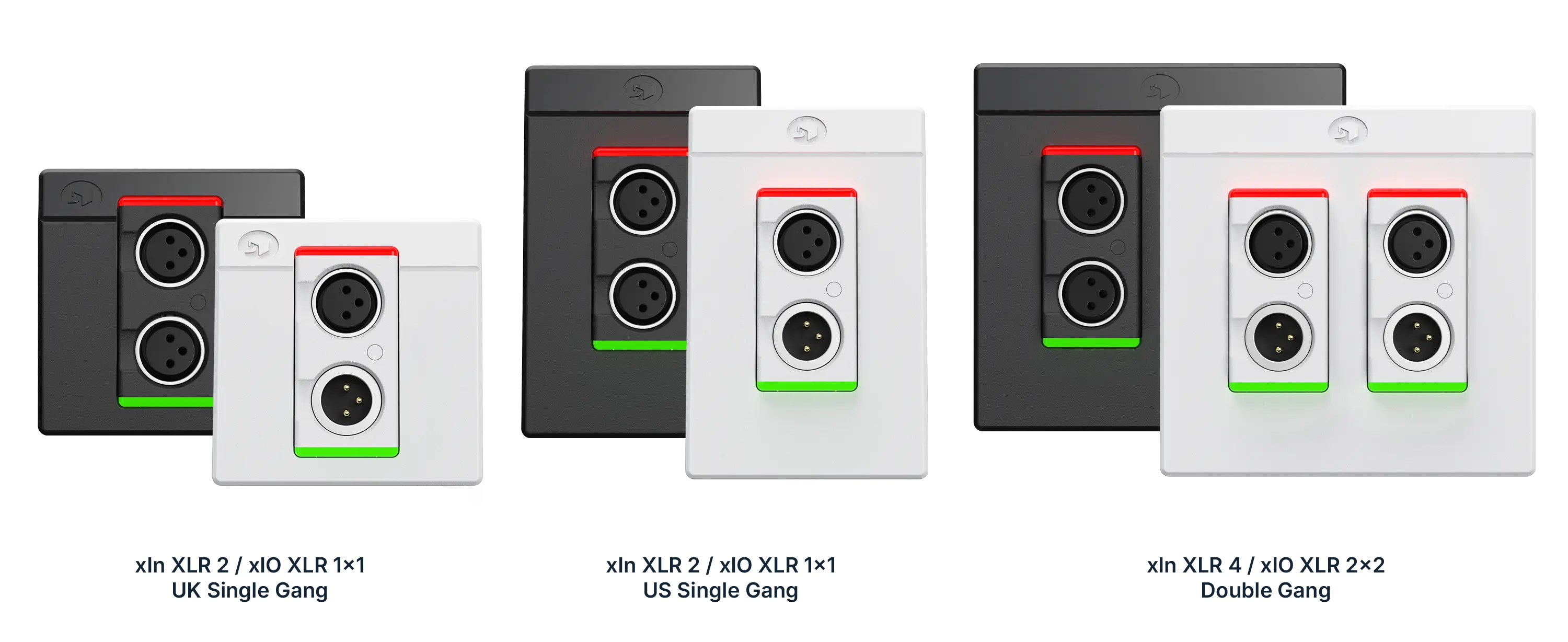

| Feature | xIO XLR 1x1 | xIn XLR 2 | xIO XLR 2x2 | xIn XLR 4 |
|---|---|---|---|---|
| 1 mic/line inputs | x | |||
| 2 mic/line inputs | x | x | ||
| 4 mic/line inputs | ||||
| 1 line output | x | |||
| 2 line outputs | x | |||
| 1 button | x | x | ||
| 2 buttons | x | x | ||
| 2 RGB LEDs | x | x | ||
| 4 RGB LEDs | x | x | ||
| Single gang size | x | x | ||
| Double gang size | x | x |
| Models | P/N |
|---|---|
| xIO XLR 1×1, Black, US | 80-0222 |
| xIO XLR 1×1, Black, Euro | 80-0226 |
| xIO XLR 1×1, White, US | 80-0210 |
| xIO XLR 1×1, White, Euro | 80-0214 |
| xIn XLR 2, Black, US | 80-0224 |
| xIn XLR 2, Black, Euro | 80-0227 |
Specification | Detail | xIN-XLR-2-Euro | xIN-XLR-2-US | xIN-XLR-4 | xIO-XLR-1x1-Euro | xIO-XLR-1x1-US | xIO-XLR-2x2 |
| System Specifications | Operating Temperature | Ambient operating temperature 0 C-40 C (32 F-104 F); maximum recommended ambient operating temperature 30 C (86 F) | Y | Y | Y | Y | Y |
| Power | PoE IEEE 802.3af; 15.4W Max | Y | Y | Y | Y | Y | |
| Sampling Rate | 48 kHz, 96 kHz (configure in Dante Controller) | Y | Y | Y | Y | Y | |
| Mechanical Specifications | Product Weight | 0.7 lbs | Y | Y | Y | ||
| Shipping Weight | 1.2 lbs | Y | Y | ||||
| Product Weight | 0.75 lbs | Y | |||||
| Product Weight | 1.25 lbs | Y | |||||
| Shipping Weight | 1.25 lbs | Y | Y | ||||
| Shipping Weight | 1.75 lbs | Y | |||||
| Inputs and Outputs | Analog Input Dynamic Range | > 110 dB (A-weighted @ 0 dB gain) | Y | Y | Y | Y | Y |
| Analog Input Impedance | 2k Ohms balanced | Y | Y | Y | Y | Y | |
| Analog Input Latency | 0.77 mS (Analog in to Dante Send) | Y | Y | Y | Y | Y | |
| Analog Input Maximum Level | +23.5 dBu (1% THD @ 1 kHz @ 0 dB gain) | Y | Y | Y | Y | Y | |
| Analog Input THD + Noise | 0.003% (+15 dBu @ 1 kHz @ 0 dB gain) | Y | Y | Y | Y | Y | |
| Input CMRR | >50 dB (1 kHz @ 0 dB gain) | Y | Y | Y | Y | Y | |
| Input Crosstalk | -107 dB (+4 dBu @ 1 kHz @ 0 dB gain) | Y | Y | Y | Y | Y | |
| Input EIN | <-127 dBu (150 Ohm source impedance, 22.4 kHz BW) | Y | Y | Y | Y | Y | |
| Input Frequency Response | +/- 0.2 dB; 20 Hz-20 kHz (+4 dBu @ 0 dB gain) | Y | Y | Y | Y | Y | |
| Phantom Power | +48 VDC @ 10 mA maximum | Y | Y | Y | Y | Y | |
| Analog Output Dynamic Range | > 110 dB (A-weighted @ 0 dB gain) | Y | Y | ||||
| Analog Output Impedance | 300 Ohms balanced | Y | Y | ||||
| Analog Output Latency | 0.60 mS (Dante Send to Analog Out) | Y | Y | ||||
| Analog Output Level Maximum | +23.5 dBu (1% THD+N @ 1 kHz) | Y | Y | ||||
| Analog Output THD + Noise | 0.005% (-4 dBFS @ 1 kHz) | Y | Y | ||||
| Output Frequency Response | +-0.2 dB; 20 Hz-20 kHz (+4 dBu @ 0 dB gain) | Y | Y |
