TC Series Smart Touchscreens
TC-Series smart touchscreens provide signal processing, AVoIP channels, and customized system control for diverse AV environments.

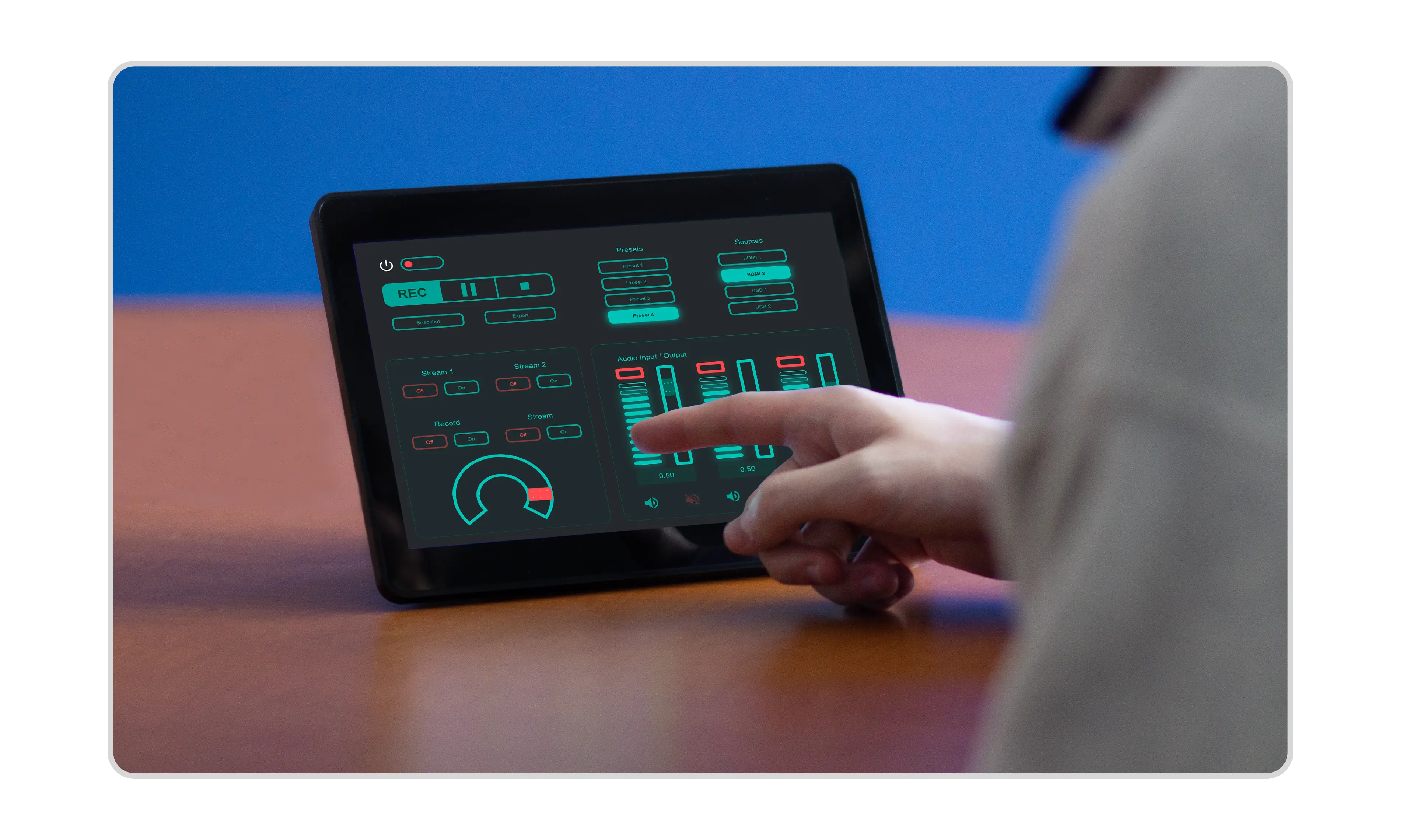

The TC- Series touchscreens can be located anywhere that is convenient for users to access their AV systems.
Manage an Entire Room From One Screen.
- 3 screen sizes to best match requirements
- 16 x 16 Dante channels
- 2 AEC channels
- Advanced signal processing
Control and Manage Any AV System- All From One Screen
Quickly design, create, test, and simulate a variety of control screens off-line using the extensive suite of tools in DesignOps software with no extra hardware or licensing required.
Design Control Screens with any language and font, custom controls, backgrounds, logos and more using easy-to-use buttons, sliders, and navigation to suit specific user requirements.
Provide Dante audio channels, audio signal processing, and control of devices to diverse spaces all in one unit.
Keep installation simple with single cable connectivity utilize power over Ethernet eliminating the need for external power supplies.
Key Features
- 16 × 16 Dante I/O channels
- 2 channels of acoustic echo cancellation (AEC)
- Integrated webserver for 3rd Party and personal device control
- 96 kHz / 24-bit Signal Processing

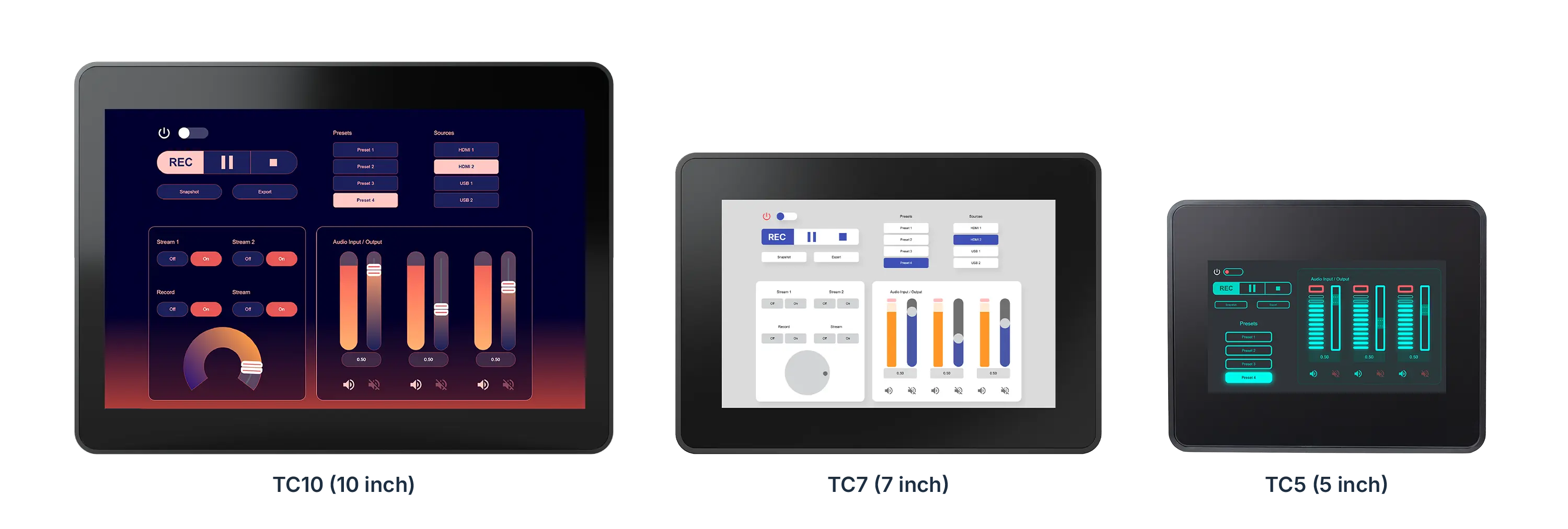

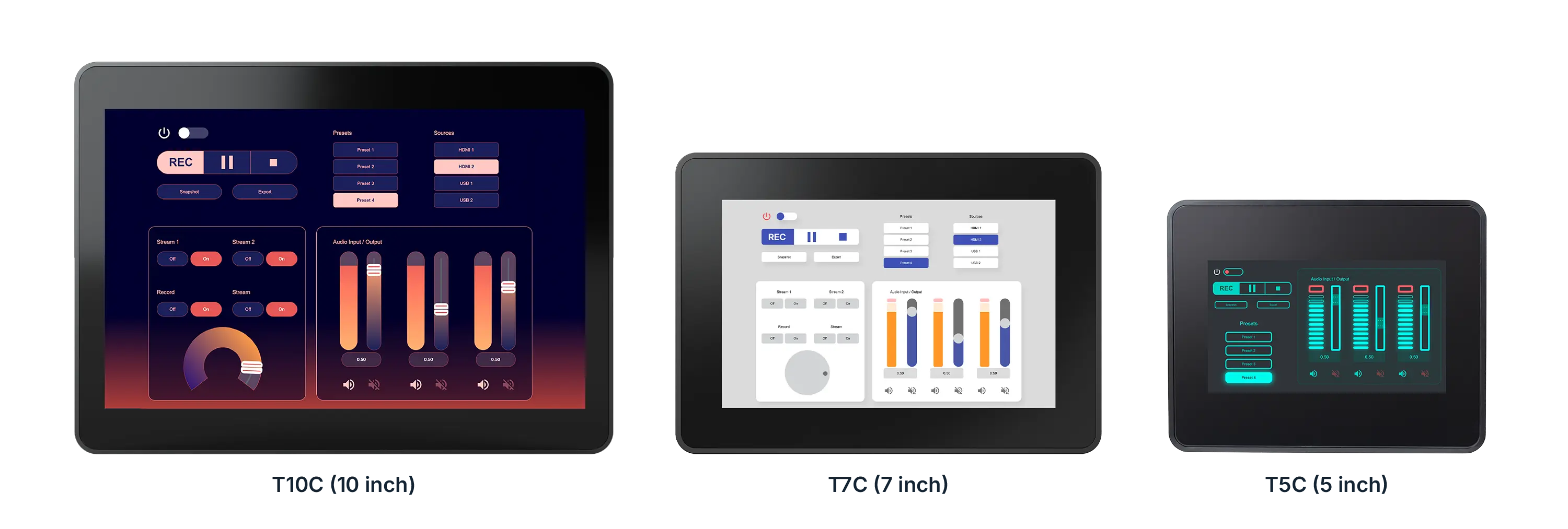

- 5, 7, 10 inch high-resolution screens
- Best-in-class brightness
- Extensive control options via COGNIO DesignOps control screens, and TCP/UDP standard
- Lua scripting support standard
- Third-party control via software modules
Expand Your Expertise
Introduction to Cognio™ Platform
Course
Ready to learn how TC Series Smart Touchscreens integrate into the Cognio platform?
Intro to Cognio™ Platform
Webinar
Unlock the full potential of your AV systems with the Cognio Platform. In this introductory session, you’ll get a guided tour of the platform’s capabilities and its architecture. Whether you're new to Cognio or looking to understand how it fits into your workflow, this webinar will give you a clear overview of what Cognio can do for you.
Download the Software to Manage TC Series
DesignOps software
Performance and Processing
- Software-based system running on a standard processor
- Advanced, high-quality audio signal processing
I/O Capabilities
- 16 × 16 Dante IO
- 2 channels of AEC
Control and Monitoring
- An embedded web server provides third party and personal device browser-based control
- Extensive control options via Cognio Design Ops control screens, and TCP/UDP
- Third-party control via software modules
- Batch configuration of multiple units
Power and Mounting
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
Viewing
- TC-5 1280x720, 500 nits
- TC-7 1280x800, 500 nits
- TC-10 1920x1200, 850 nits, landscape or portrait orientation
| Feature | TC5 | TC7 | TC10 |
| 5-inch 1280x720 resolution | x | ||
| 7-inch 1280x800 resolution | x | ||
| 10-inch 1920x1200 resolution | x | ||
| 500-nit brightness | x | x | |
| 850-nit brightness | x |
| Models | P/N |
| TC5 | |
| TC7 | |
| TC10 |
| Specification | Detail | Models |
System Specifications
| Platform | ARM Multi-core CPU |
| Sampling Rate | 96/48 kHz | |
| Ethernet Control and Dante Input | 1x RJ45 1 Gbit/Sec | |
| Dante Channels | 16 x 16 | |
| AEC Channels | 2 @ 256 ms tail length | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| Audio Bridging | 8x8 | |
| Compatibility | Symetrix COGNIO platform- products, Design Ops software | |
| Display Aspect Ratio | 16:9: TC-5 16:10: TC-7. TC-10 | |
| Display Brightness | 500 nits: TC-5. TC-7, 850 nits: TC-10 | |
| Display Colors | 16.7 M | |
| Display Contrast Ratio | 900:1 | |
| Display Multitouch | 5 fingers: TC-5, TC-7, 10 fingers: TC-10 | |
| Display Orientation | Landscape: TC-5, TC-7, Landscape (horizontal), or portrait (vertical): TC-10 | |
| Display Resolution | 1280 × 720 pixels: TC-5 1280 x 800 pixels: TC-7 1920 x 1200 pixels: TC-10 | |
| Display Type | Capacitive touch full color TFT LCD | |
| Display Viewable Area | 4.2 in (107.7mm) x 2.5 in (64.5 mm), 4.9 in (126.6 mm) diagonal: TC-5 5.9 in (150.8mm) x 3.7 in (94.2 mm), 7 in (177.8 mm) diagonal: TC-7 8.54 in (216.8 mm) x 5.33 in, (135.5 mm), 10.1 in (256.54 mm) diagonal: TC-10 | |
| Display Viewing Angle | ± 85° horizontal, ± 85° vertical TC-5, TC-7 ±80° horizontal, ±80° vertical TC-10 | |
| Ethernet Cable | Standard CAT5e or CAT6. Maximum device to device length: 100 m | |
| Power | Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max | |
Mechanical Specifications | Certifications and Compliance | EMC International & EMC US/CANADA; Emissions: CE, UKCA, EAC, FCC Part 15; RoHS |
| Dimensions | 5.8 in (148.3 mm) x 4.7 in (119.9 mm) x 1.8 in (45.5 mm): TC-5 7.6 in (193.7 mm) x 5.4 in (137.1 mm) x 1.8 in (45.5 mm): TC-7 9.70 in. (246.46 mm) x 7.07 in. (179.50 mm) x 2.33 in. (59.30 mm): TC-10 | |
| Environmental | Ambient Operating Temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. | |
| Form Factor | Double-gang US or Euro wall mount | |
| Optional Accessories | Tabletop Stand | |
| Product Weight | 0.95 lb (0.43 kg): TC-5 1.25 lb (0.56 kg): TC-7 2.3 lb (1 kg): TC-10 | |
| Product Weight with Mounting Bracket | 1.15 lb (0.52kg): TC-5 1.35 lb (0.61kg): TC-7 2.5 lb ( 1.1kg): TC-10 | |
| Shipping Weight | 1.25 lb (0.56 kg): TC-5 2 lb (0.9 kg): TC-7 4 lb (1.8 kg): TC-10 | |
| Space Required | Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
