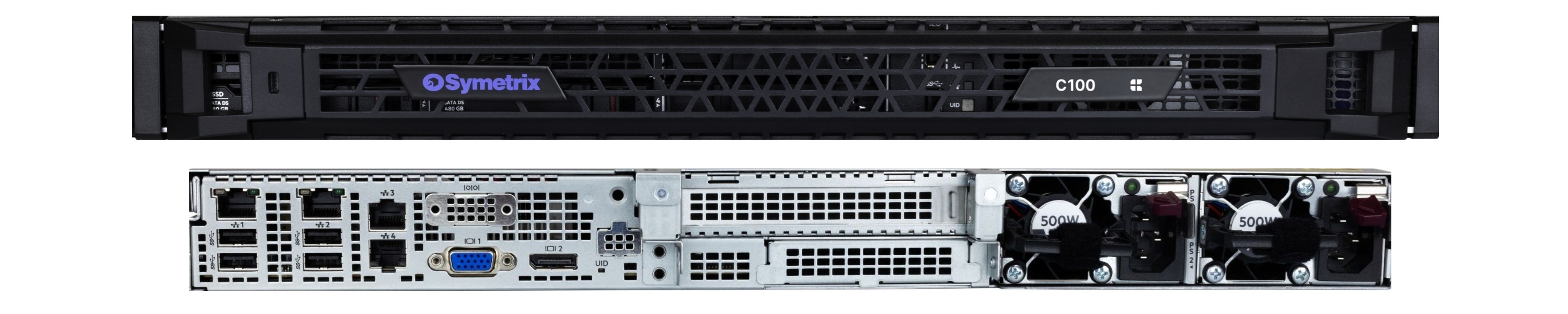

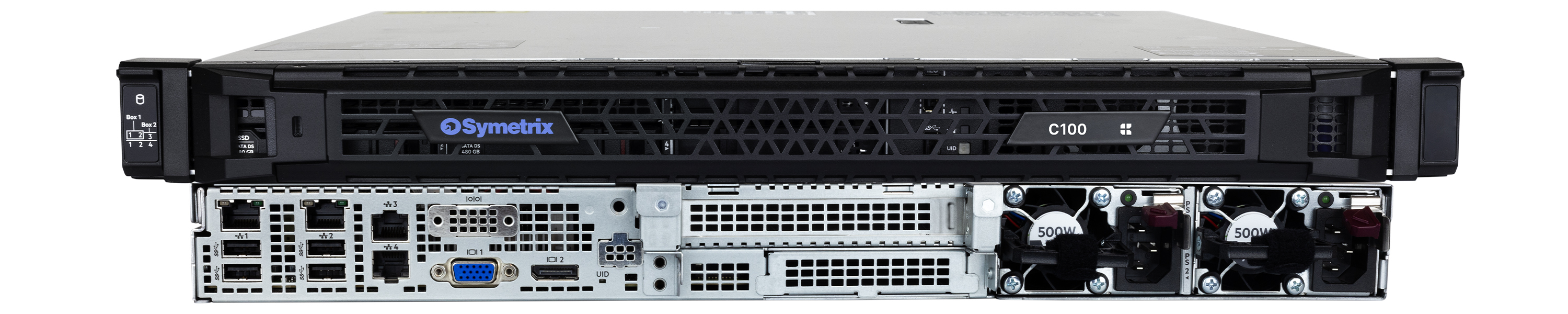

C100 Smart Processor Server
Reduced complexity and cost for applications that require management and control with large counts of AVoIP audio channels.
C100 offers high-performance, enterprise-level, large-scale centralized and distributed processing to manage and control high counts of networked devices.
Built for large environments with high-capacity signal processing, control, and AVoIP audio channels.
- Up to 384 x 384 AVoIP channels
- Up to 96 AEC channels
- Up to 128 media playback channels
- Channel count expansion through software licenses
C100 makes installation and programming easy for large-scale AVC systems.
Achieve unparalleled flexibility and scalability for audio control and network integration from an expansive amount of Dante channels for use even in the most demanding and complex environments.
Integrate into larger conference rooms or deploy across multiple conference rooms with an extensive range of advanced audio processing and a high channel count of Acoustic Echo Cancellation.
Record and playback prerecorded messages on multiple channels for announcements and alerts crucial to public facilities.
Upgrade firmware in the field to increase various channel counts to make the server scalable and more cost effective.
Key Features
- 256 × 256 Dante I/O channels, option to add 128 × 128 Dante I/O channels for a total of 384 x 384
- 64 channels of acoustic echo cancellation (AEC), option to add 32 AEC channels for a total of 96
- 32 media playback channels, option to add 32 or 96 media playback channels for a total of 128
- 8 media record channels
- Integrated webserver for 3rd Party and personal device control
- 96 kHz / 24-bit signal processing
- Extensive control options via COGNIO DesignOps control screens, TC-Series touchscreens, W-Series remotes, and TCP/UDP standard
- Lua scripting support standard
- Third-party control via software modules
- Dual, redundant, hot swappable power supplies
- 500 GB media storage
Expand Your Expertise
Introduction to Cognio™ Platform
Course
Ready to learn how the C100 Smart Signal Processor Server integrates into the Cognio platform?
Intro to Cognio™ Platform
Webinar
Unlock the full potential of your AV systems with the Cognio Platform. In this introductory session, you’ll get a guided tour of the platform’s capabilities and its architecture. Whether you're new to Cognio or looking to understand how it fits into your workflow, this webinar will give you a clear overview of what Cognio can do for you.
Download the Software to Manage C100
DesignOps software
Performance and Processing
- Advanced, high-quality audio signal processing
- Software-based system running on a standard processor
Software upgrades to increase channel counts
I/O Capabilities
- 256 × 256 Dante IO
- 64 channels of AEC
- 32 media playback channels
8 media record channels
Control and Monitoring
- An embedded web server provides third party and personal device browser-based control
- Extensive control options via COGNO Design Ops control screens, TC-Series touchscreens, W-Series remotes, personal devices, and TCP/UDP
- Third-party control via software modules
- Lua scripting support included
| Models | P/N |
| C100 | |
| Dante 128 x 128 Channel Software Upgrade | 25-0001 |
| AEC 32 Channel Upgrade | 25-0002 |
| Media Playback 32 Channel Upgrade | 25-0003 |
| Media Playback 96 Channel Upgrade | 25-0004 |
| Specification | Detail | |
| System Specifications | Platform | HPE ProLiant DL20 Gen11 |
| Sampling Rate | 96/48 kHz | |
| Ethernet Dante Inputs | 2x RJ45 1 Gbit/Sec | |
| Ethernet Control Inputs | 1x RJ45 1 Gbit/Sec | |
| Ethernet HPE ILO (Integrated Lights Out) | 1x RJ45 1 Gbit/Sec | |
| System Drive | 500 GB SSD | |
| Media Drive | 500 GB SSD | |
| Base Configuration | Dante Channels | 256 x 256 |
| AEC Channels | 64 @ 256 ms tail length | |
| Playback Channels | 32 | |
| Record Channels | 8 | |
| AV Remote Monitoring | Symetrix AV-Ops Center | |
| IT Device Management | HPE ILO | |
| Software Upgrade Options | Dante 128x128 Channel Upgrade | Upgrade the built-in Dante channels from 256x256 to 384x384 |
| AEC 32 Channel Upgrade | Upgrade the built-in AEC channels from 64 to 96 via AV-Ops Center | |
| Playback 32 Channel Upgrade | Upgrade the built-in playback channels from 32 to 64 via AV-Ops Center | |
| Playback 96 Channel Upgrade | Upgrade the built in playback channels from 32 to 128via AV-Ops Center | |
| Mechanical Specifications | Form Factor | 1U Rack |
| Dimensions | 1.70 x 17.11 x 15.05 in (4.32 x 43.46 x 38.22 cm) [without rack rails] | |
| Shipping Weight | 26.46 lb (12 kg) | |
| Included Rack Rail Kit | HPE Easy Install Rail 12 Kit | |
| Power | Power Supplies | Dual Redundant Hot Swappable |
| Rated Line Voltage | 100 to 120 VAC; 200 to 240 VAC | |
| Operating Environment | Standard Operating Temperature | 10° to 35°C (50° to 95°F) at sea level with an altitude derating 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. The maximum rate of change is 20°C/hr (36°F/hr). |
| Standard Operating Temperature | The upper temperature limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating above 30°C (86°F). | |
| Standard Operating Relative Humidity | 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. | |
| Non-operating Temperature Range | -30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr). | |
| Non-operating Relative Humidity | 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
| Additional Specifications | ||
| Part Numbers | C100 Processor Server |
